FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chevy Truck
>>
2012
>>
Traverse AWD V6-3.6L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Seat Belt Buckle
>>
Service and Repair
>>

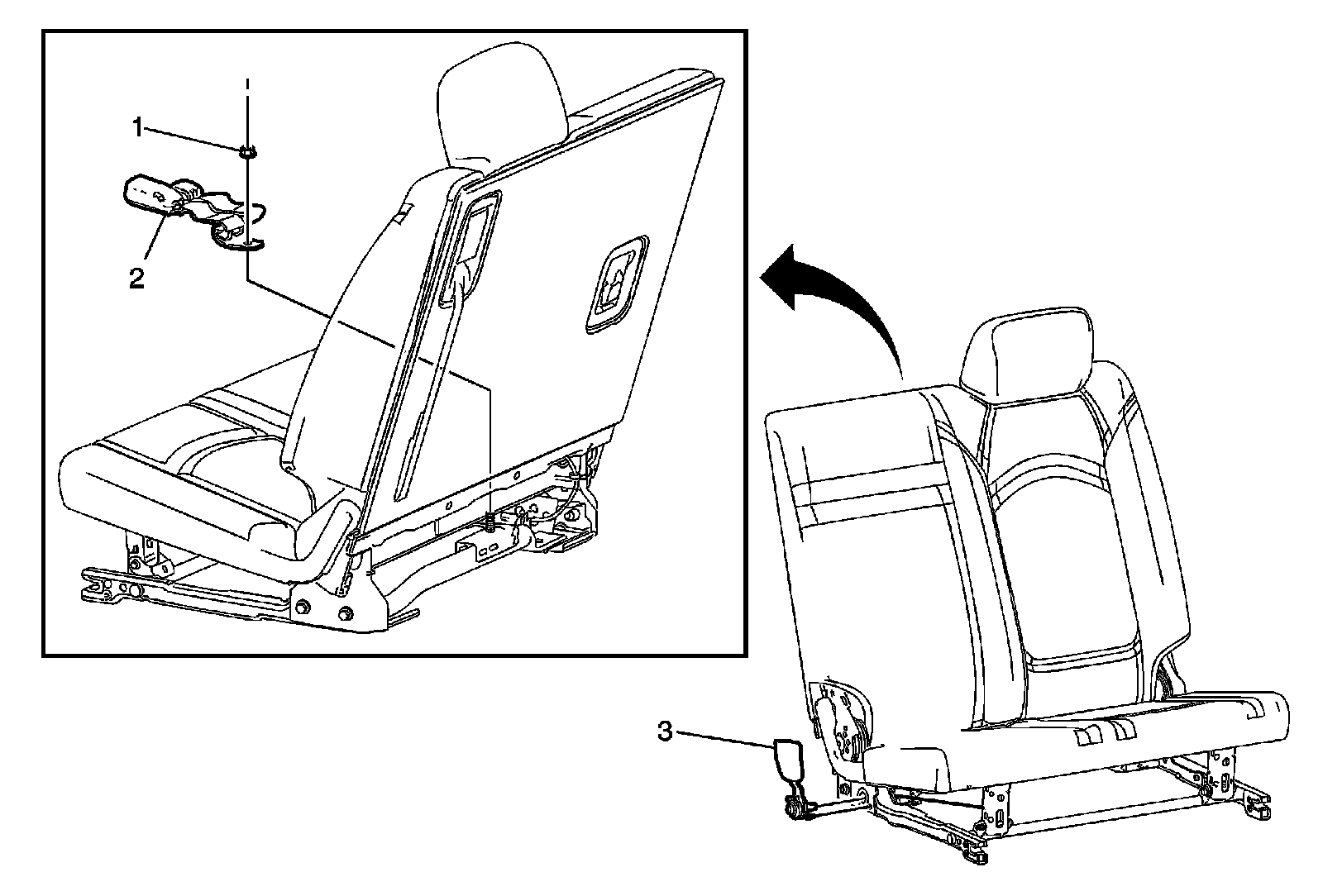

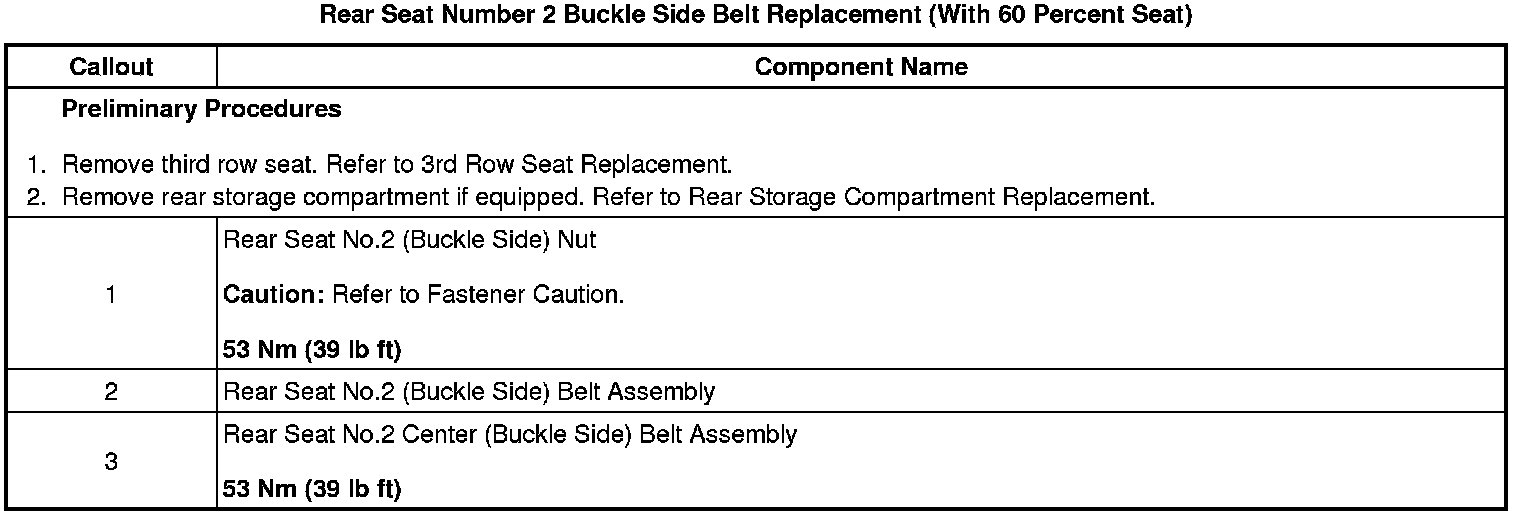

Rear Seat Number 2 Buckle Side Belt Replacement (With 60 Percent Seat)
Rear Seat Number 2 Buckle Side Belt Replacement (With 60 Percent Seat)
Rear Seat Number 2 Buckle Side Belt Replacement (With 60 Percent Seat)
