Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Trunk / Liftgate Control Module >> Service and Repair

Power Trunk / Liftgate Control Module: Service and Repair

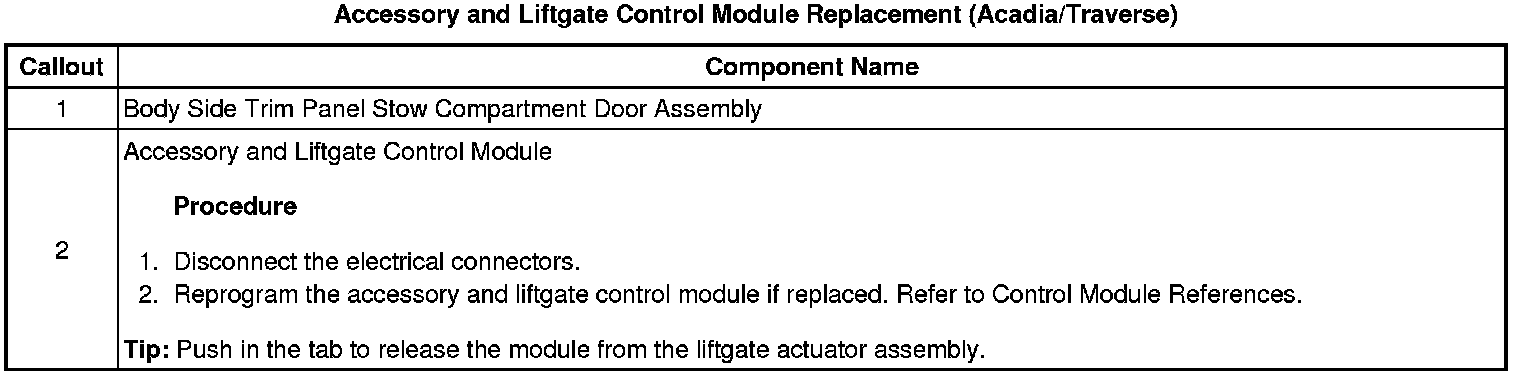

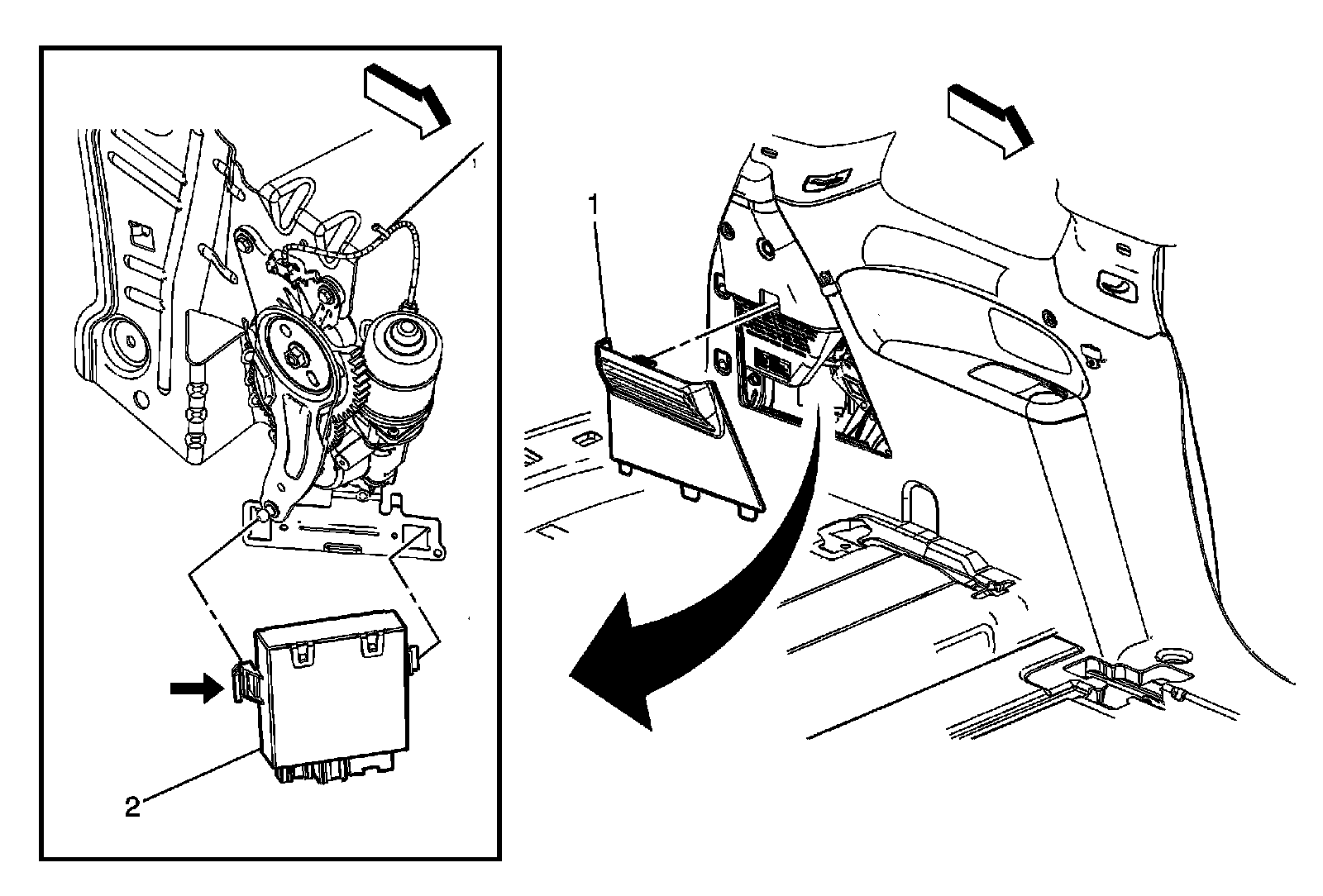

Accessory and Liftgate Control Module Replacement (Acadia/Traverse)
