Positive Crankcase Ventilation Tube Replacement - Rear

Positive Crankcase Ventilation Tube Replacement - Rear

Removal Procedure





1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement Fuel Injector Sight Shield Replacement.

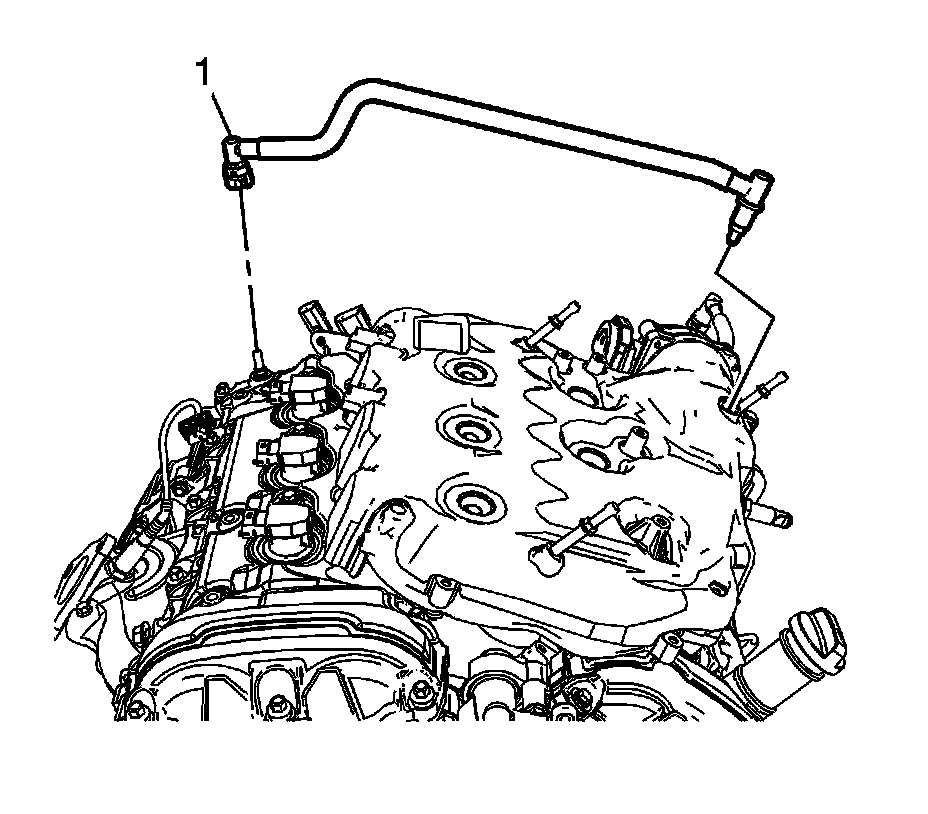

2. Disconnect the positive crankcase ventilation (PCV) fresh air pipe (1) from the intake manifold.

3. Disconnect the PCV air pipe from the camshaft cover.

Installation Procedure





1. Connect the PCV air pipe (1) to the camshaft cover valve.

2. Connect the PCV air pipe to the intake manifold.

3. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement Fuel Injector Sight Shield Replacement.
