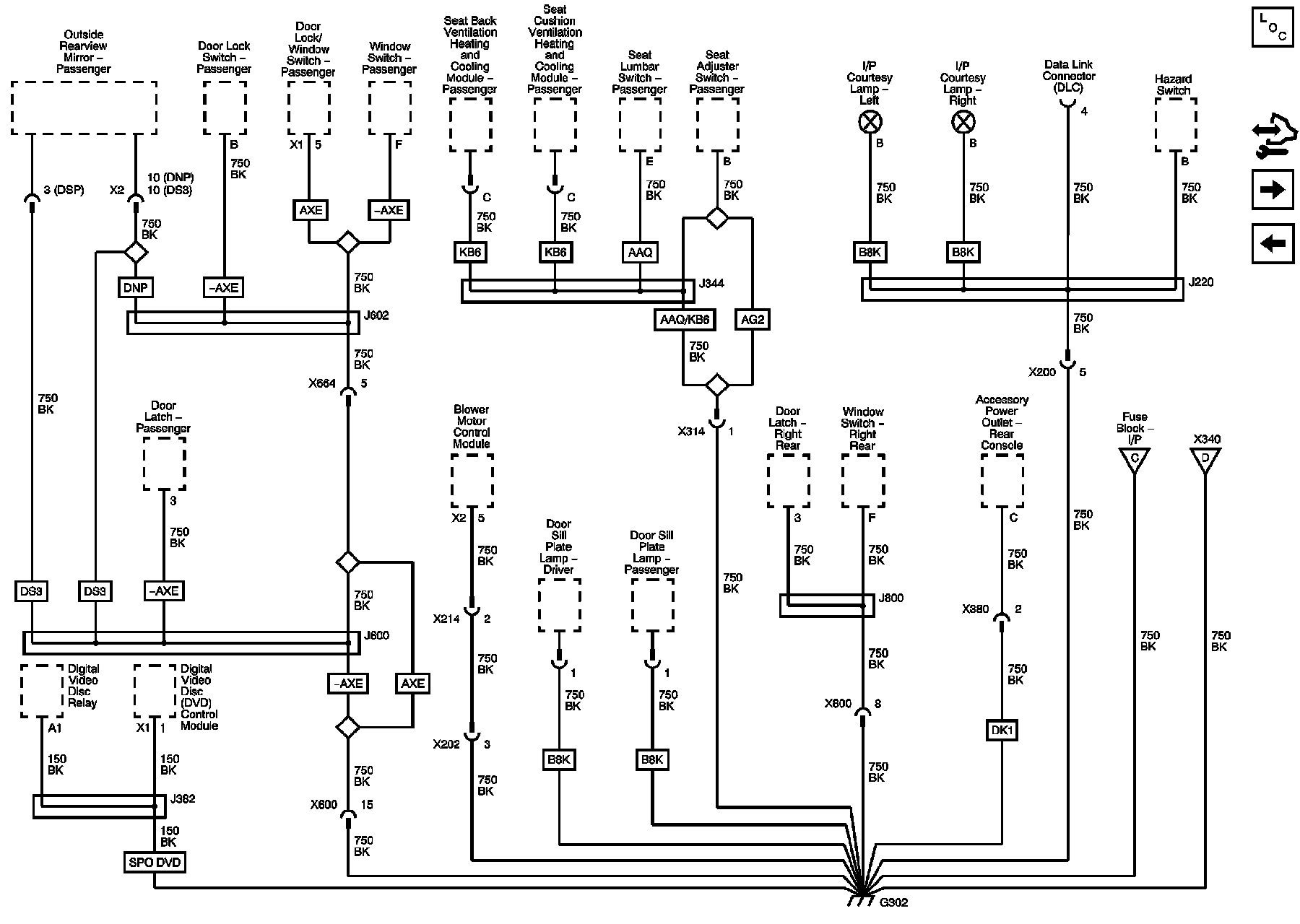

G302 (1 of 3)




Ground Distribution Schematics

G302 (1 of 3)





Master Electrical Component List
Control Module References
G301 (2 of 2)
G302 (2 of 3)
G302 (3 of 3)
