Driver Seat Harness Routing (without AG3)




Harness Routing Views

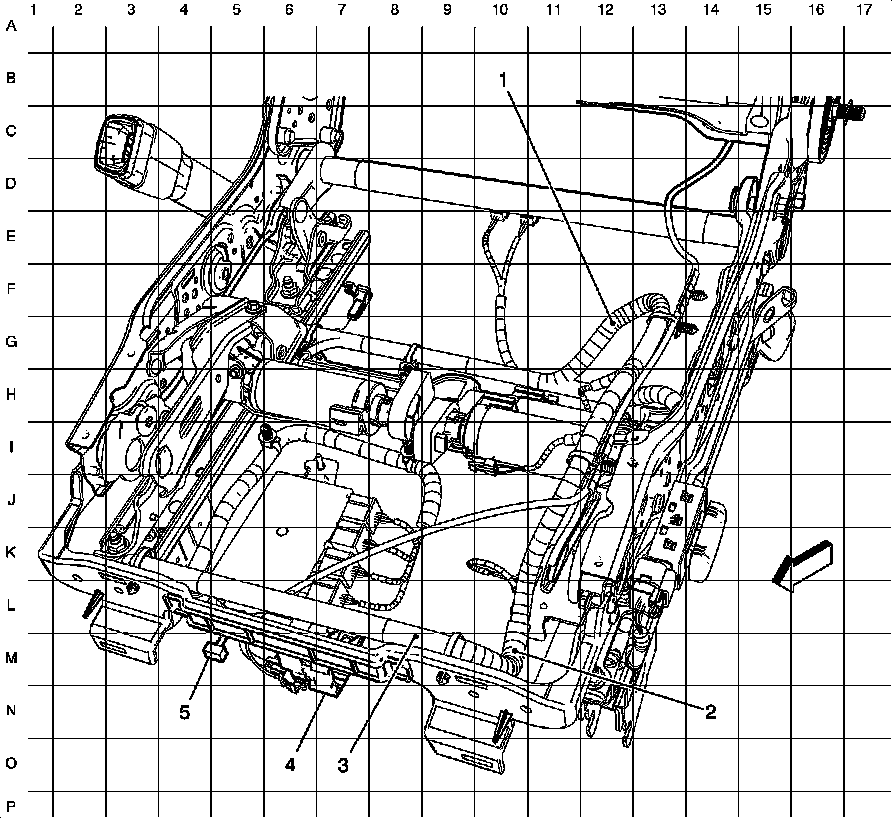

Driver Seat Harness Routing (without AG3)





1 - J355 (AH5)

2 - J353 (KA1)

3 - J357 (KA1)

4 - X315

5 - X333
