Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Bulb >> Service and Repair >> Headlamp Capsule Replacement (Enclave TVC TSH)

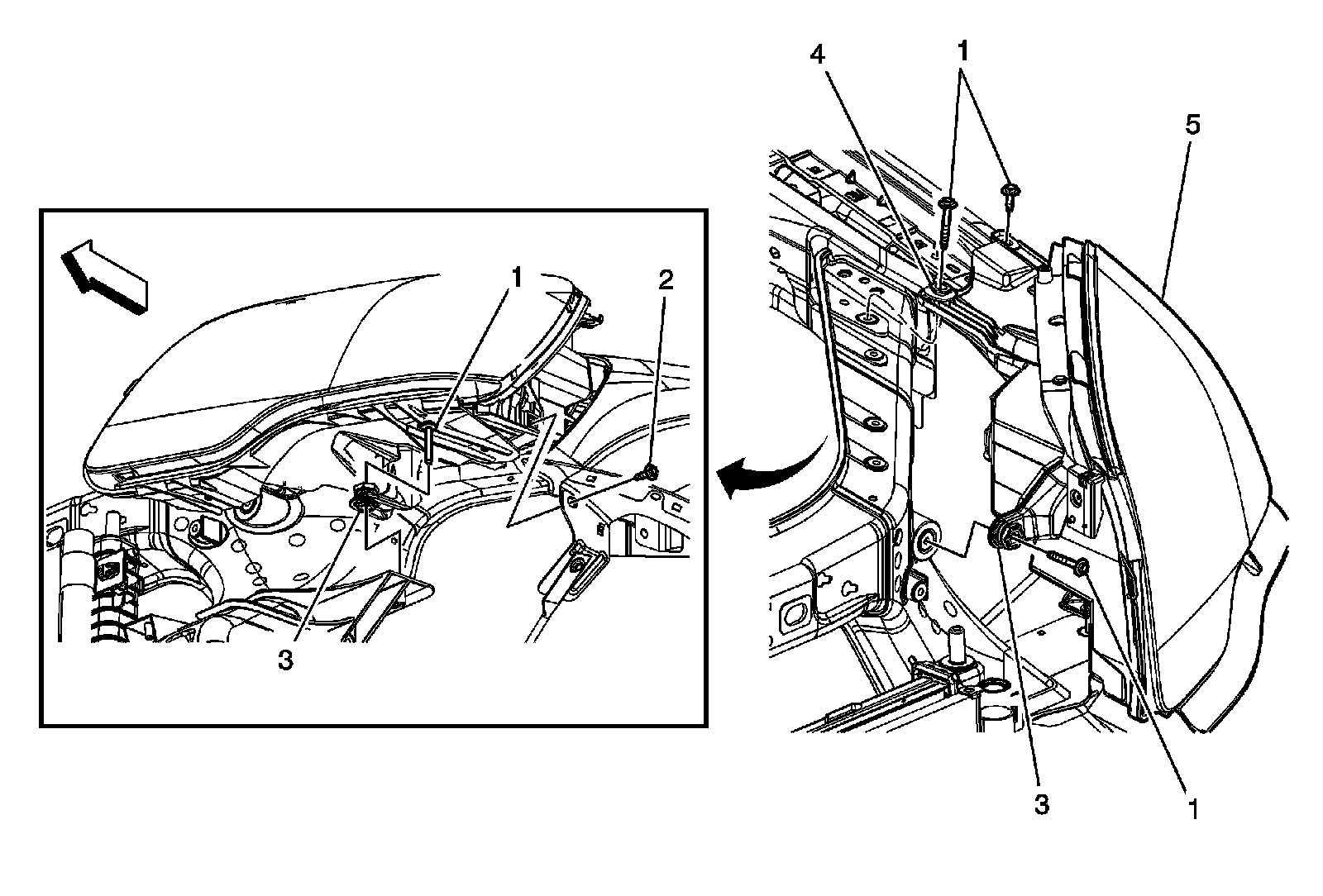

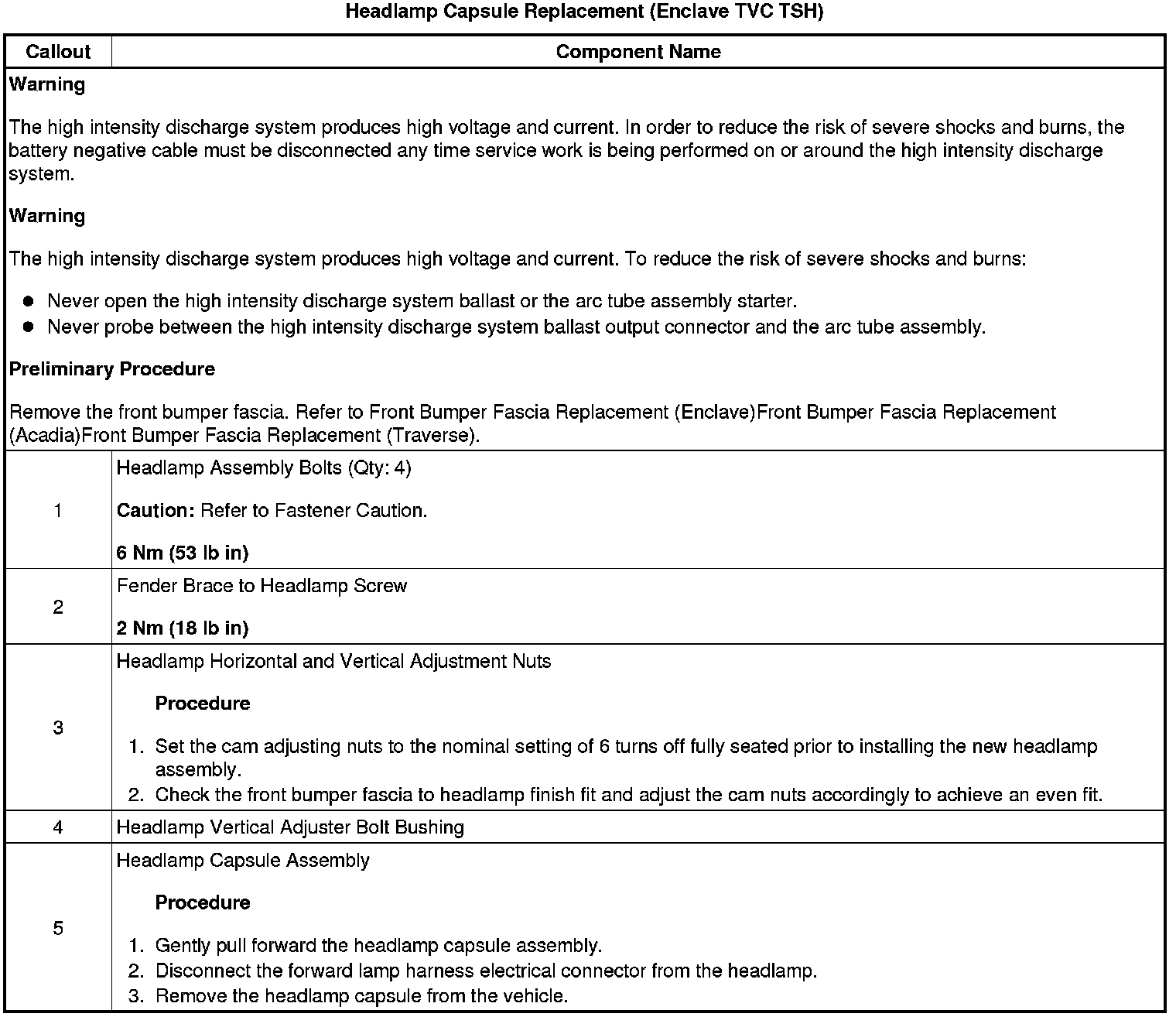

Headlamp Capsule Replacement (Enclave TVC TSH)

Headlamp Capsule Replacement (Enclave TVC TSH)
