Fog Lamp - Right Front (W49 with T96)
Fog Lamp - Right Front (W49 with T96)

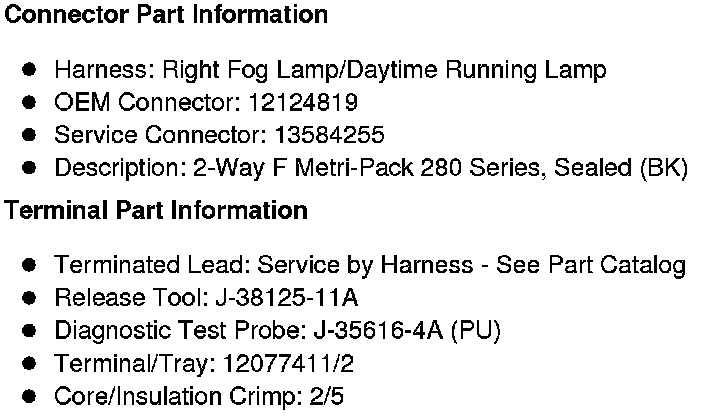

Component Connector End Views

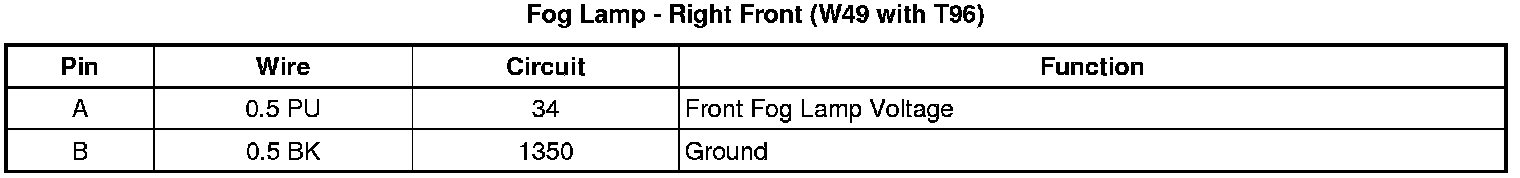

Fog Lamp - Right Front (W49 with T96)
