Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Relays and Modules - HVAC >> Control Module HVAC >> Service and Repair >> Auxiliary Blower Control Module Replacement

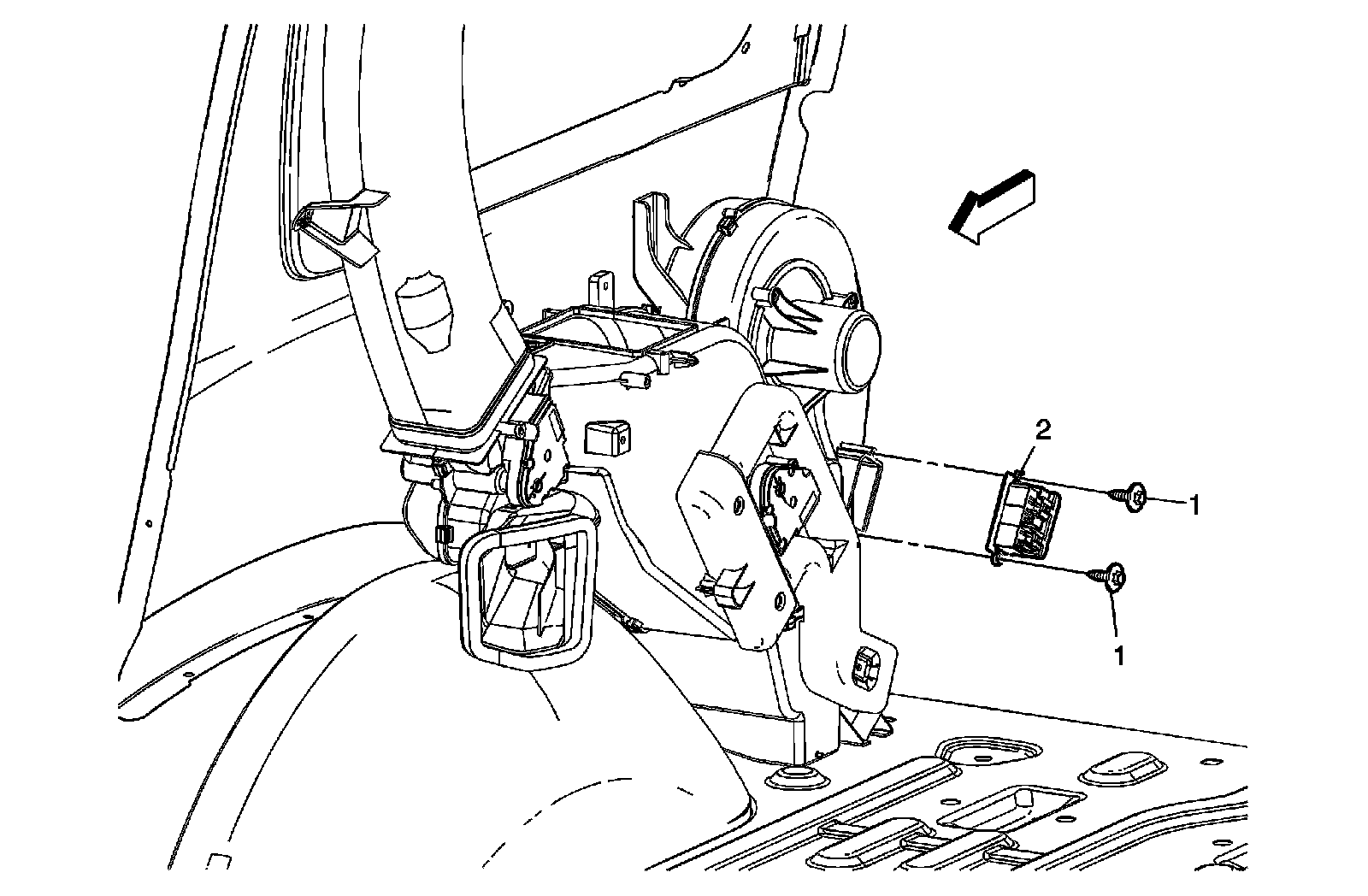

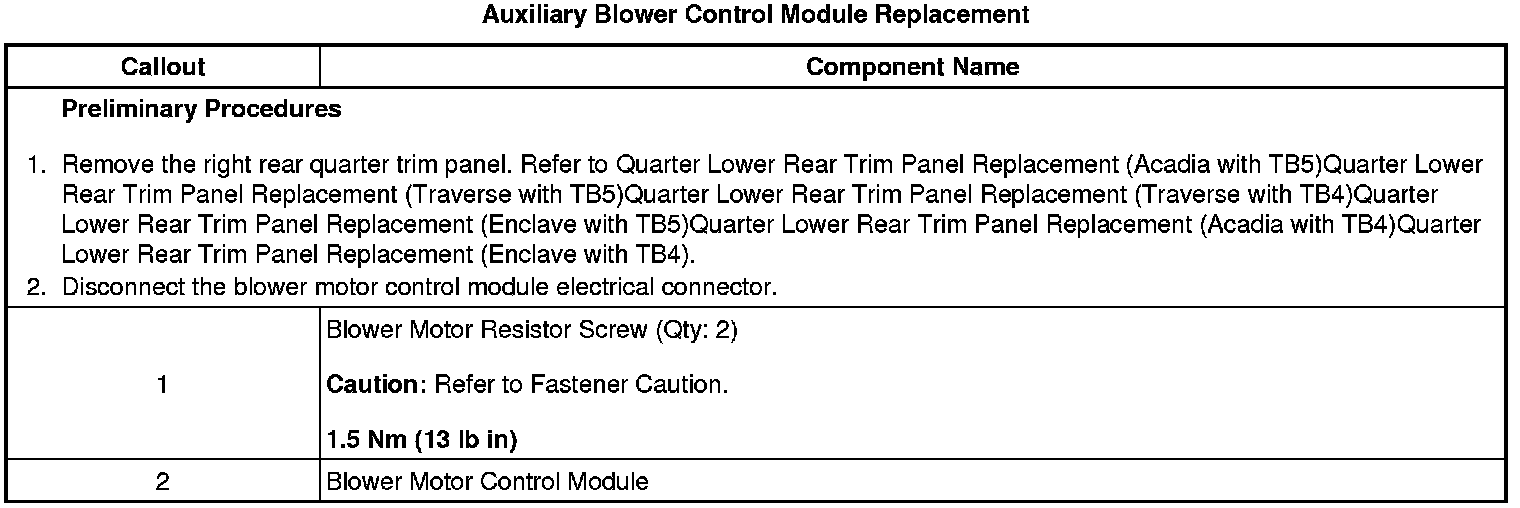

Auxiliary Blower Control Module Replacement




Auxiliary Blower Control Module Replacement
