Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Duct >> Service and Repair >> Removal and Replacement >> Floor Air Outlet Duct Replacement - Right Side

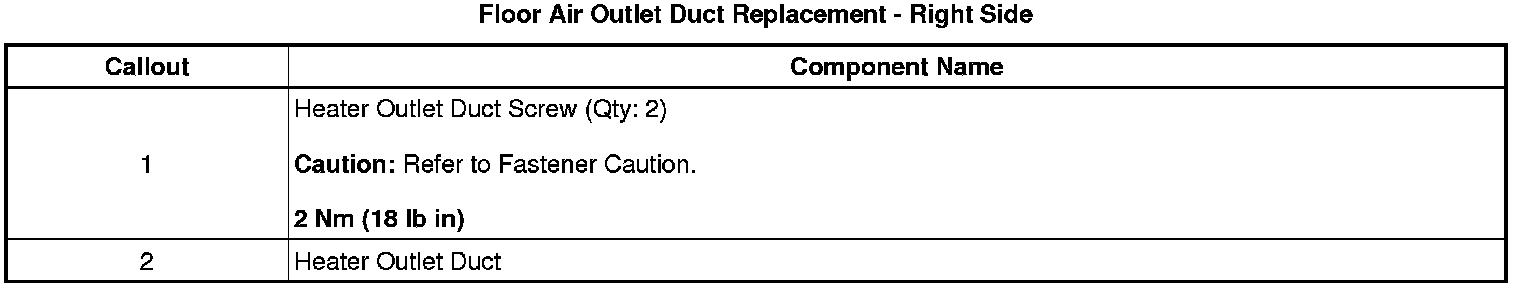

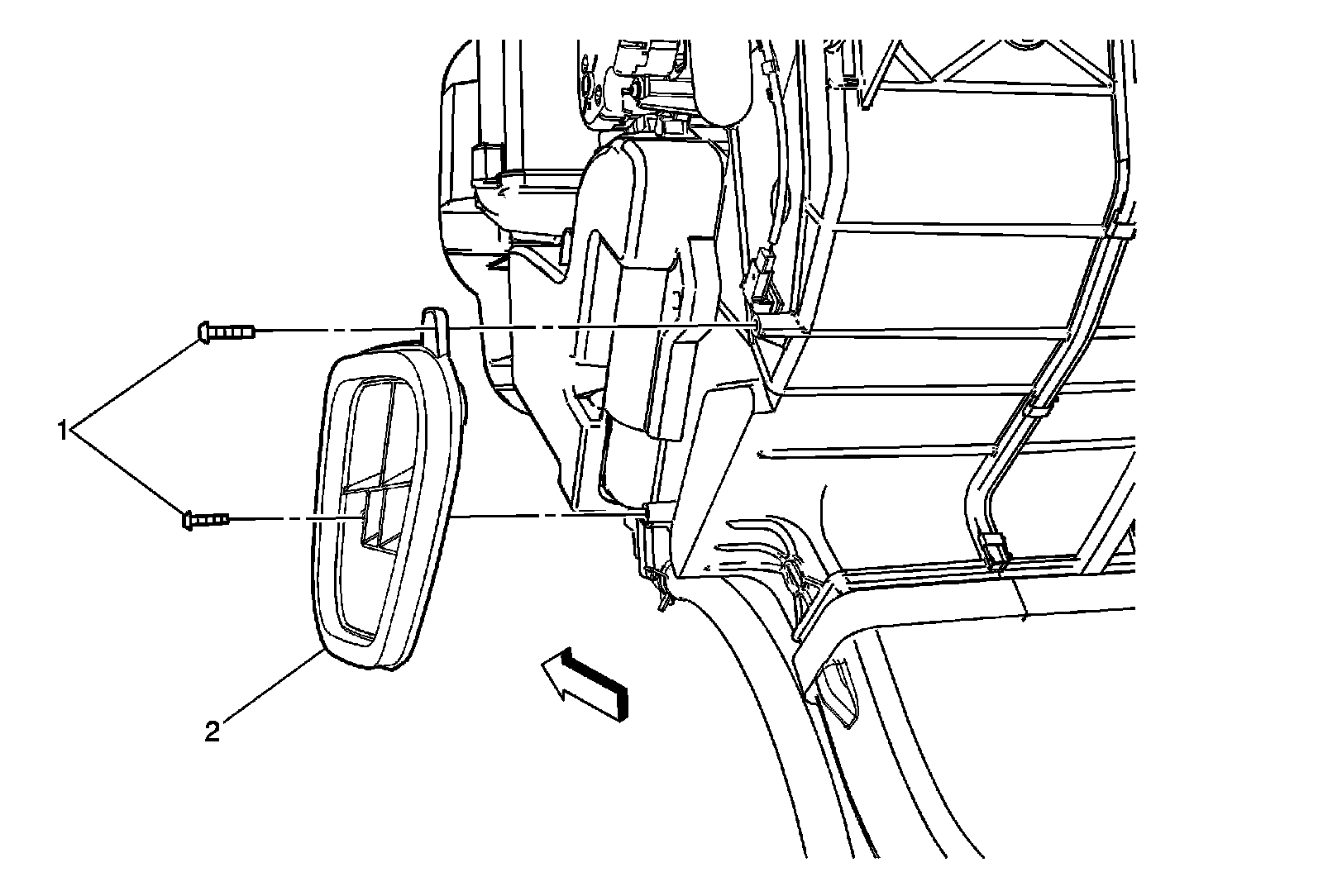

Floor Air Outlet Duct Replacement - Right Side




Floor Air Outlet Duct Replacement - Right Side
