Exhaust Manifold Heat Shield Replacement - Right Side

Exhaust Manifold Heat Shield Replacement - Right Side

Removal Procedure

Warning:
Refer to Protective Goggles and Glove Warning Protective Goggles and Glove Warning.


Warning:
Refer to Exhaust Service Warning Service Precautions.






1. Remove the heated oxygen sensor (HO2S). Refer to Heated Oxygen Sensor Replacement - Bank 1 Sensor 1 Heated Oxygen Sensor Replacement - Bank 1 Sensor 1.

2. Remove the exhaust flexible pipe. Refer to Exhaust Flexible Pipe Replacement Service and Repair.

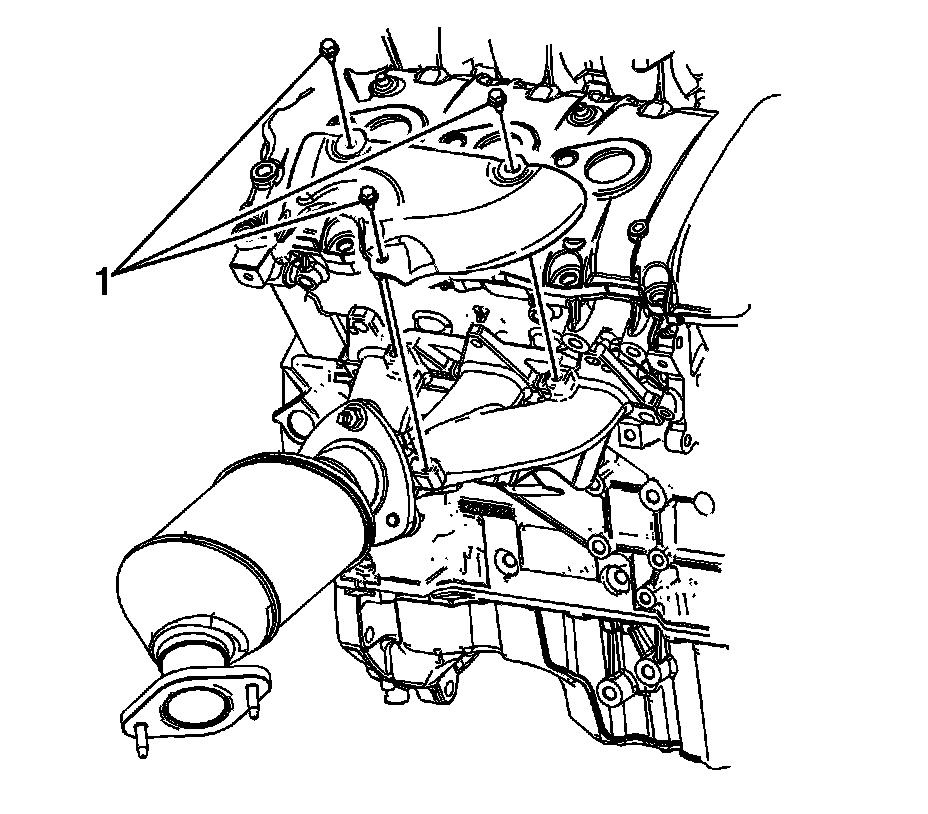

3. Remove the exhaust manifold heat shield bolts (1).

4. Remove the exhaust manifold heat shield.

Installation Procedure





1. Install the exhaust manifold heat shield.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the exhaust manifold heat shield bolts (1) and tighten to 10 Nm (89 lb in).

3. Install the exhaust flexible pipe. Refer to Exhaust Flexible Pipe Replacement Service and Repair.

4. Install the HO2S. Refer to Heated Oxygen Sensor Replacement - Bank 1 Sensor 1 Heated Oxygen Sensor Replacement - Bank 1 Sensor 1.
