Exhaust Manifold Heat Shield Replacement - Left Side

Exhaust Manifold Heat Shield Replacement - Left Side

Removal Procedure

Warning:
Refer to Protective Goggles and Glove Warning Protective Goggles and Glove Warning.


Warning:
Refer to Exhaust Service Warning Service Precautions.






1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement Fuel Injector Sight Shield Replacement.

2. Disconnect the engine wiring harness electrical connector (2) from the heated oxygen sensor (HO2S) electrical connector (3).

3. Remove the HO2S electrical connector retainer from the engine wiring harness clip (1).

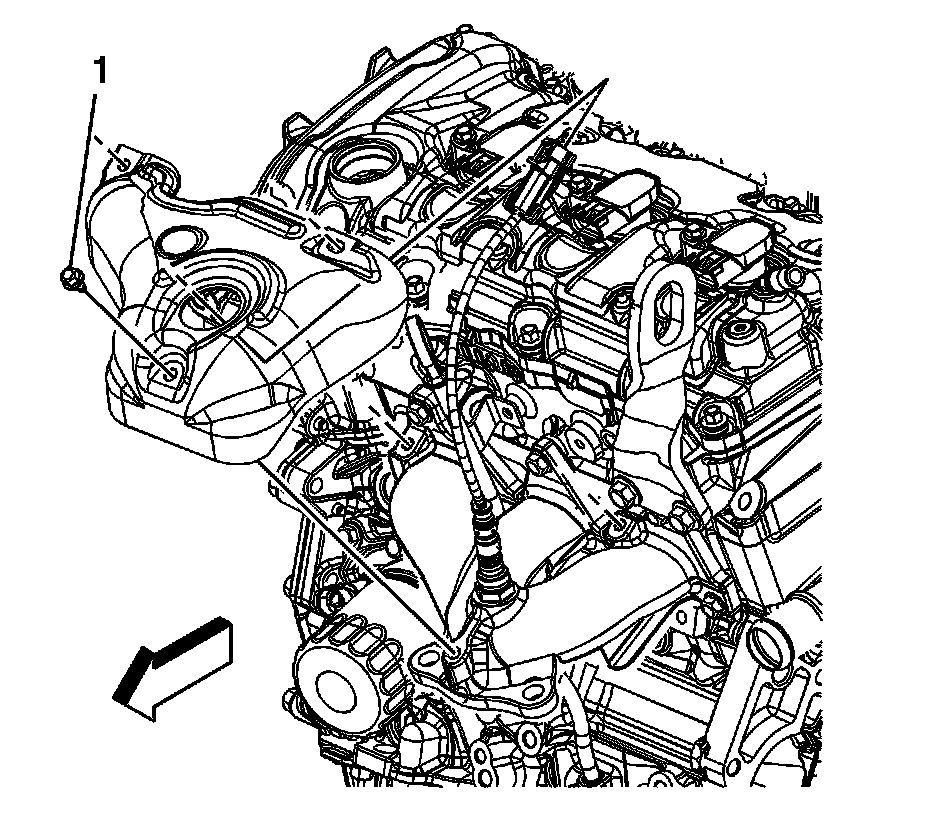

4. Remove the exhaust manifold heat shield bolts (1).

5. Remove the exhaust manifold heat shield, sliding the shield up over the HO2S pigtail.

Installation Procedure





1. Install the exhaust manifold heat shield, sliding the shield down over the HO2S pigtail.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install the exhaust manifold heat shield bolts (1) and tighten to 10 Nm (89 lb in).





3. Connect the engine wiring harness electrical connector (2) to the HO2S electrical connector (3).

4. Install the HO2S electrical connector retainer to the wiring harness clip (1).

5. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement Fuel Injector Sight Shield Replacement.
