Secondary Camshaft Intermediate Drive Chain Replacement - Right Side

Secondary Camshaft Intermediate Drive Chain Replacement - Right Side

Removal Procedure

1. Remove the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.

2. Remove the spark plugs in order to ease crankshaft/engine rotation. Refer to Spark Plug Replacement Service and Repair.

3. Remove the right bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Removal - Right Side 16. Secondary Timing Chain Tensioner Removal - Right Side.

4. Remove the right bank secondary camshaft drive chain shoe. Refer to Secondary Camshaft Drive Chain Shoe Removal - Right Side 17. Secondary Camshaft Drive Chain Shoe Removal - Right Side.

5. Remove the right bank secondary camshaft drive chain guide. Refer to Secondary Timing Chain Guide Removal - Right Side 18. Secondary Timing Chain Guide Removal - Right Side.

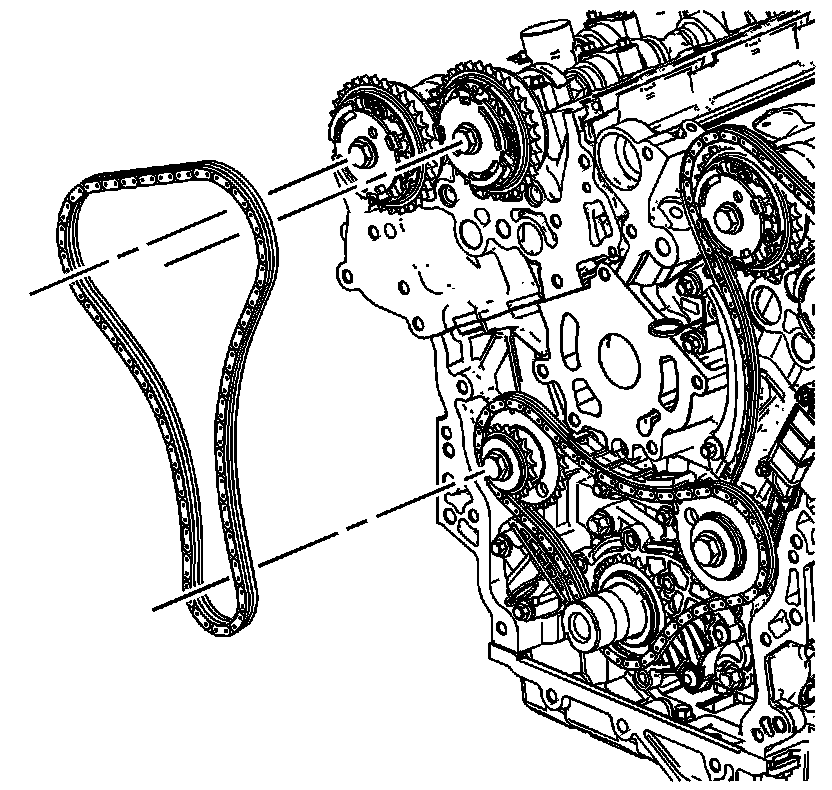

6. Remove the right bank secondary camshaft drive chain. Refer to Secondary Camshaft Intermediate Drive Chain Removal - Right Side 19. Secondary Camshaft Intermediate Drive Chain Removal - Right Side.

Installation Procedure

1. Ensure the stage 1 camshaft timing is correct. Refer to Setting Camshaft Timing Service and Repair.





2. Install the right bank secondary camshaft drive chain. Refer to Secondary Camshaft Intermediate Drive Chain Installation - Right Side 122. Secondary Camshaft Intermediate Drive Chain Installation - Right Side.

3. Install the right bank secondary camshaft drive chain guide. Refer to Secondary Timing Chain Guide Installation - Right Side 123. Secondary Timing Chain Guide Installation - Right Side.

4. Install the right bank secondary camshaft drive chain shoe. Refer to Secondary Camshaft Drive Chain Shoe Installation - Right Side 124. Secondary Camshaft Drive Chain Shoe Installation - Right Side.

5. Install the right bank secondary camshaft drive chain tensioner. Refer to Secondary Timing Chain Tensioner Installation - Right Side 125. Secondary Timing Chain Tensioner Installation - Right Side.

6. Install the spark plugs. Refer to Spark Plug Replacement Service and Repair.

7. Install the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.
