45. Oil Pan Removal

Oil Pan Removal

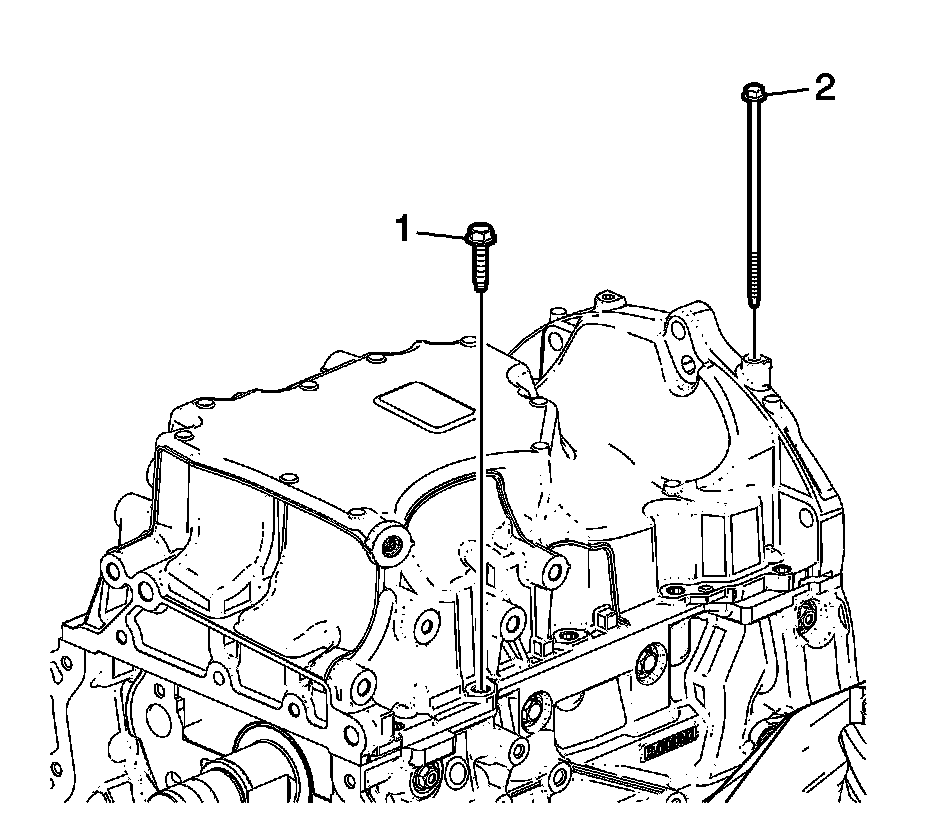

1. Remove the oil pan bolts (1) and (2).

2. Using the pry points located at the edge of the oil pan separate the RTV sealant.

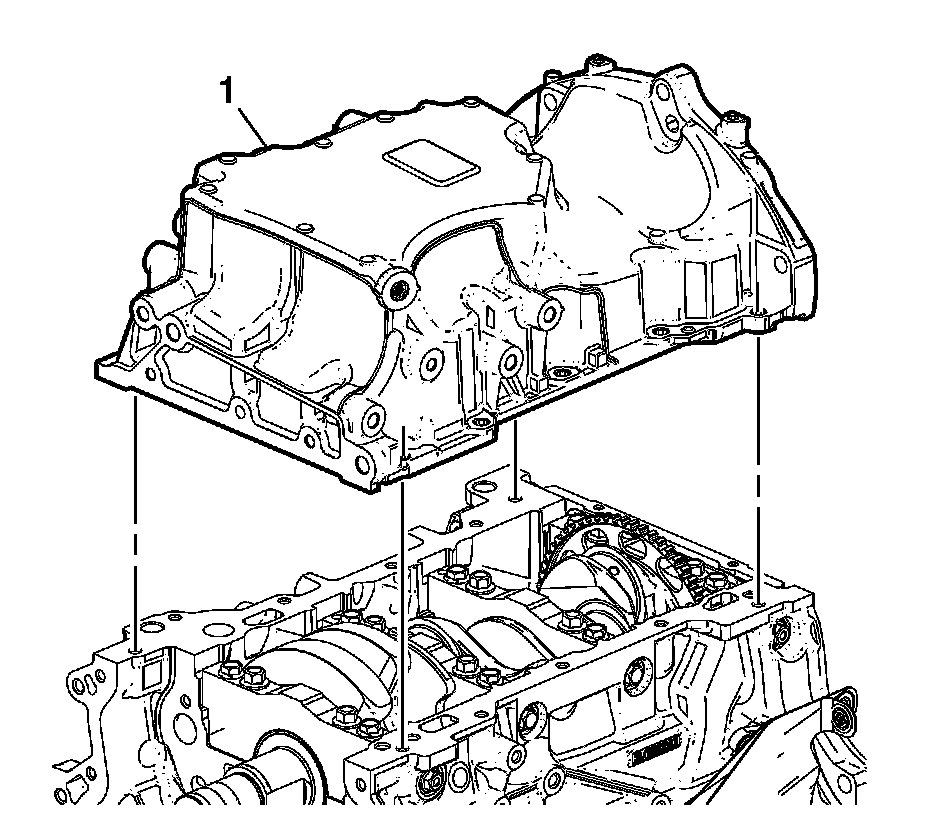

3. Remove the oil pan (1) from the block.
