26. Secondary Camshaft Drive Chain Shoe Removal - Left Side




Secondary Camshaft Drive Chain Shoe Removal - Left Side

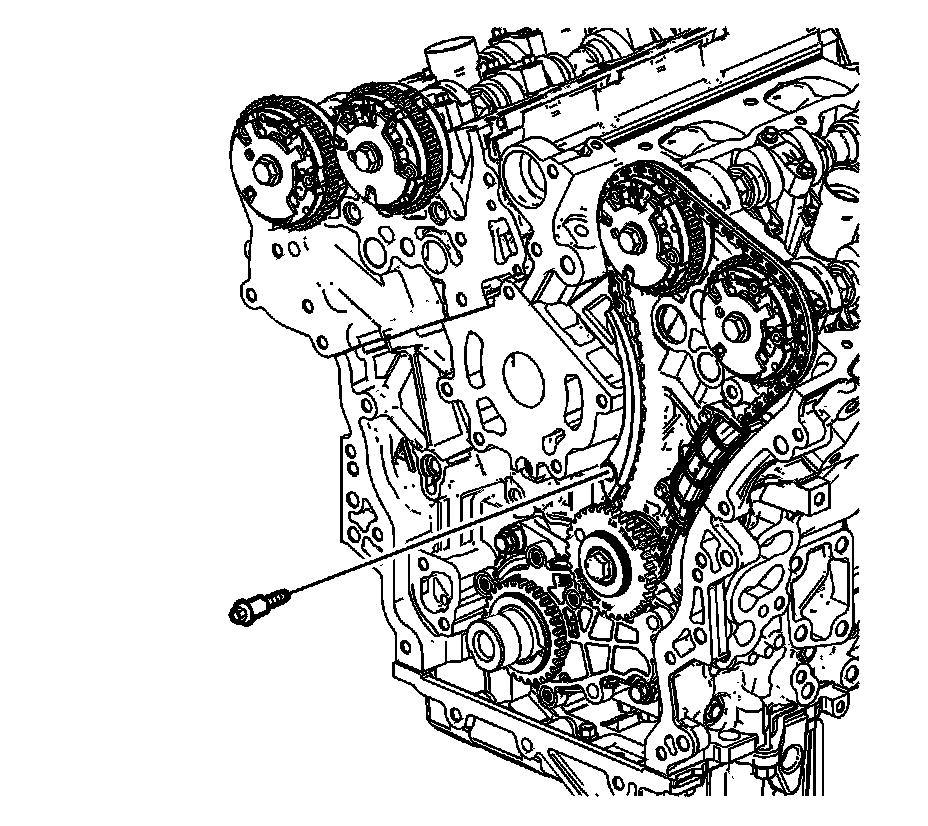

1. Remove the left secondary camshaft drive chain shoe bolt.

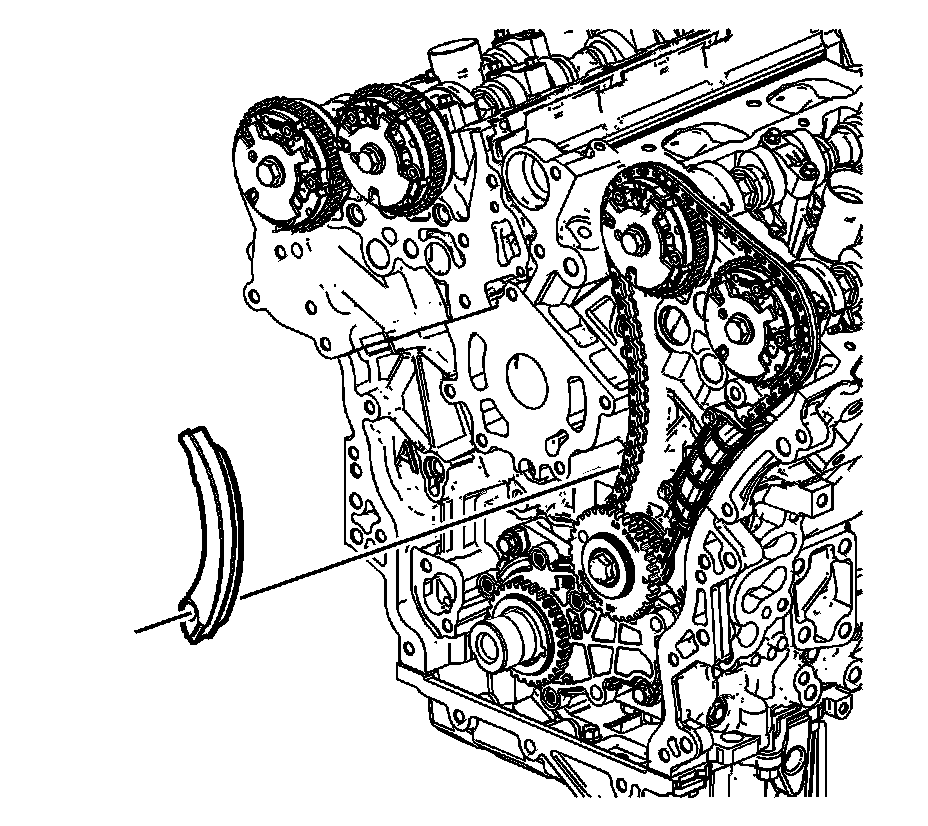

2. Remove the left secondary camshaft drive chain shoe.
