22. Primary Timing Chain Guide Removal - Lower

Primary Timing Chain Guide Removal - Lower

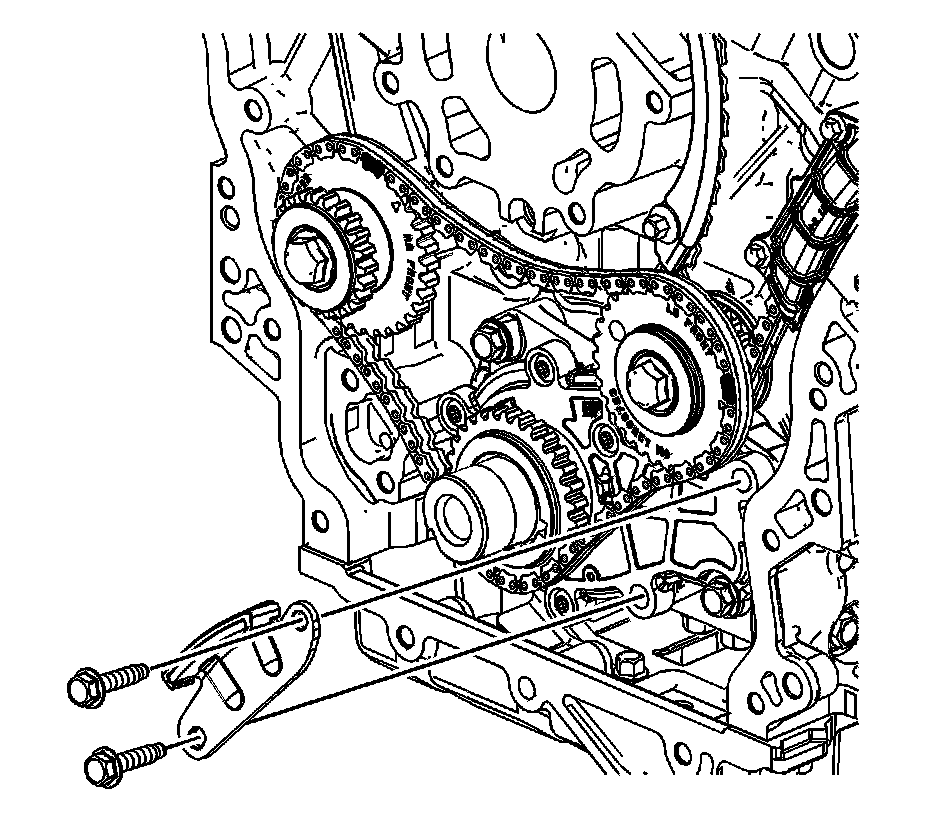

1. Remove the primary camshaft drive chain lower guide bolts.

2. Remove the primary camshaft drive chain lower guide.
