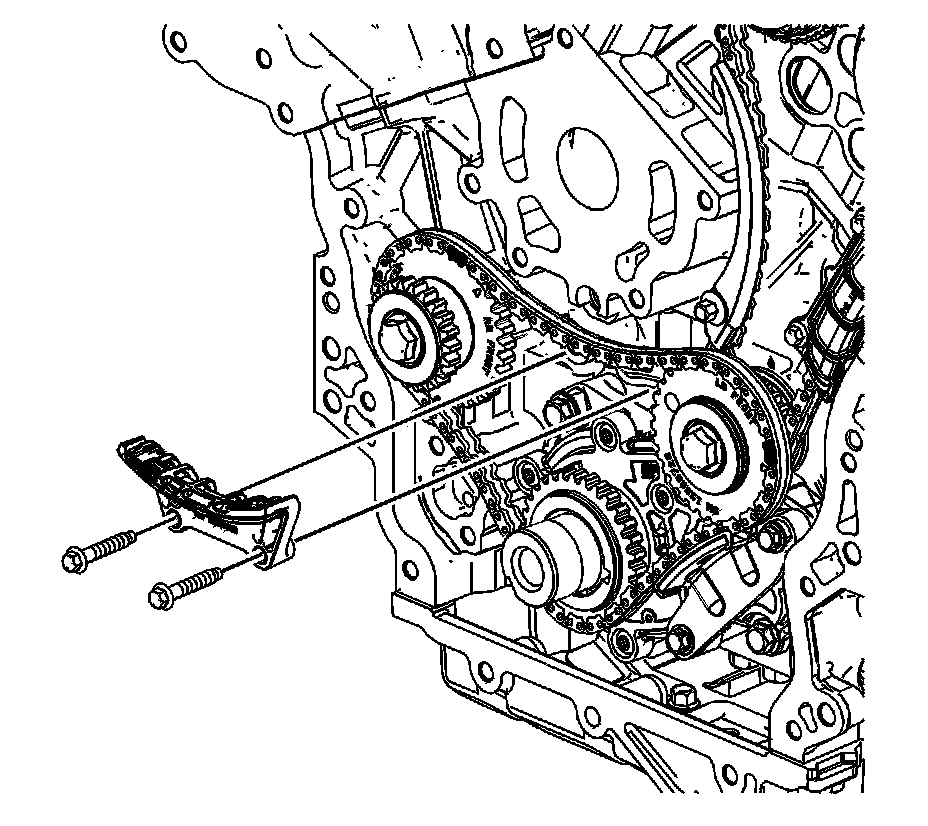

21. Primary Timing Chain Guide Removal - Upper

Primary Timing Chain Guide Removal - Upper





1. Remove the primary camshaft drive chain upper guide bolts.

2. Remove the primary camshaft drive chain upper guides.
