Front Crankshaft Seal: Service and Repair

Crankshaft Front Oil Seal Replacement

Special Tools

J 29184 - Oil Seal Installer

Removal Procedure




1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement Service and Repair.

2. Use a flat-bladed tool in order to remove the crankshaft oil seal. Use care not to damage the engine front cover or the crankshaft.

Installation Procedure





Important: Do not lubricate the crankshaft front oil seal or the crankshaft balancer sealing surfaces.

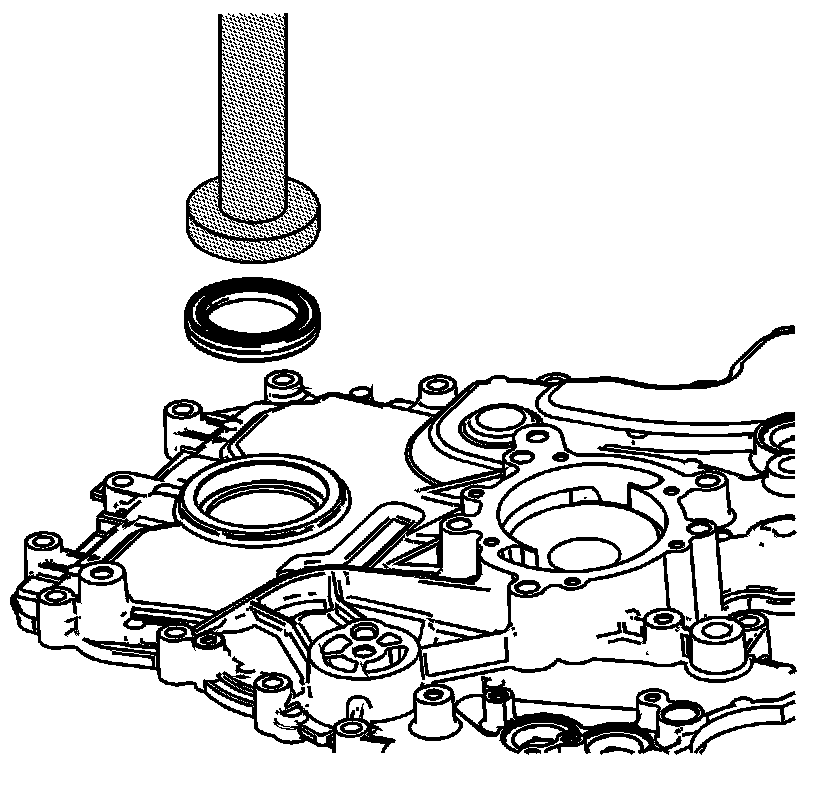

1. Use the J 29184 - oil seal installer or equivalent to install the crankshaft front oil seal.

2. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement Service and Repair.
