Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Drive Belts, Mounts, Brackets and Accessories >> Engine Mount >> Service and Repair >> Engine Rear Mount Bracket Replacement (Front Wheel Drive)

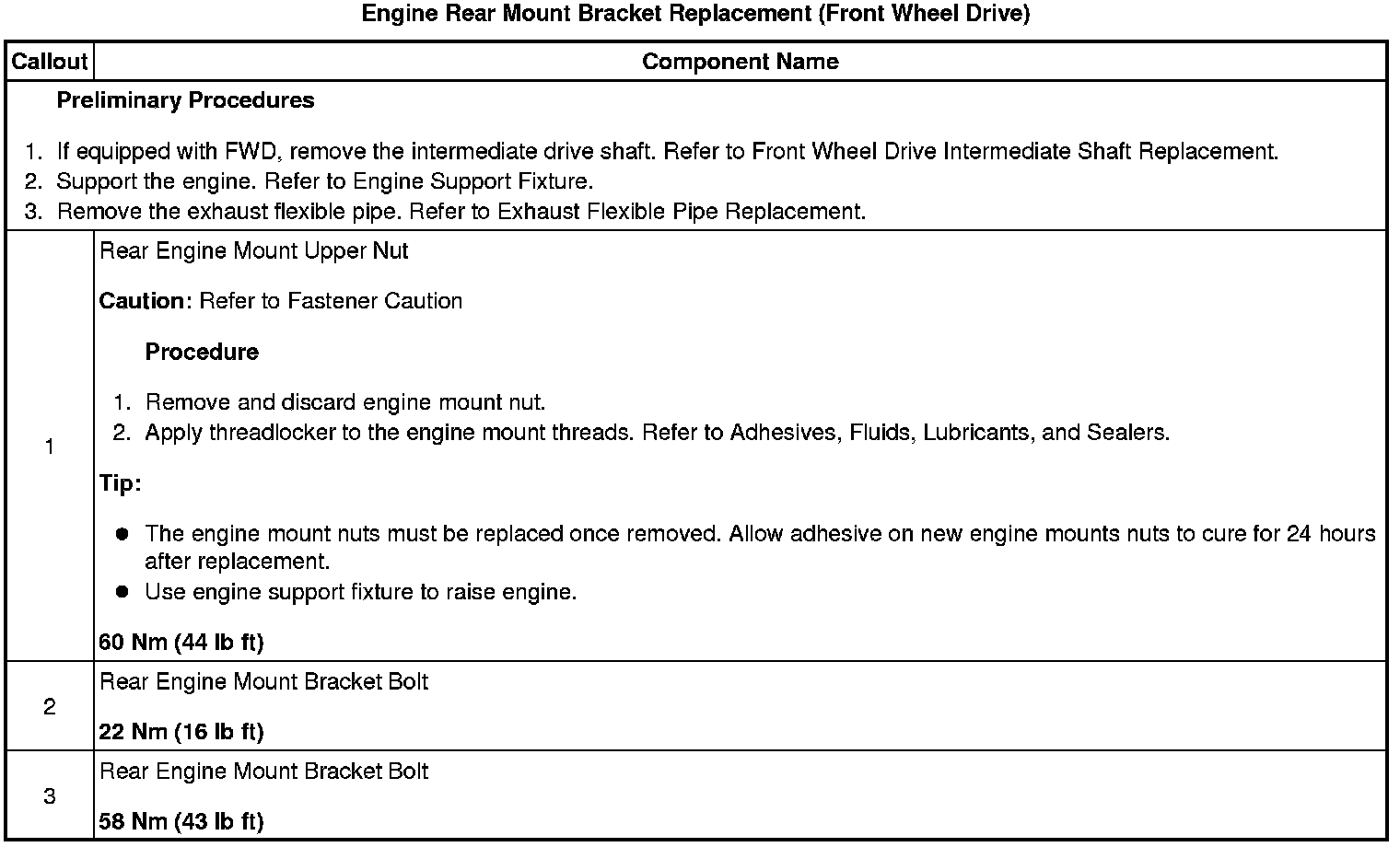

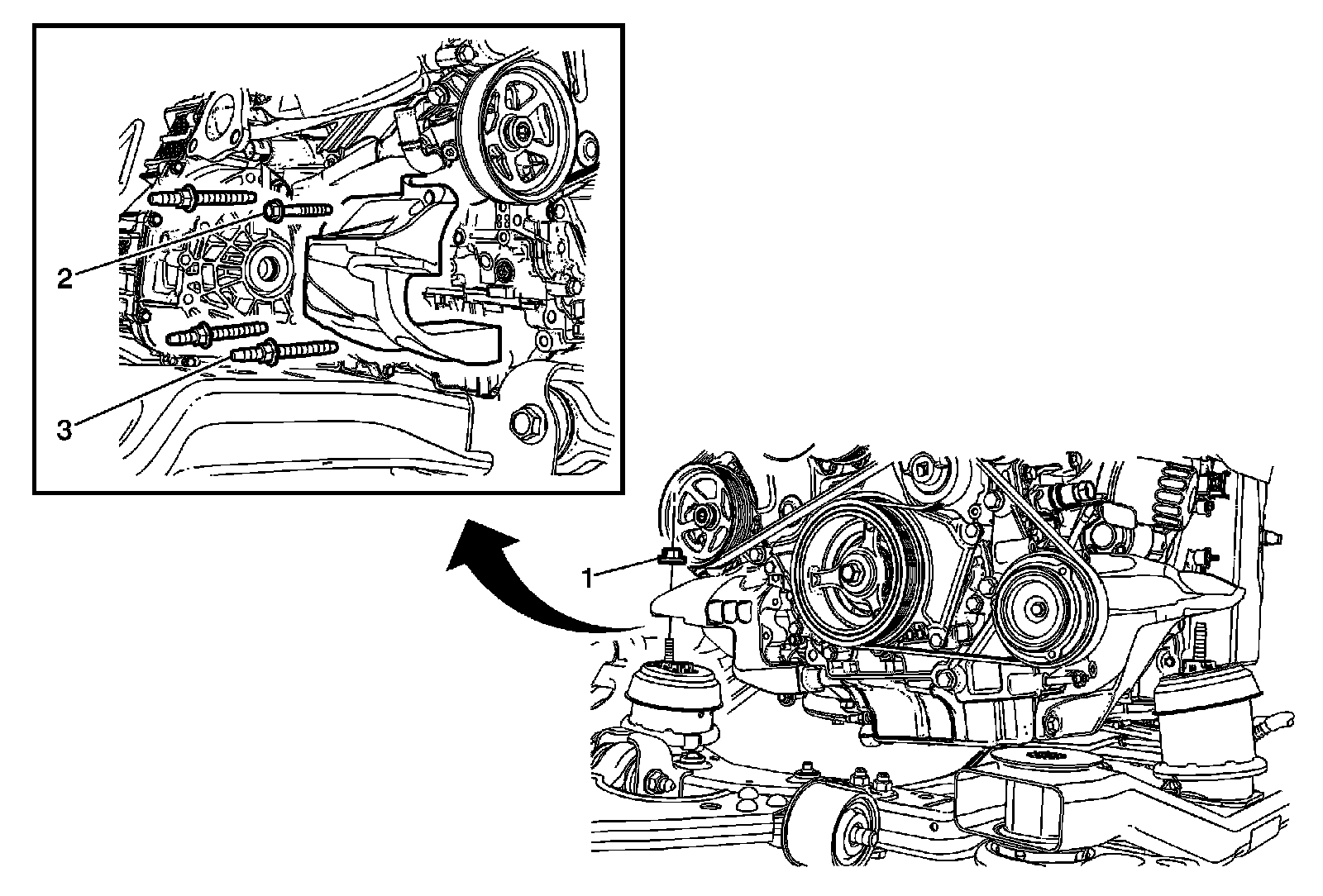

Engine Rear Mount Bracket Replacement (Front Wheel Drive)




Engine Rear Mount Bracket Replacement (Front Wheel Drive)
