Camshaft Cover Replacement - Right Side

Camshaft Cover Replacement - Right Side

Special Tools

EN 46101 - Spark Plug Tube Seal Guide

Removal Procedure

1. Remove the intake manifold. Refer to Intake Manifold Replacement Service and Repair.

2. Remove the right bank spark plugs. Refer to Spark Plug Replacement Service and Repair.

3. Unbolt the power steering reservoir and position aside. Refer to Power Steering Fluid Reservoir Replacement Power Steering Fluid Reservoir Replacement.

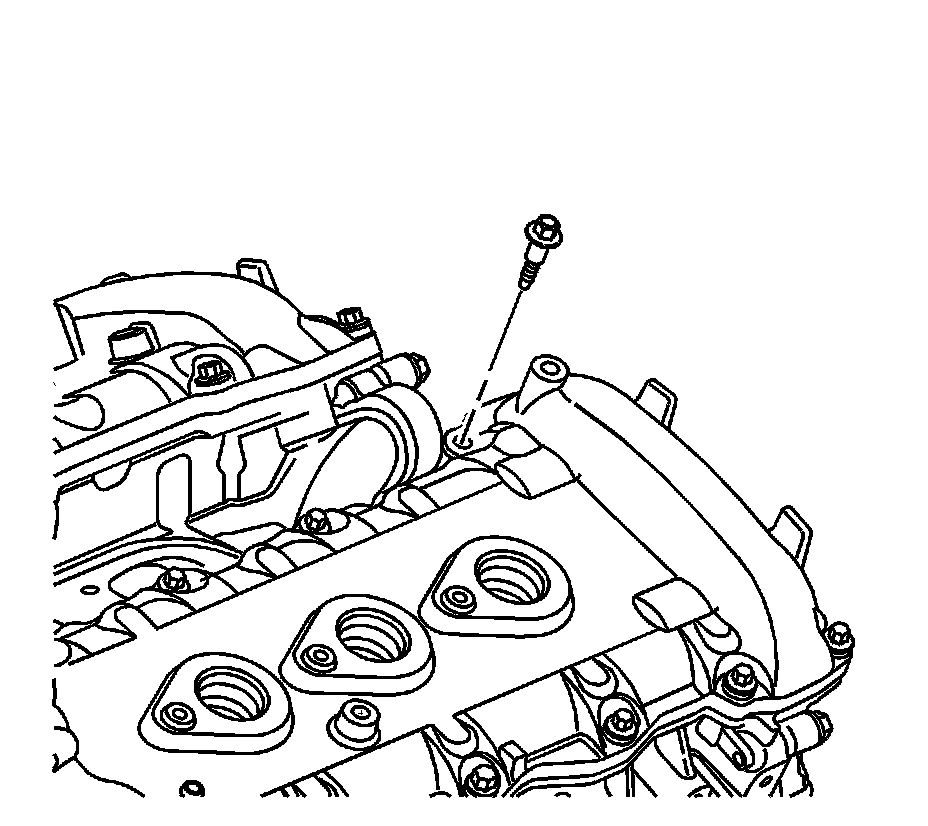

4. Remove the right camshaft cover bolts.

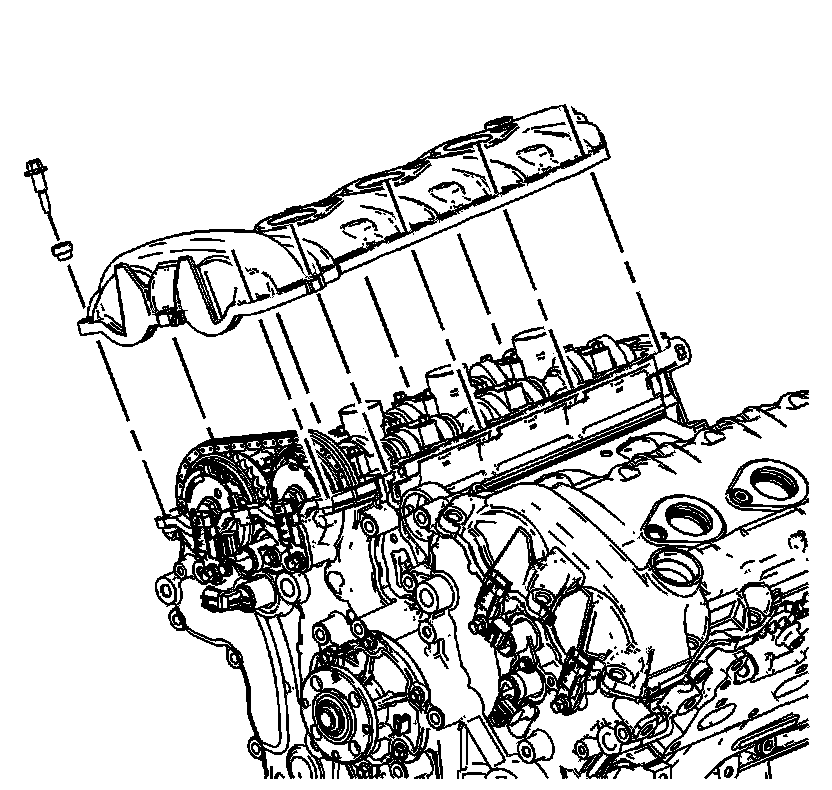

5. Remove the right camshaft cover from the right cylinder head.

6. Clean the mating surfaces of the cylinder head and the camshaft cover. Refer to Camshaft Cover Cleaning and Inspection (LLT) 81. Camshaft Cover Cleaning and Inspection.

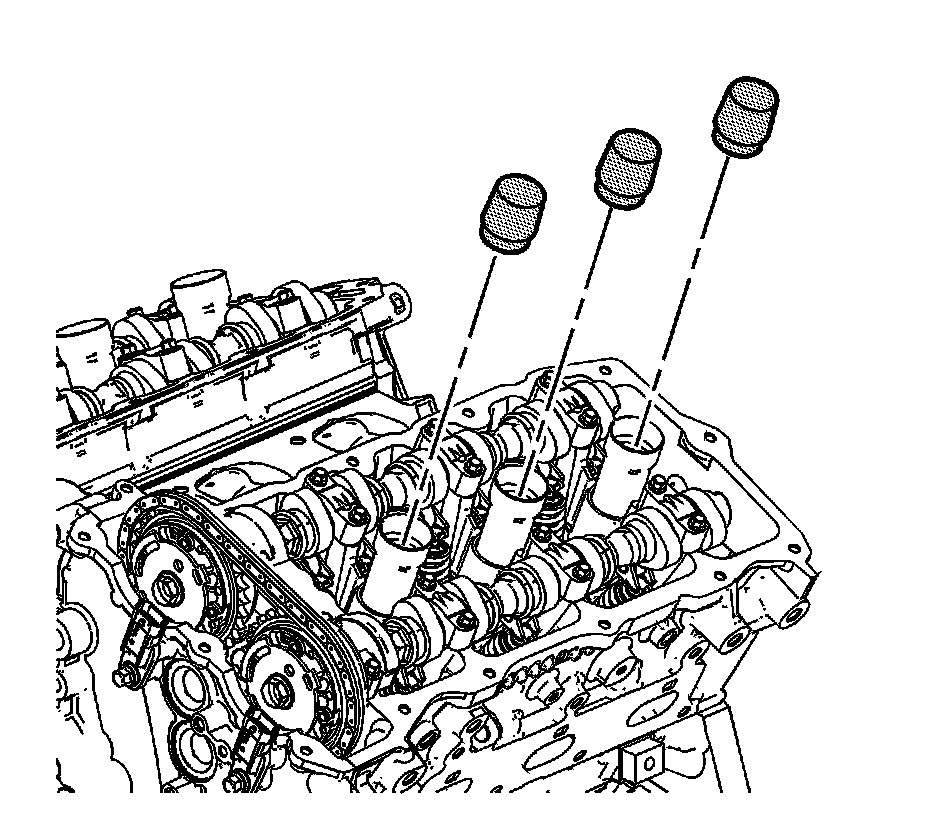

7. Install the EN 46101 - spark plug tube seal guide onto the spark plug tubes of the right cylinder head.

Installation Procedure

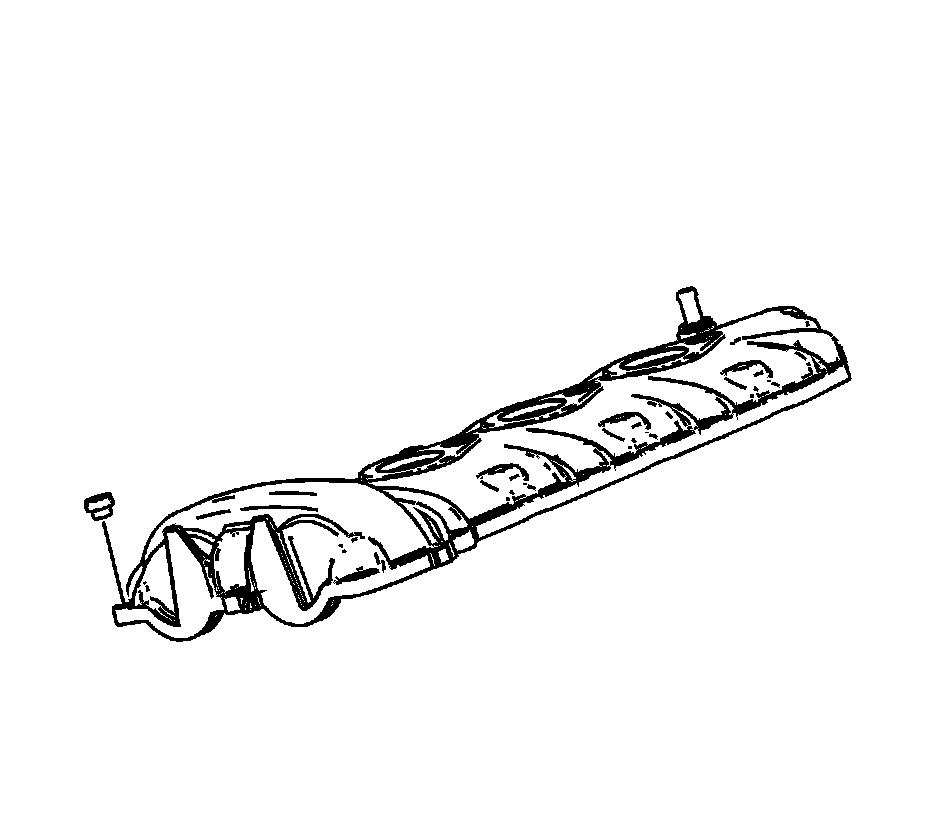

1. Install new camshaft cover bolt grommets prior to installing the camshaft cover bolts.

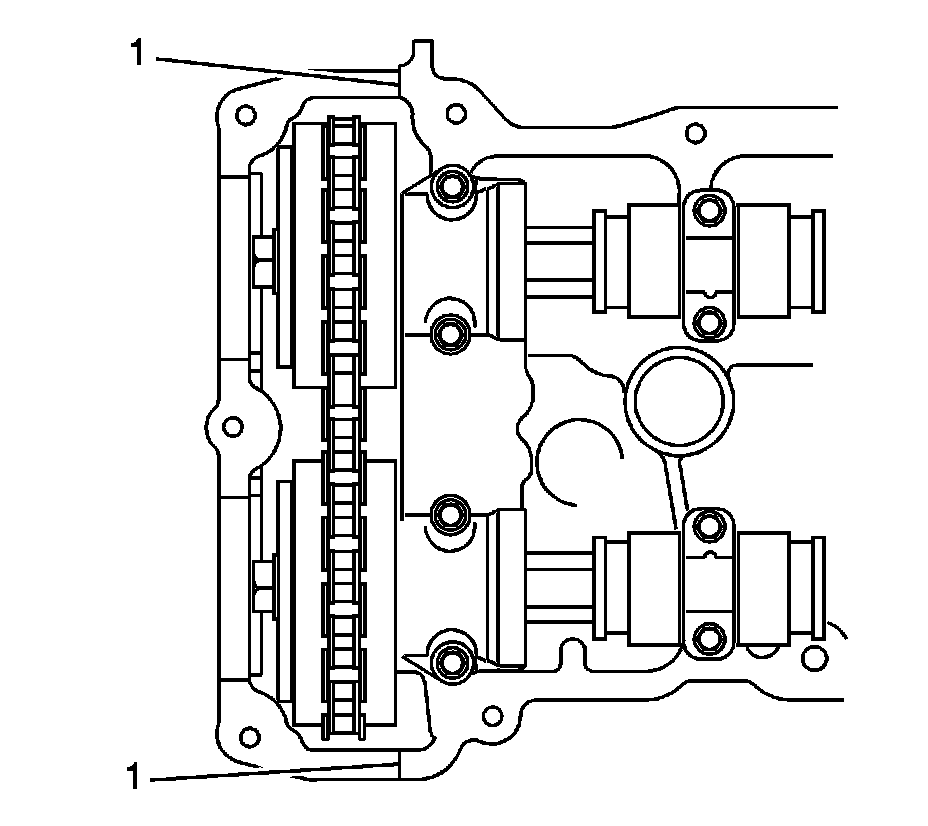

2. Place a bead 8 mm (0.3150 in) in diameter by 4 mm (0.1575 in) in height of RTV sealant, GM P/N 12378521 (Canadian P/N 88901148) or equivalent, on the engine front cover split lines (1).

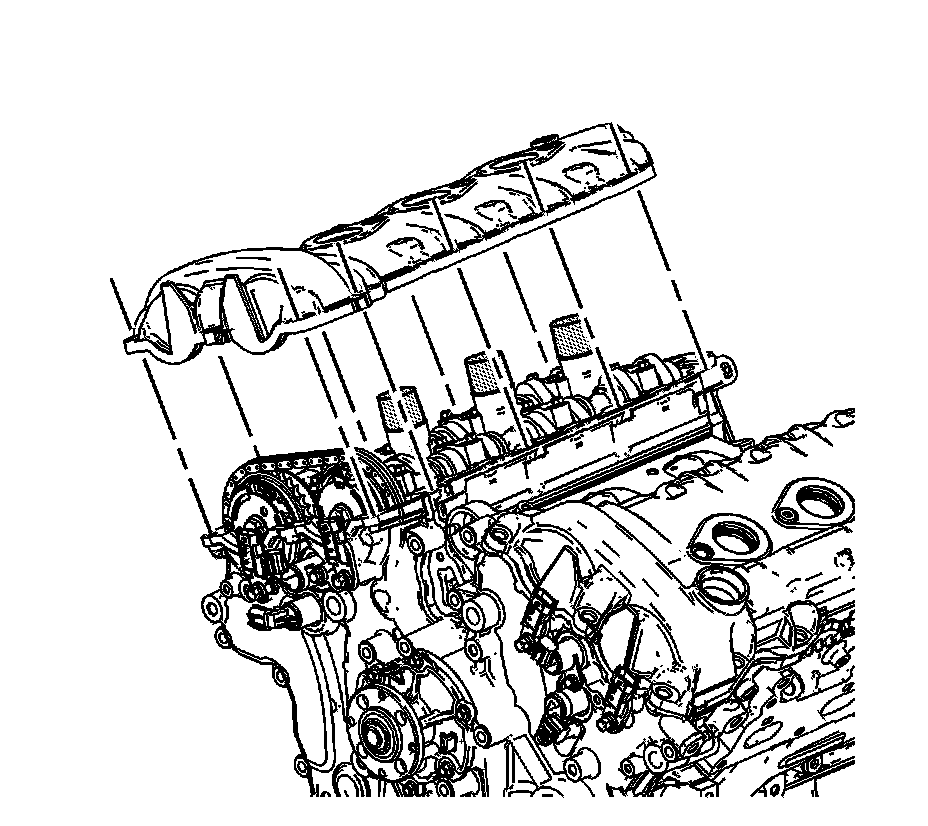

3. Place the right camshaft cover into position onto the right cylinder head.




4. Loosely install the right camshaft cover bolts.





Caution: Refer to Fastener Caution Fastener Caution.

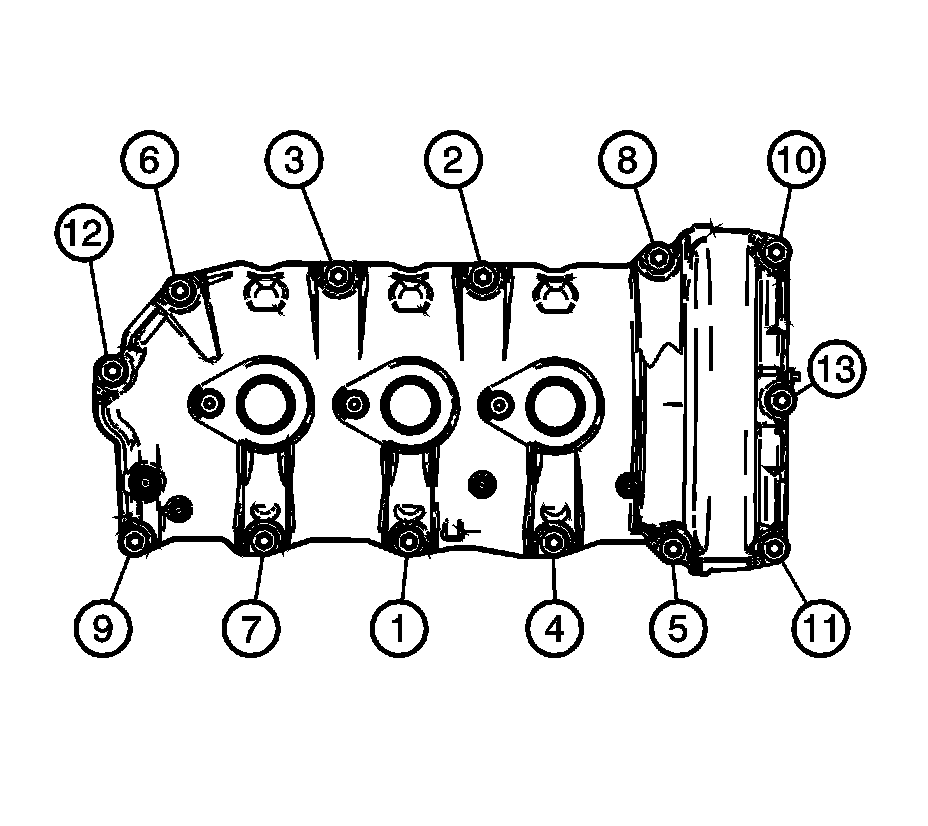

5. Tighten the right camshaft cover bolts in sequence.

Tighten the bolts to 10 Nm (89 lb in).

6. Install the power steering reservoir. Refer to Power Steering Fluid Reservoir Replacement Power Steering Fluid Reservoir Replacement.

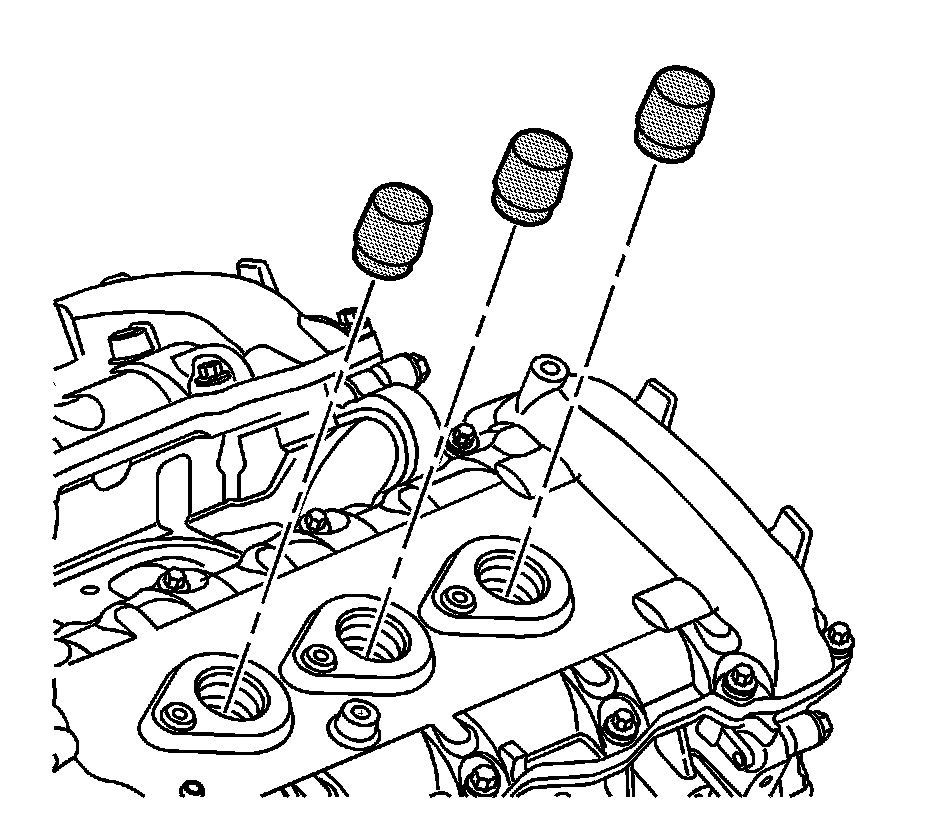

7. Remove the EN 46101 - spark plug tube seal guide from the spark plug tubes of the right cylinder head.

8. Install NEW spark plugs into the right cylinder head. Refer to Spark Plug Replacement Service and Repair.

9. Install the intake manifold. Refer to Intake Manifold Replacement Service and Repair.
