Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Ground Distribution Schematics >> G303 (1 of 2)

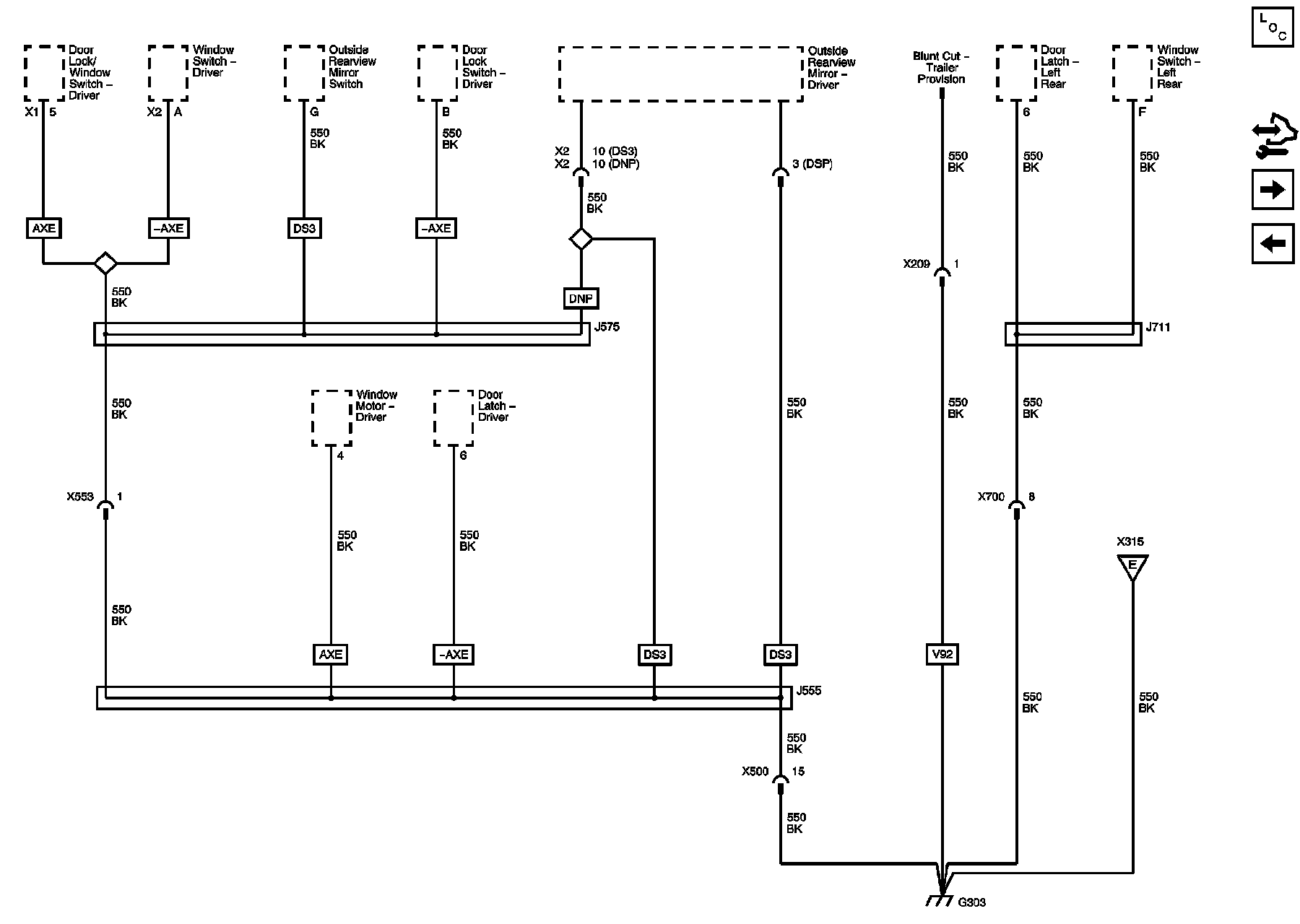

G303 (1 of 2)




Ground Distribution Schematics

G303 (1 of 2)





Master Electrical Component List
Control Module References
G303 (2 of 2), G304, and G305
G302 (3 of 3)
