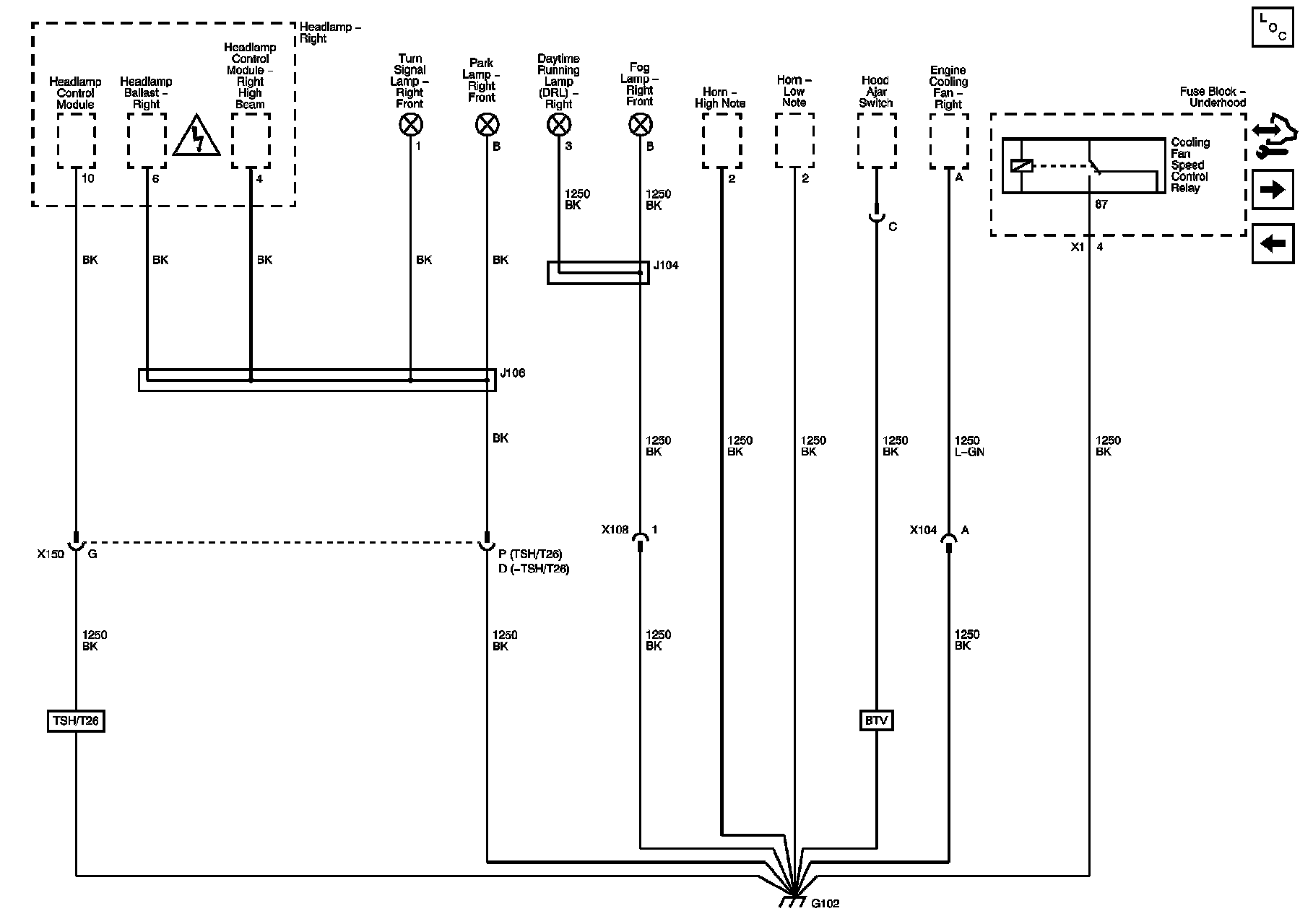

G102 (W49)




Ground Distribution Schematics

G102 (W49)





Master Electrical Component List
Control Module References
G102 (WDA)
G101, G103, and G113 (Z88)
Master Electrical Schematic Icons
Electrical Center Identification Views
