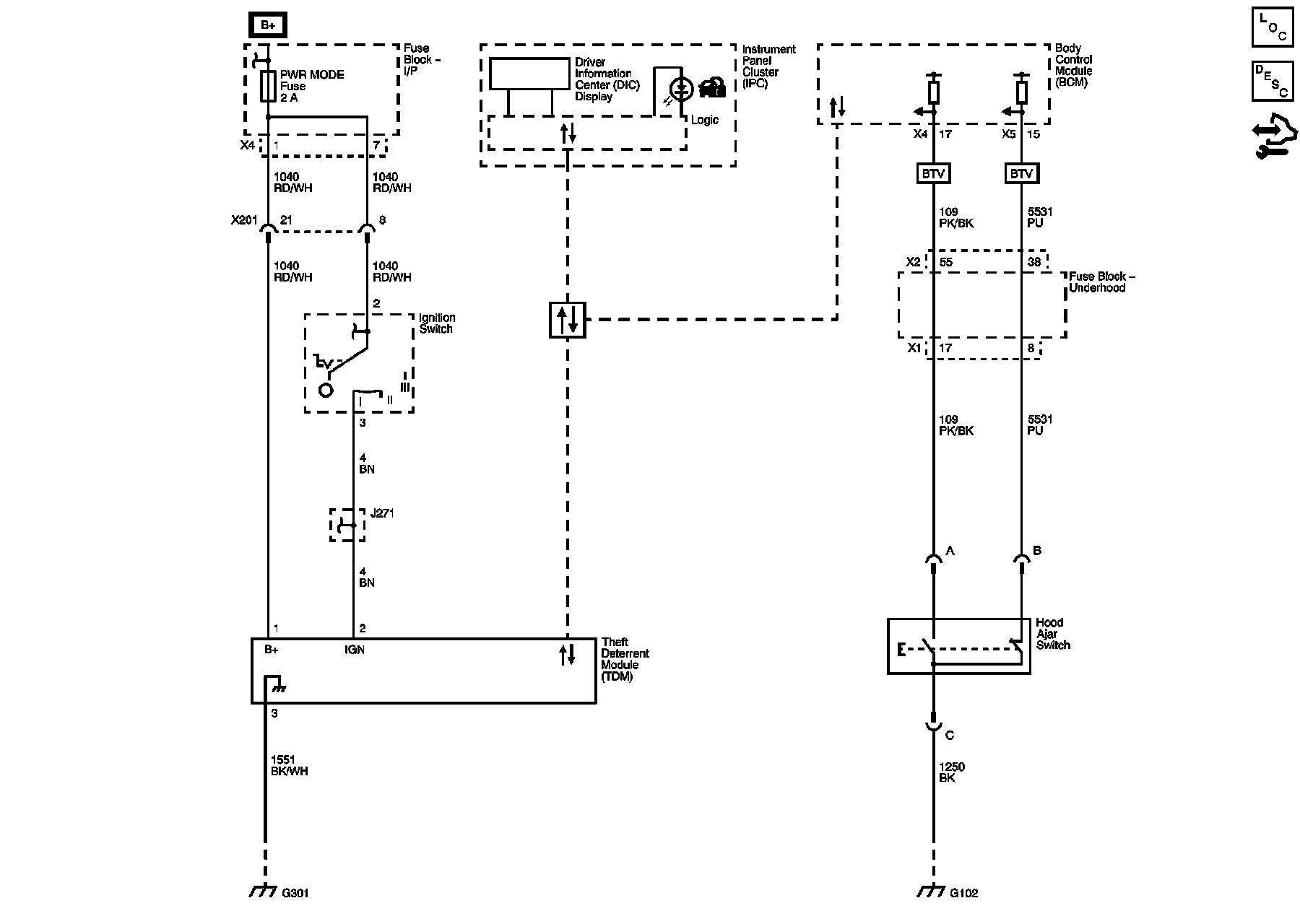

Immobilizer Schematics




Immobilizer Schematics

Immobilizer





Master Electrical Component List
Immobilizer Description and Operation
Control Module References
DSPLY, INFOTMNT, POWER MODE, and RDO Fuses
Data Communication Schematics
G301 (1 of 2)
Ground Distribution Schematics
