Trunk / Liftgate Latch
>>
Liftgate Latch Assembly (TB4)
Liftgate Latch Assembly (TB4)

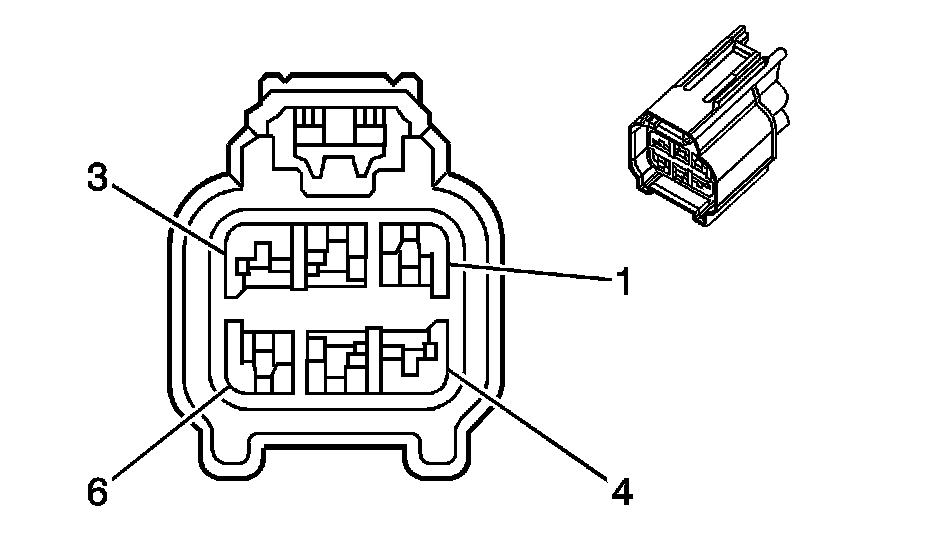

Component Connector End Views

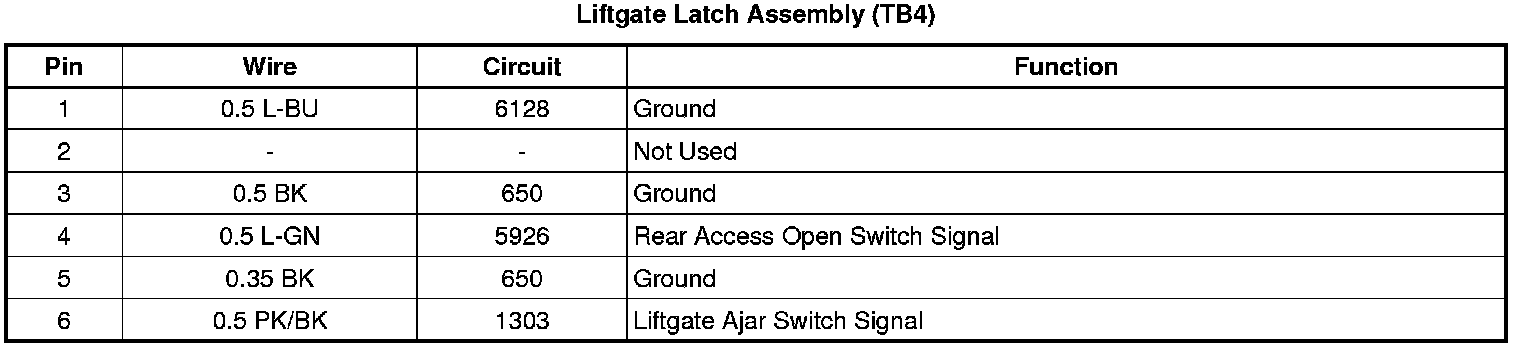

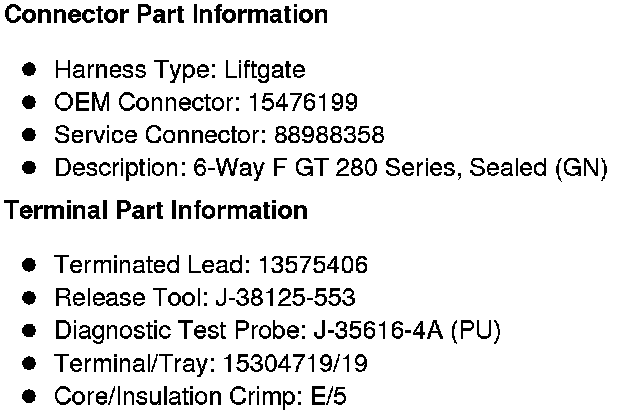

Liftgate Latch Assembly (TB4)
