Seat Temperature Switch
>>
Heated and Cooled Seat Switch - Passenger (KB6)
Heated and Cooled Seat Switch - Passenger (KB6)

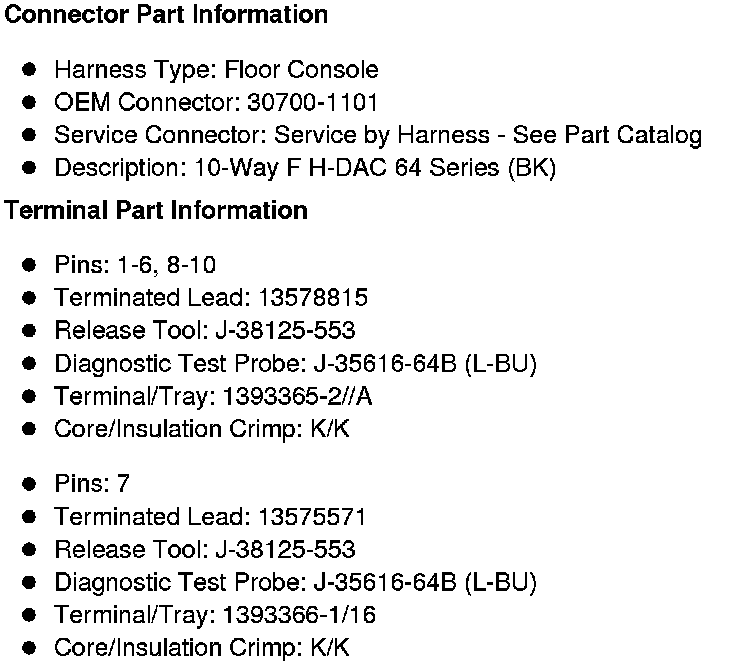

Component Connector End Views

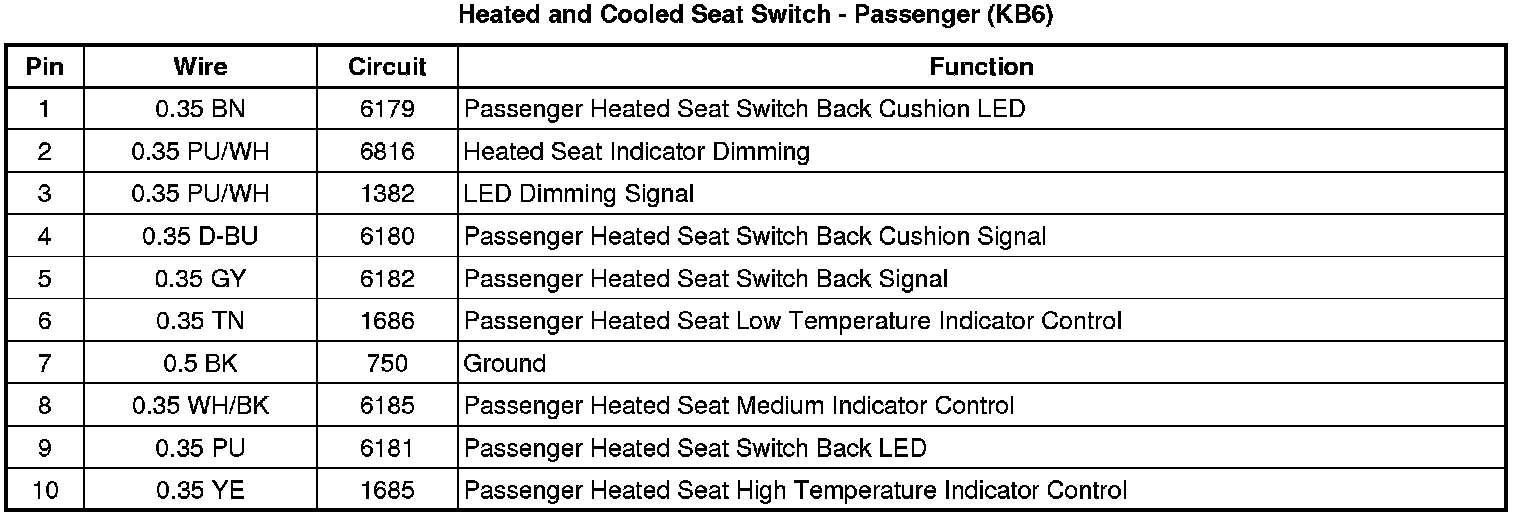

Heated and Cooled Seat Switch - Passenger (KB6)
