Seat Occupant Classification Module - Air Bag

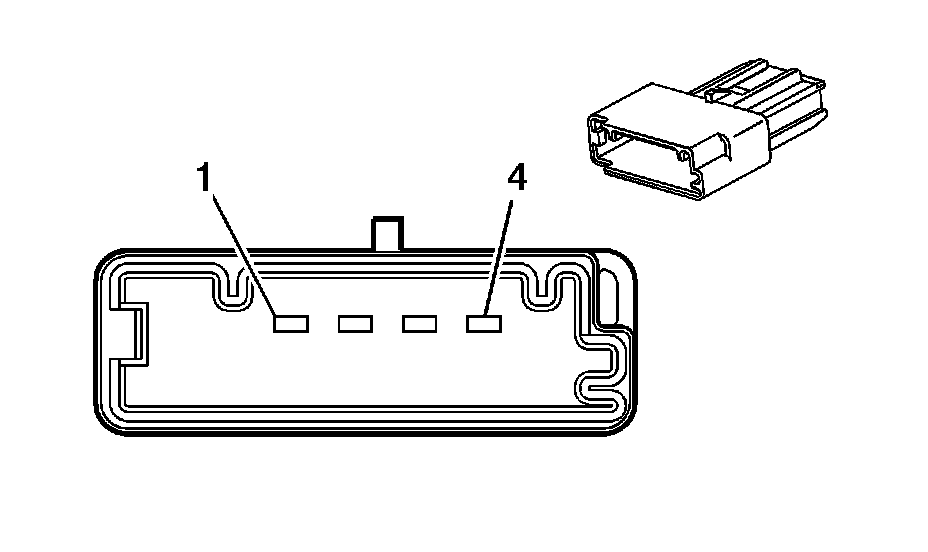

Component Connector End Views

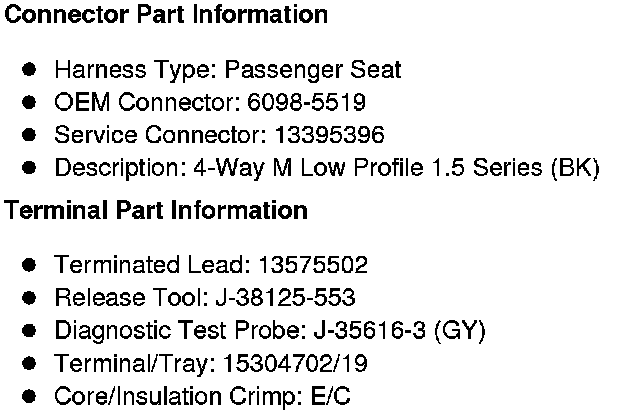

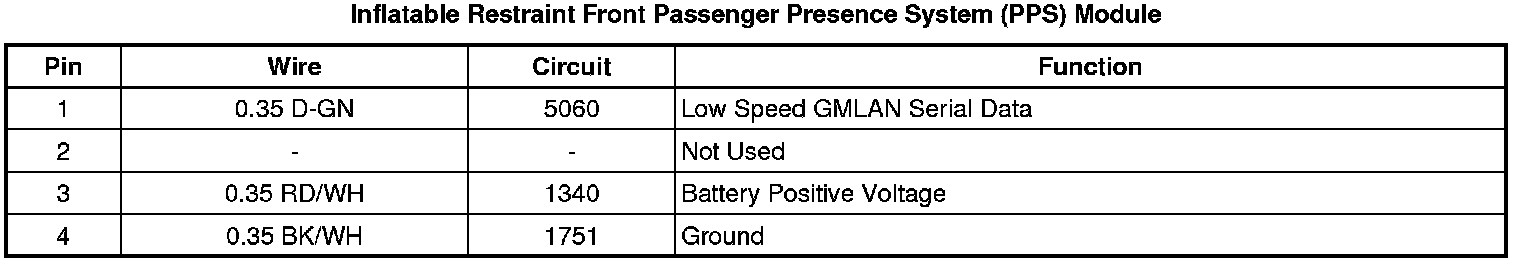

Inflatable Restraint Front Passenger Presence System (PPS) Module
