Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Connector End Views By Number >> X900 - X999 >> X931

X931

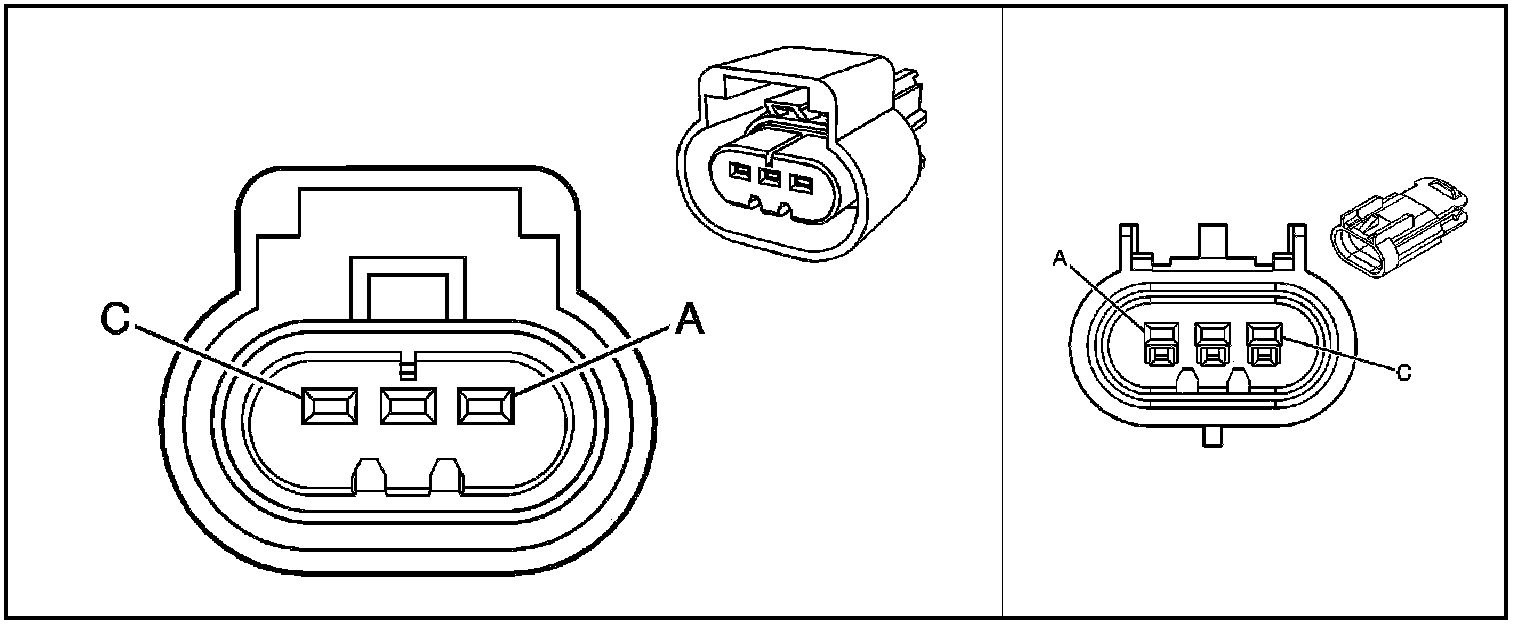

Inline Harness Connector End Views

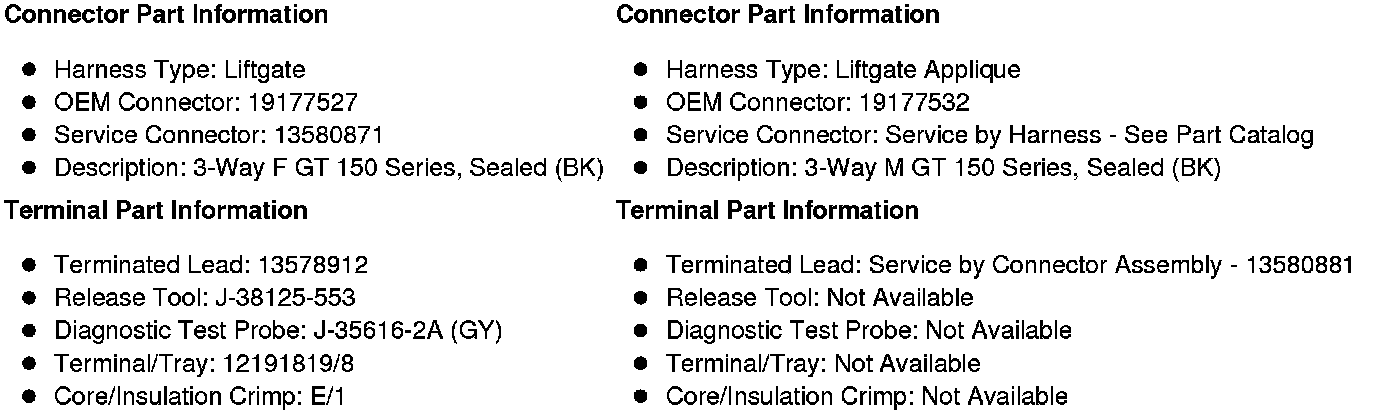

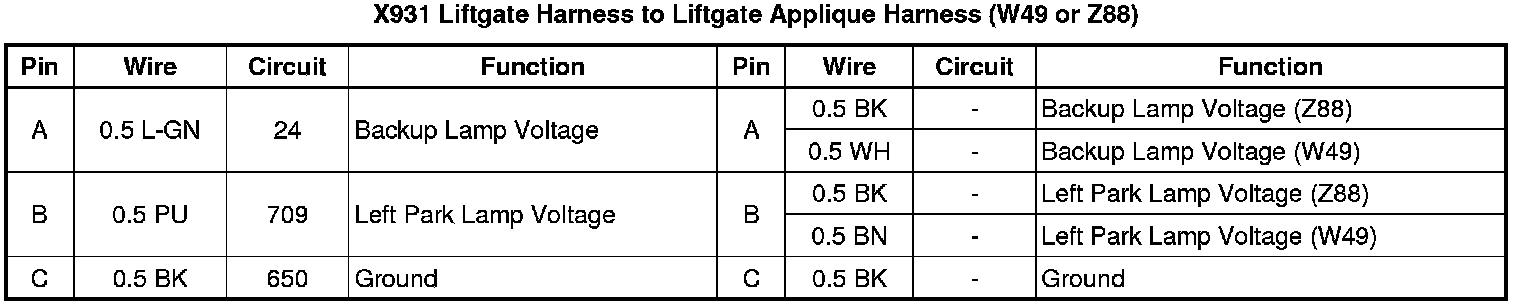

X931 Liftgate Harness to Liftgate Applique Harness (W49 or Z88)
