X911




Inline Harness Connector End Views

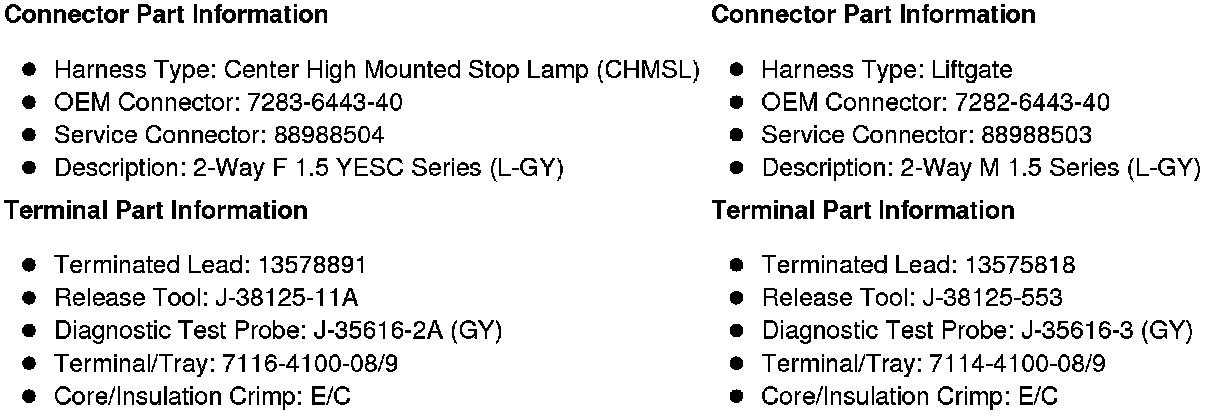

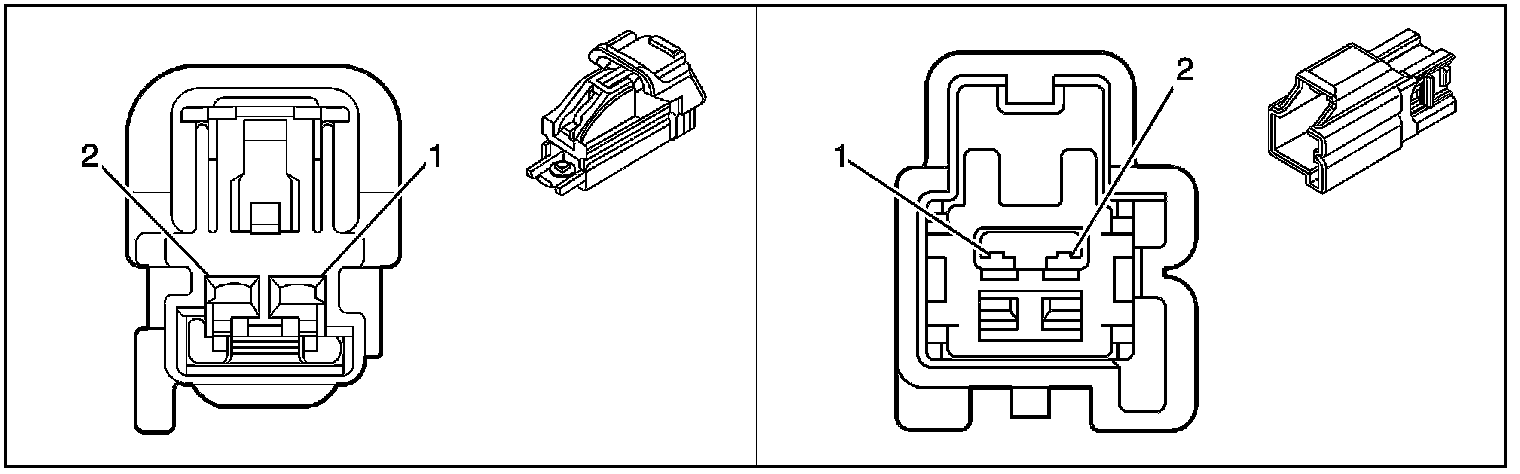

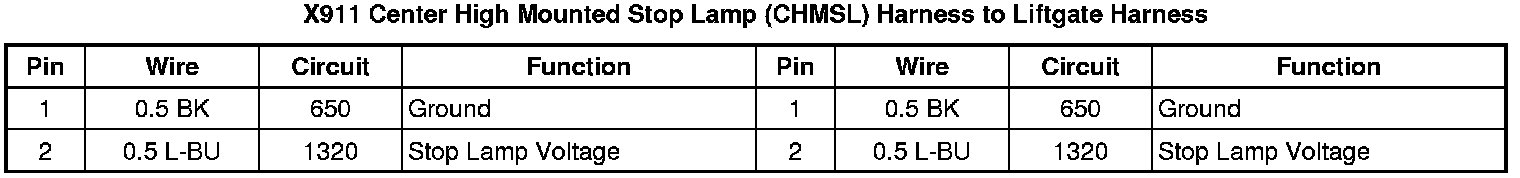

X911 Center High Mounted Stop Lamp (CHMSL) Harness to Liftgate Harness
