X451




Inline Harness Connector End Views

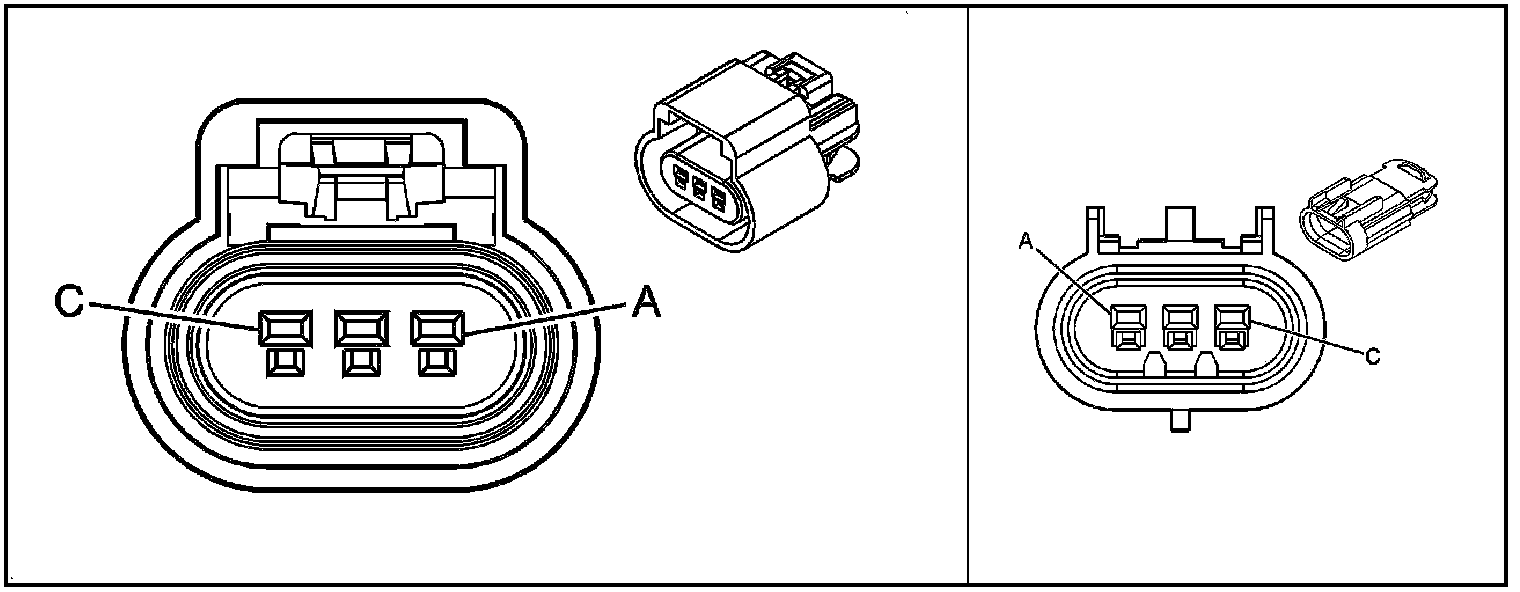

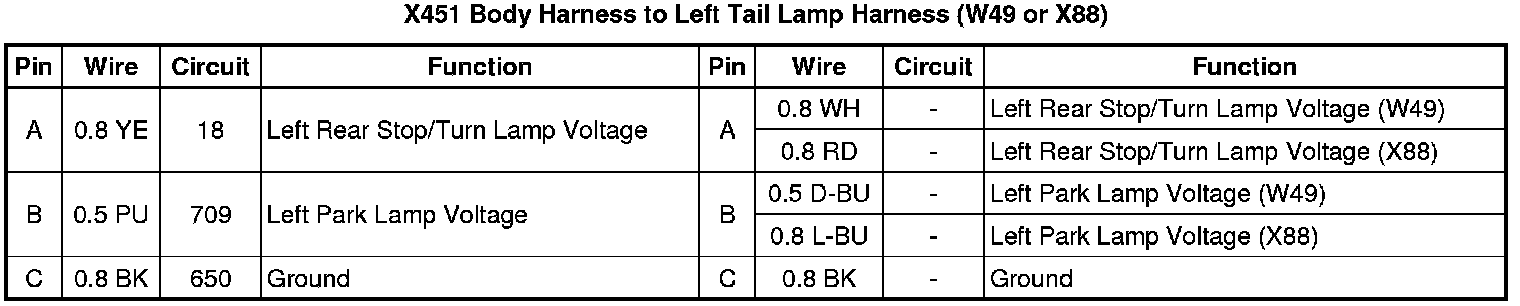

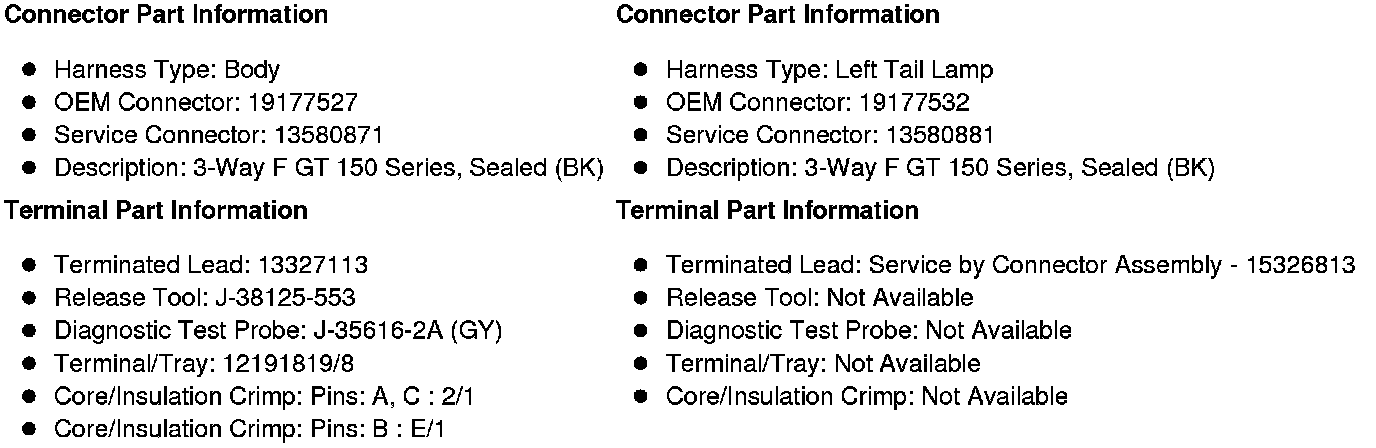

X451 Body Harness to Left Tail Lamp Harness (W49 or X88)
