X440




Inline Harness Connector End Views

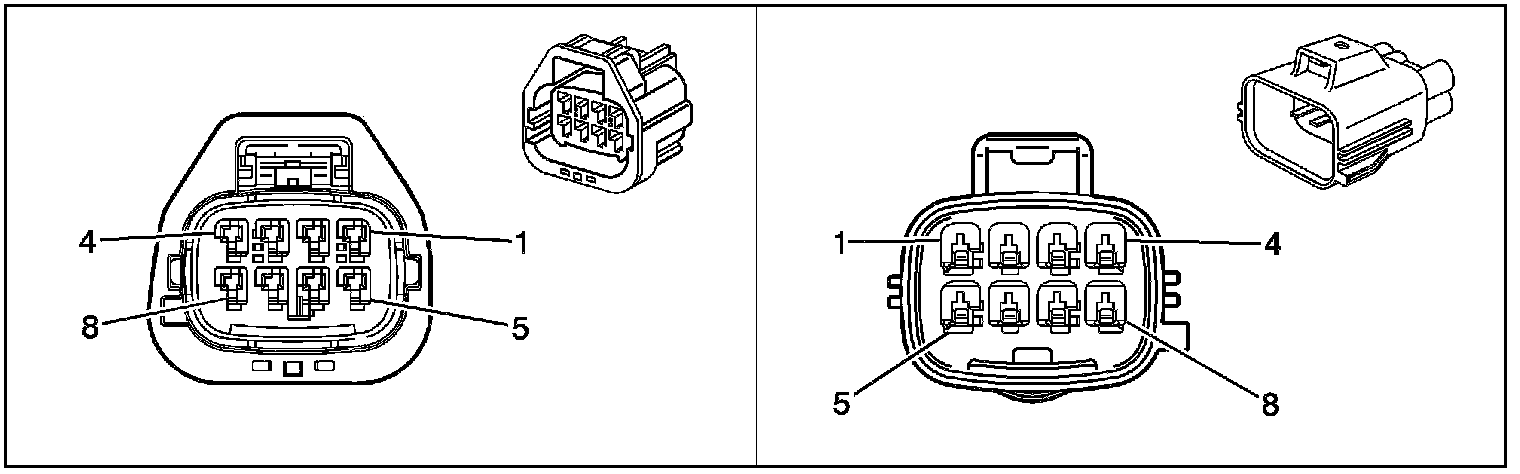

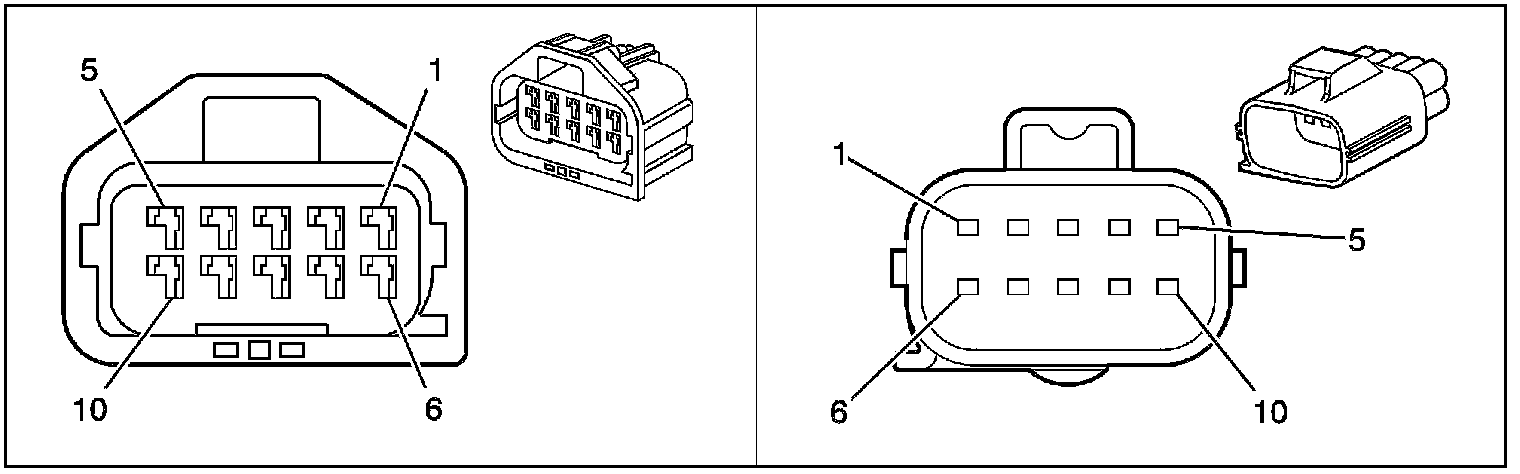

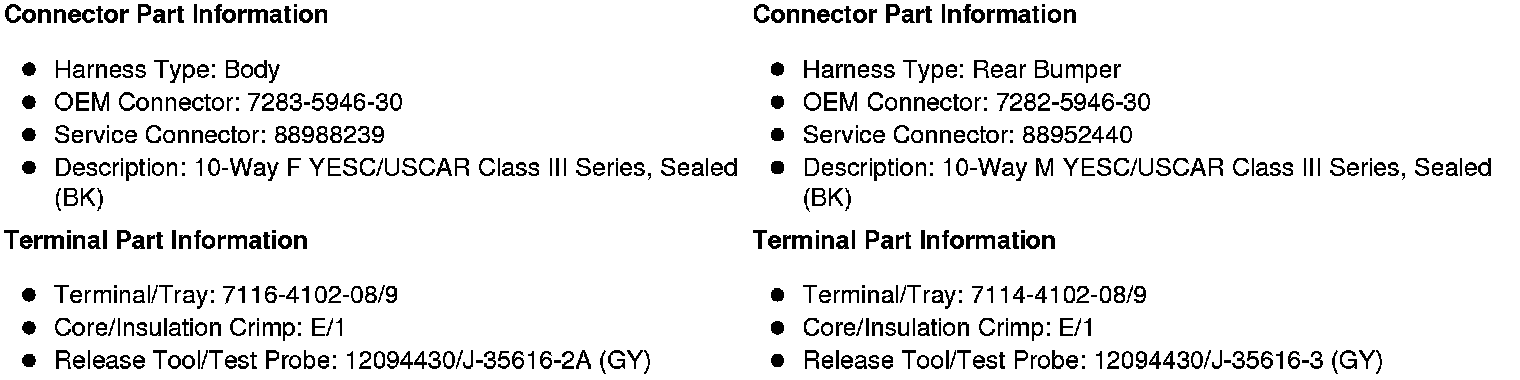

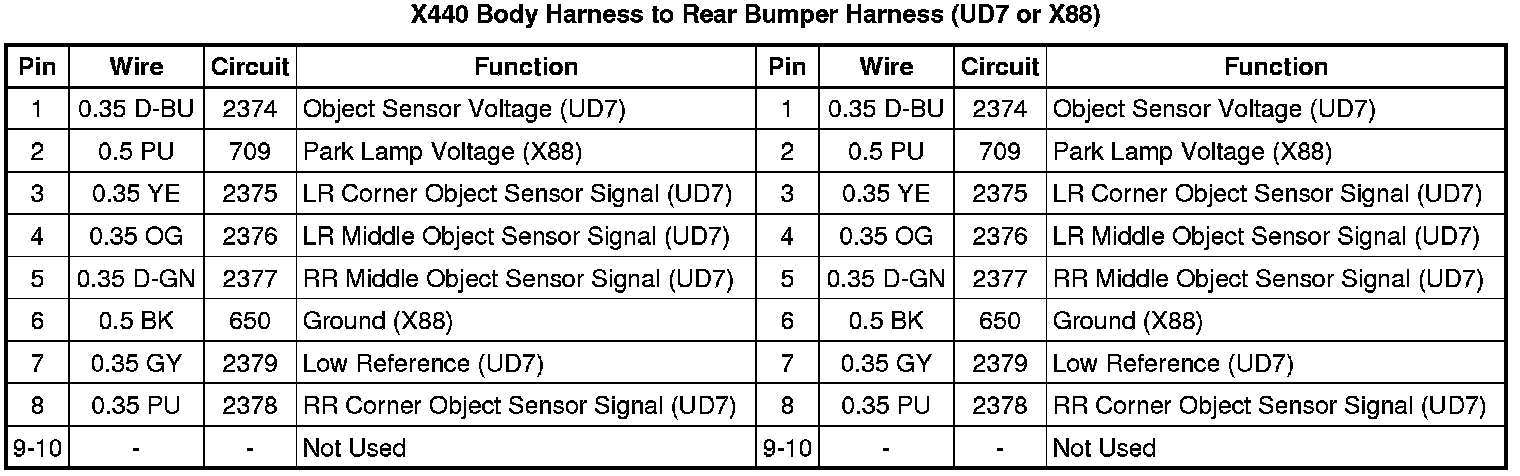

X440 Body Harness to Rear Bumper Harness (UD7 or X88)

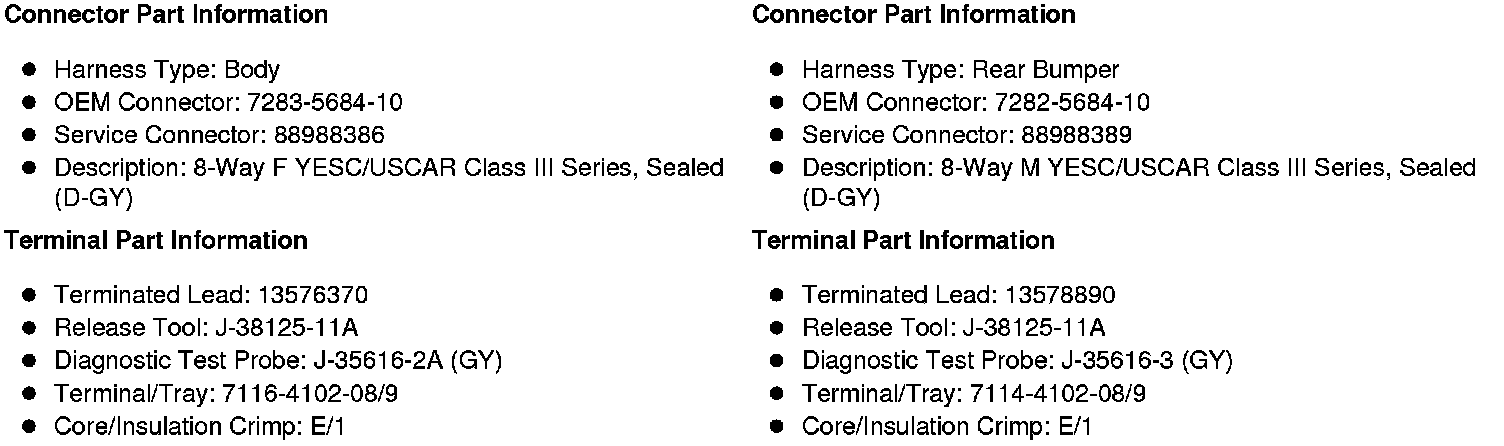

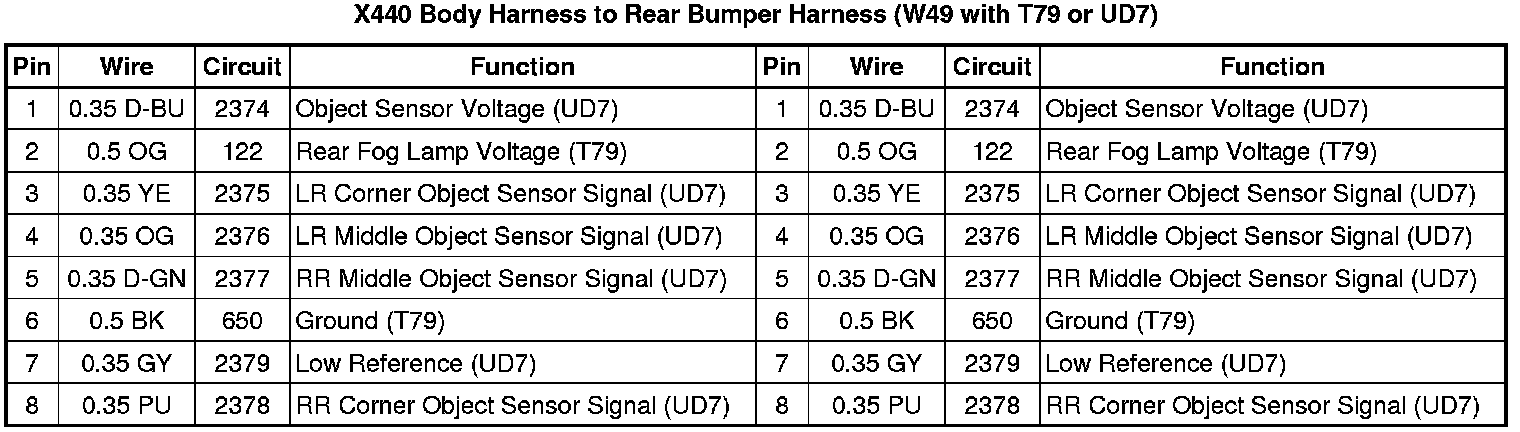

X440 Body Harness to Rear Bumper Harness (W49 with T79 or UD7)
