X393
X393

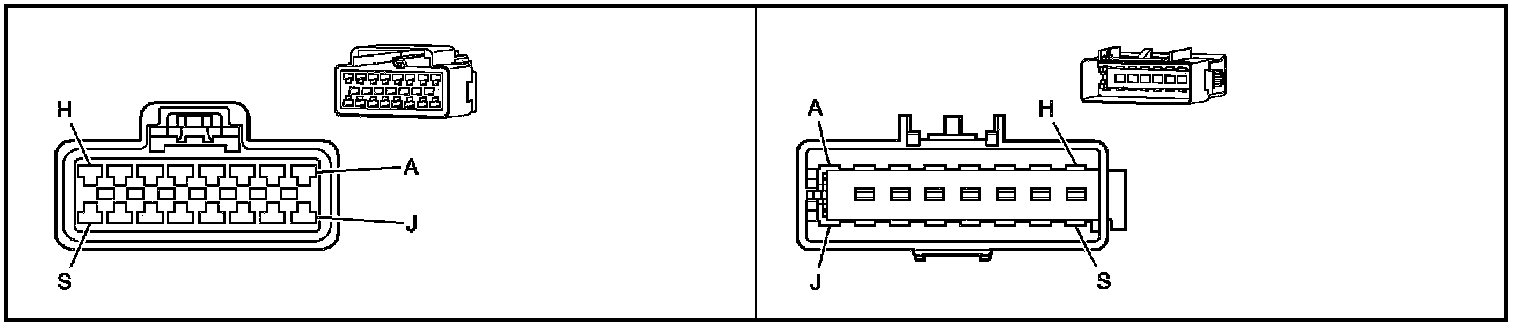

Inline Harness Connector End Views

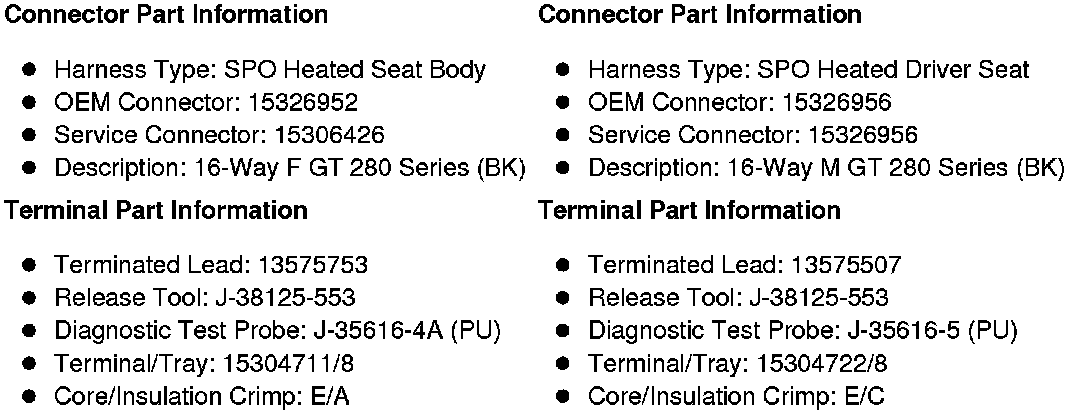

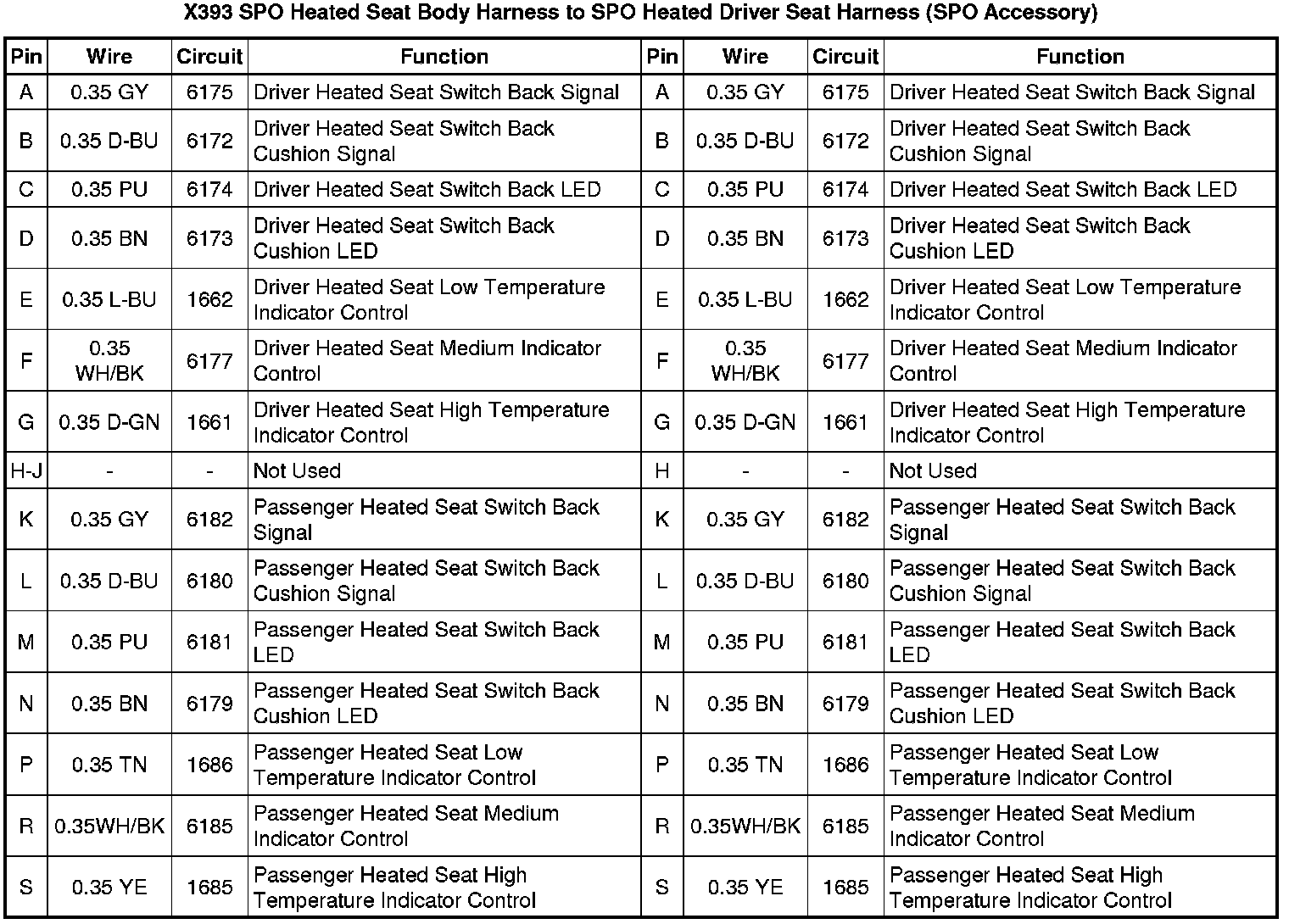

X393 SPO Heated Seat Body Harness to SPO Heated Driver Seat Harness (SPO Accessory)
