X392
X392

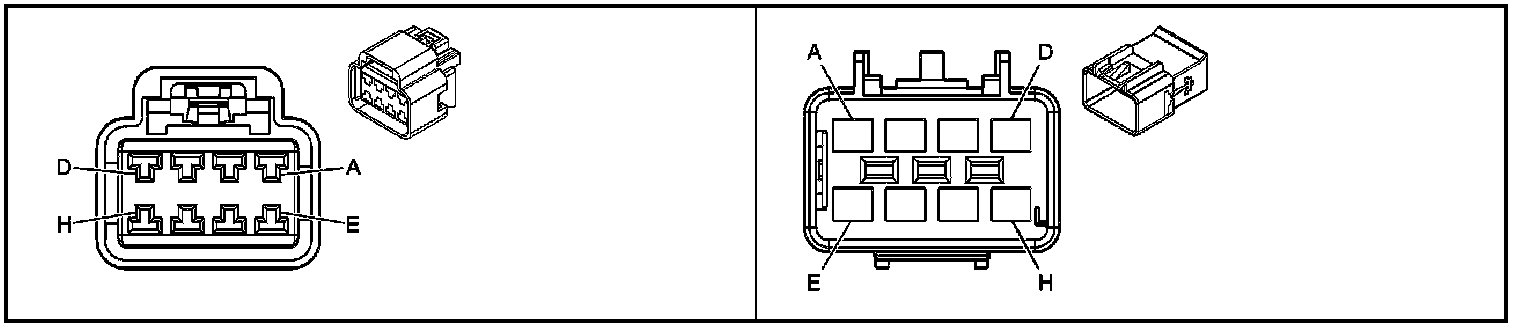

Inline Harness Connector End Views

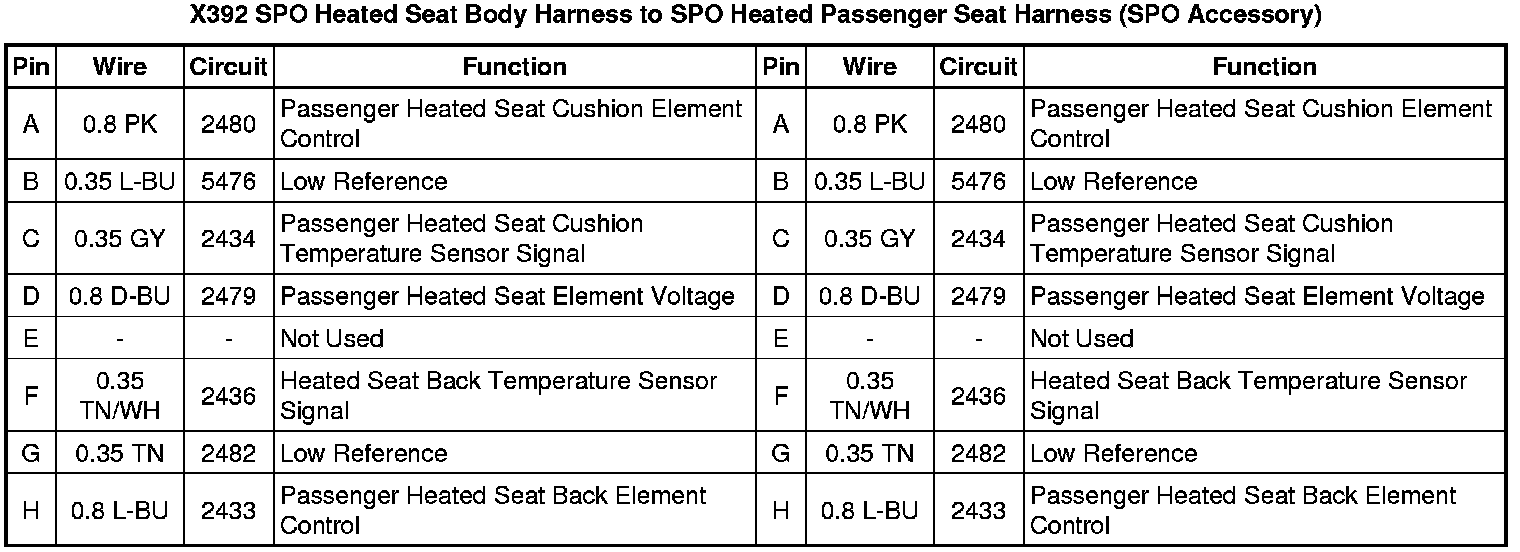

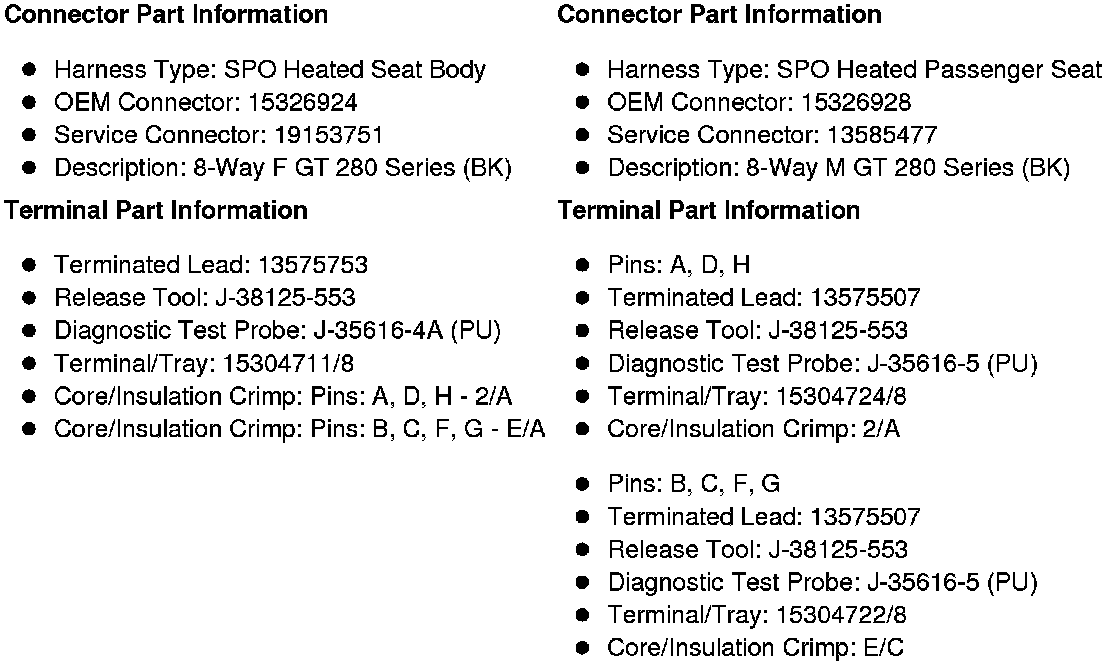

X392 SPO Heated Seat Body Harness to SPO Heated Passenger Seat Harness (SPO Accessory)
