X390




Inline Harness Connector End Views

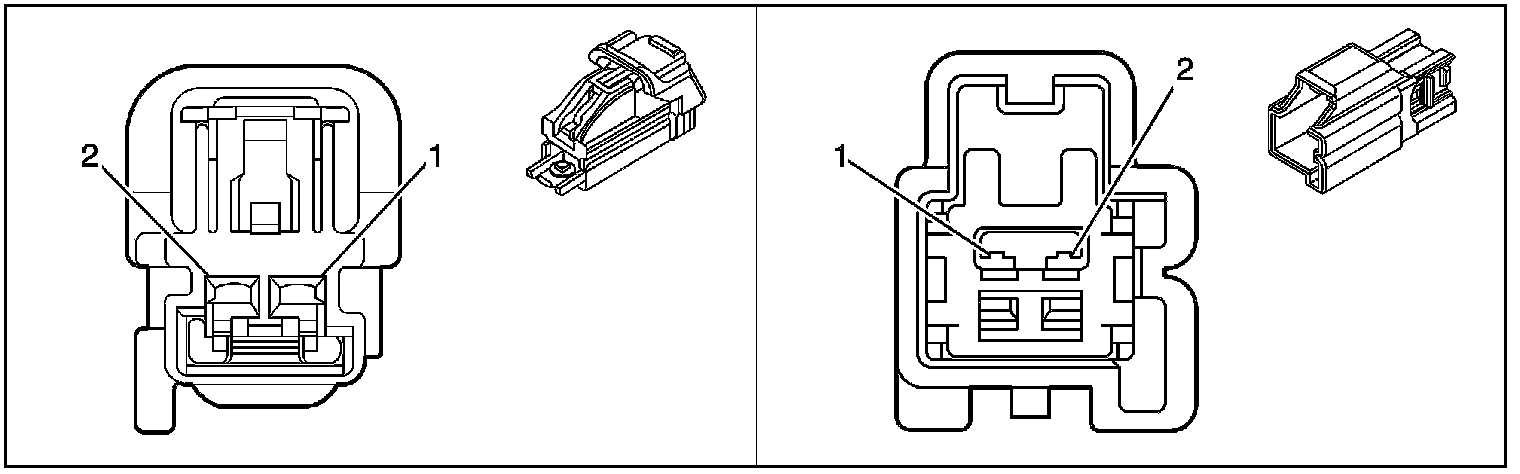

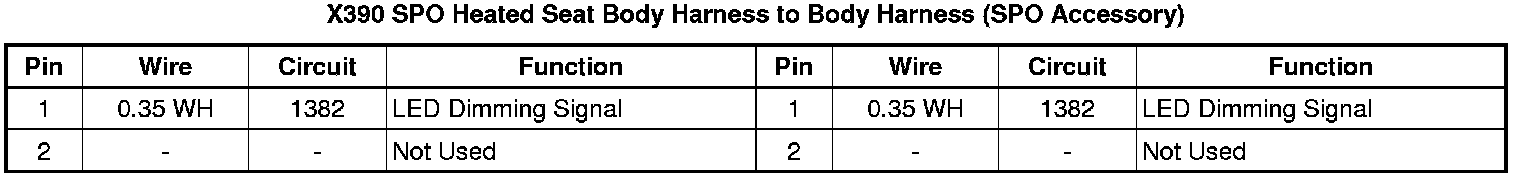

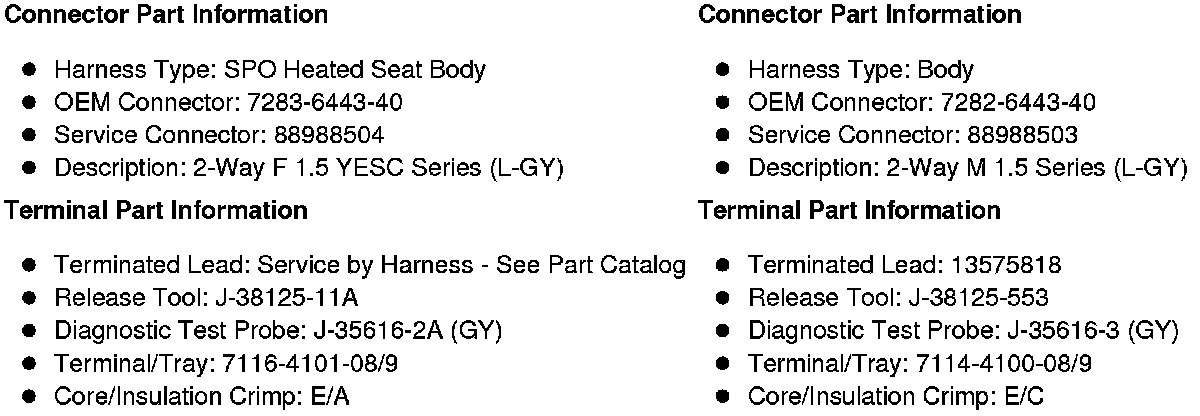

X390 SPO Heated Seat Body Harness to Body Harness (SPO Accessory)
