X374

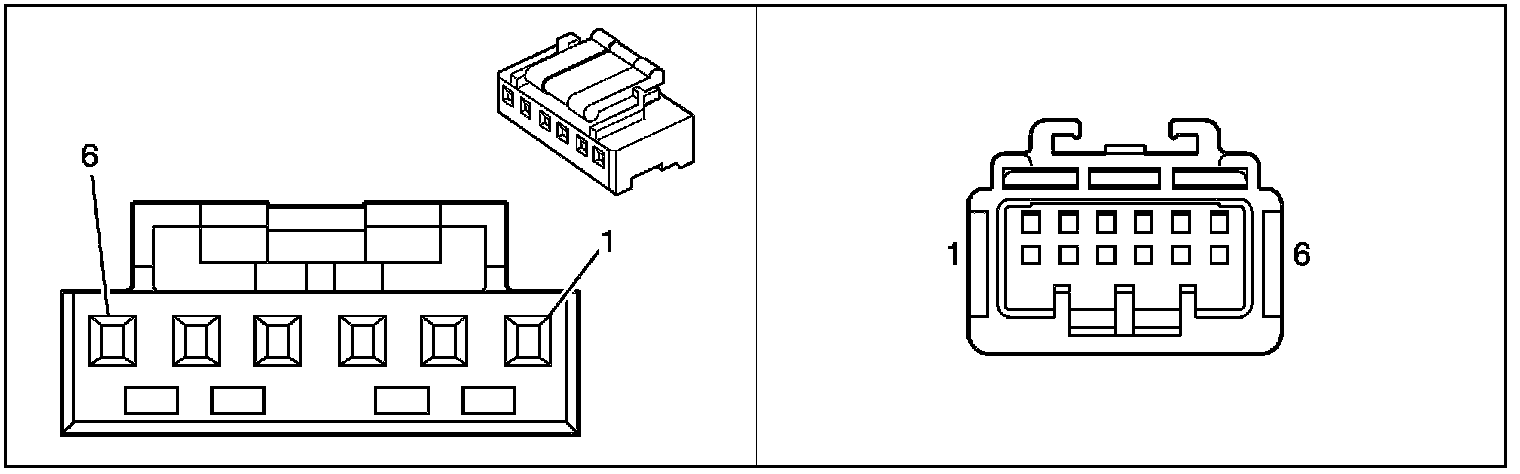

Inline Harness Connector End Views

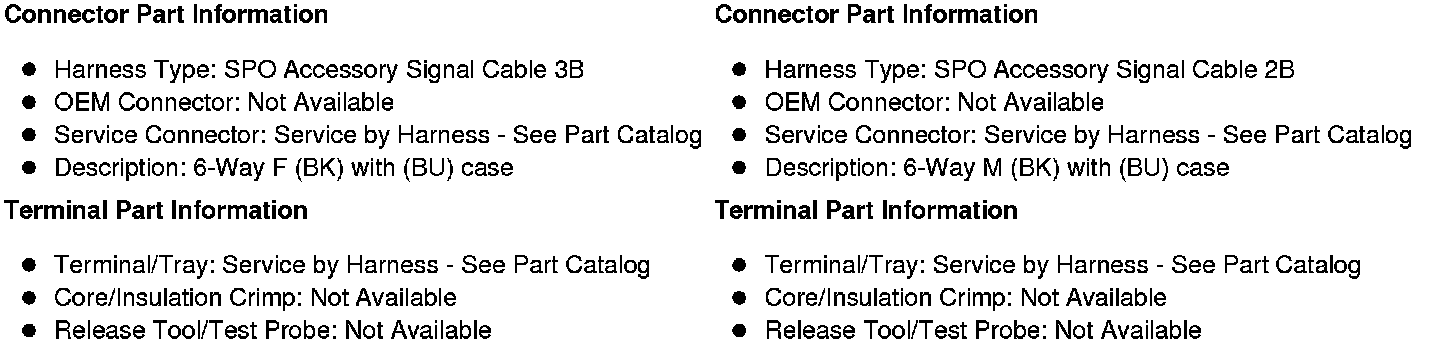

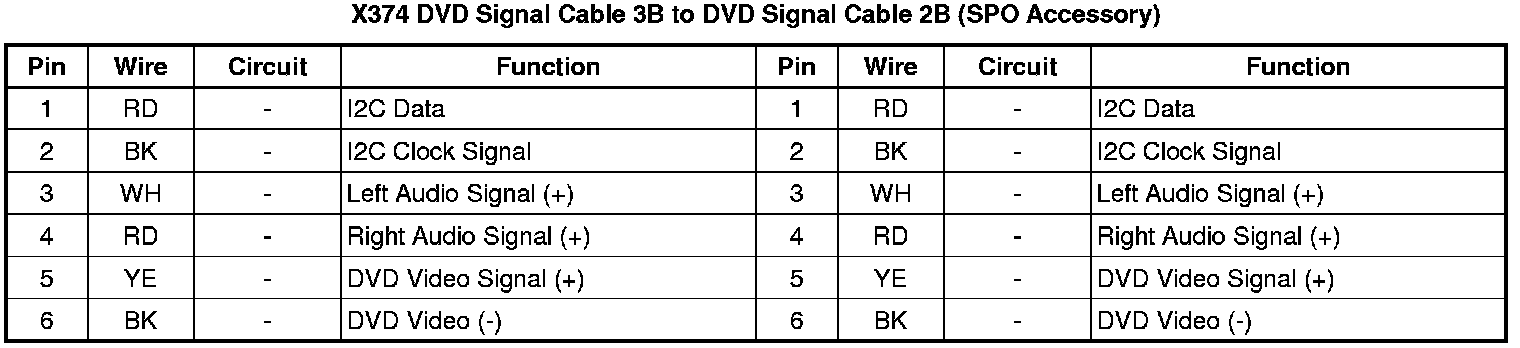

X374 DVD Signal Cable 3B to DVD Signal Cable 2B (SPO Accessory)
