X371

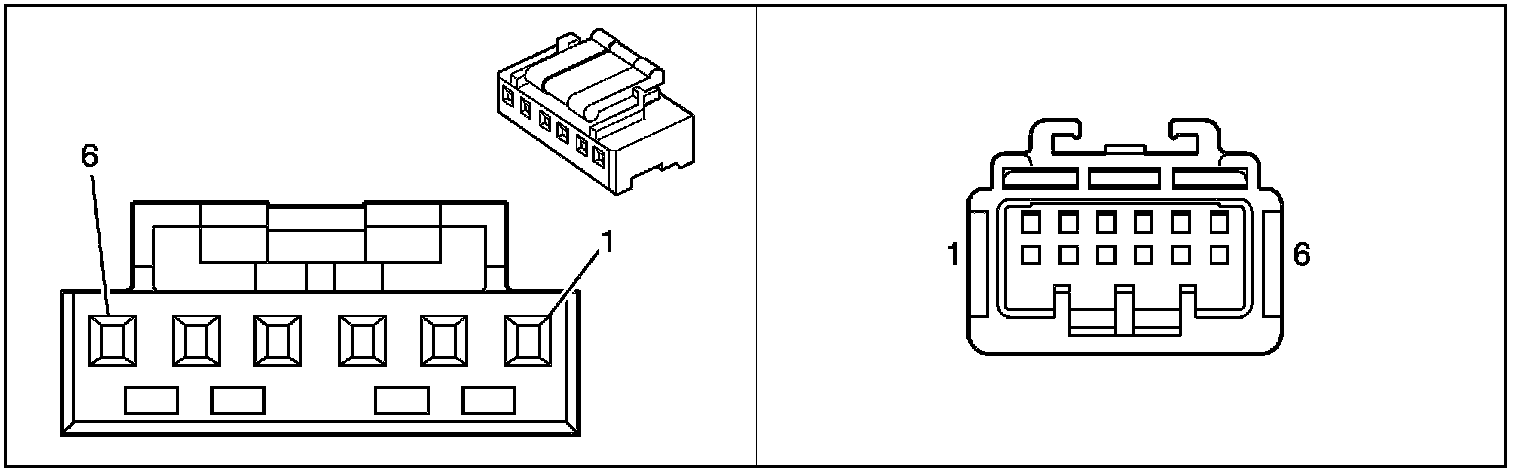

Inline Harness Connector End Views

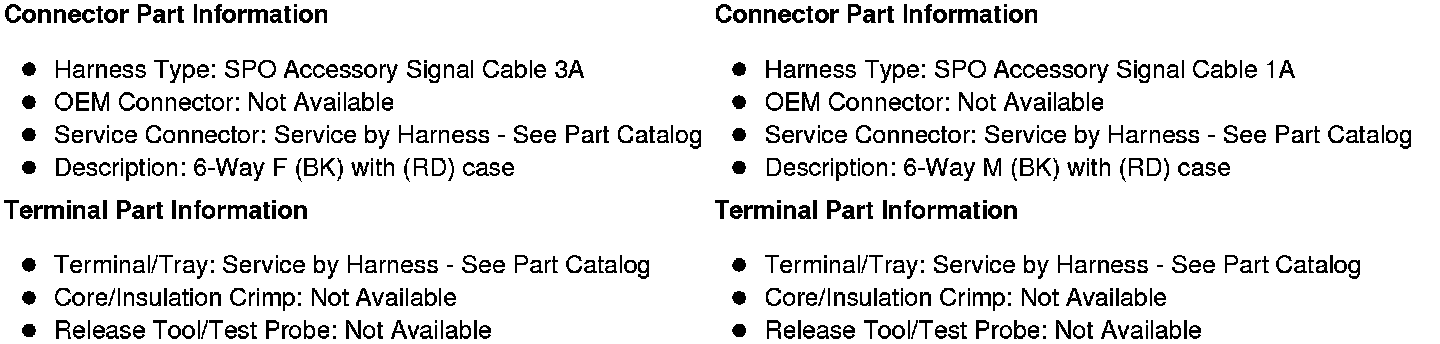

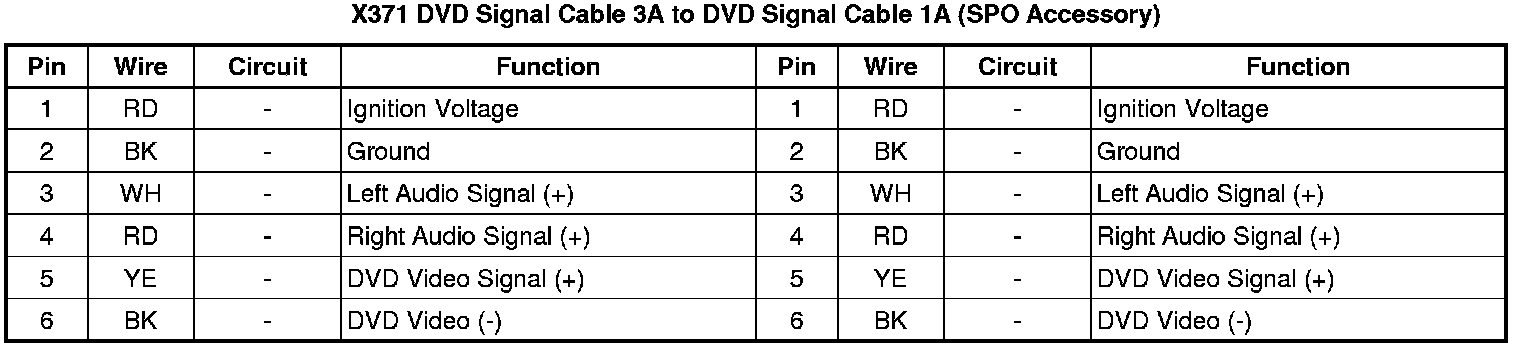

X371 DVD Signal Cable 3A to DVD Signal Cable 1A (SPO Accessory)
