X341




Inline Harness Connector End Views

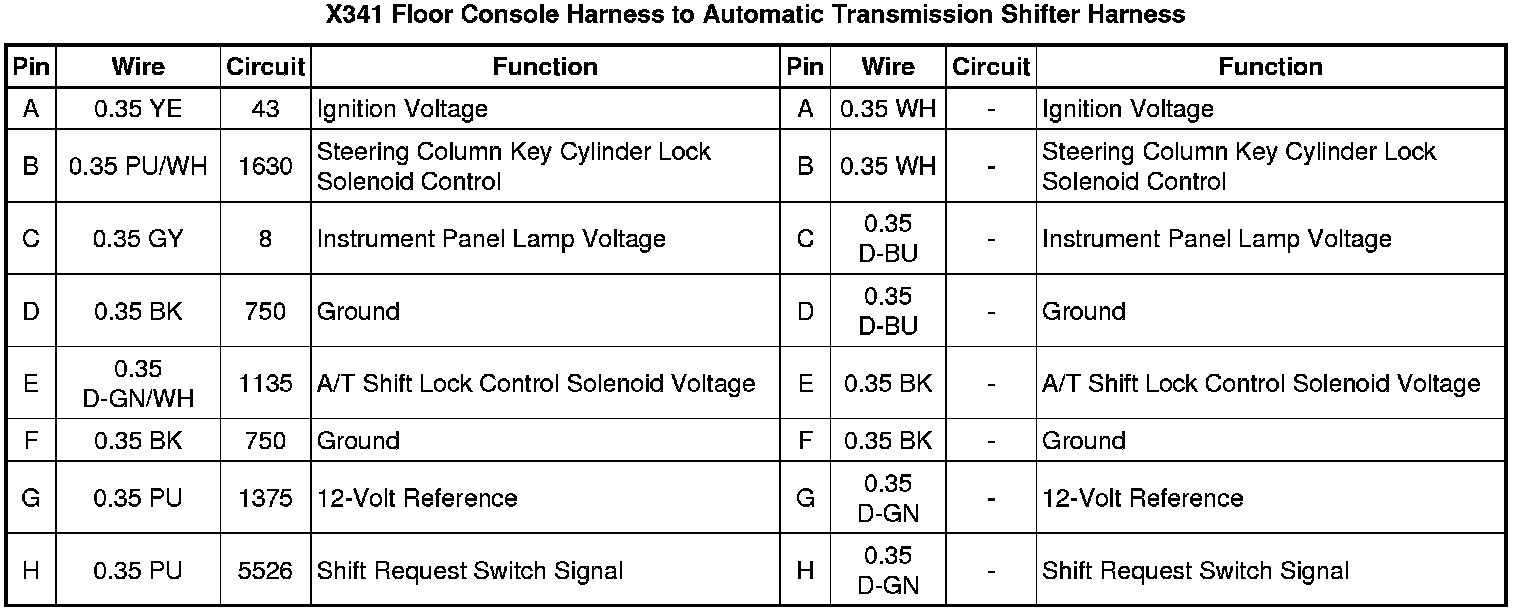

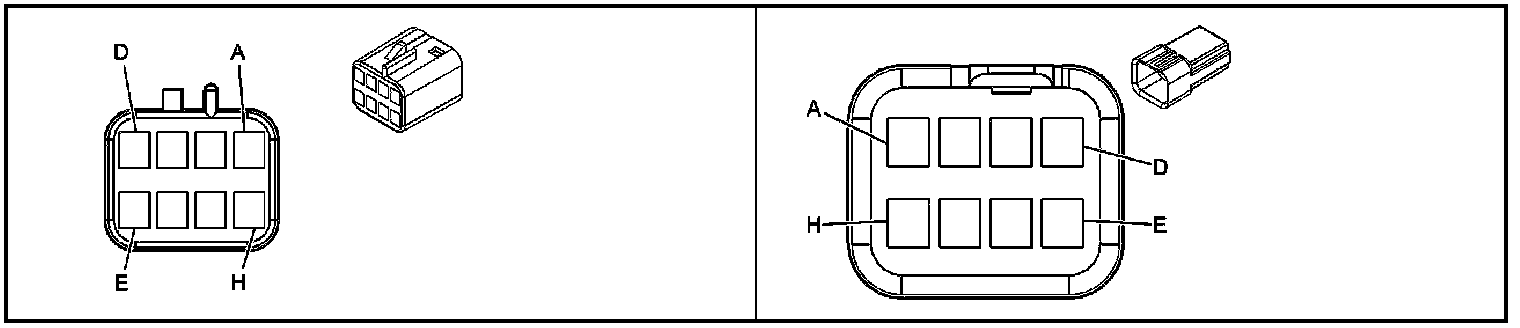

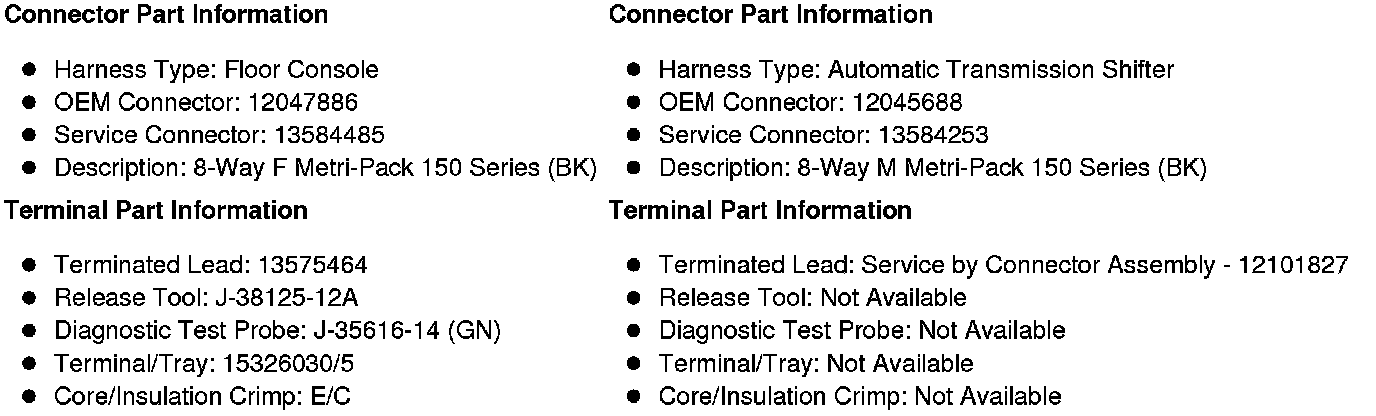

X341 Floor Console Harness to Automatic Transmission Shifter Harness
