Speaker - Left Rear (UQA or UQS with W49)
Speaker - Left Rear (UQA or UQS with W49)
Component Connector End Views

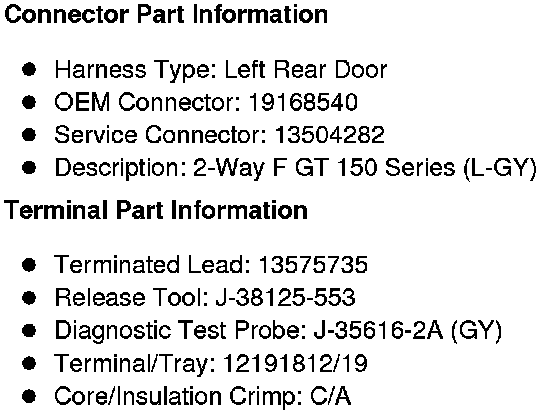

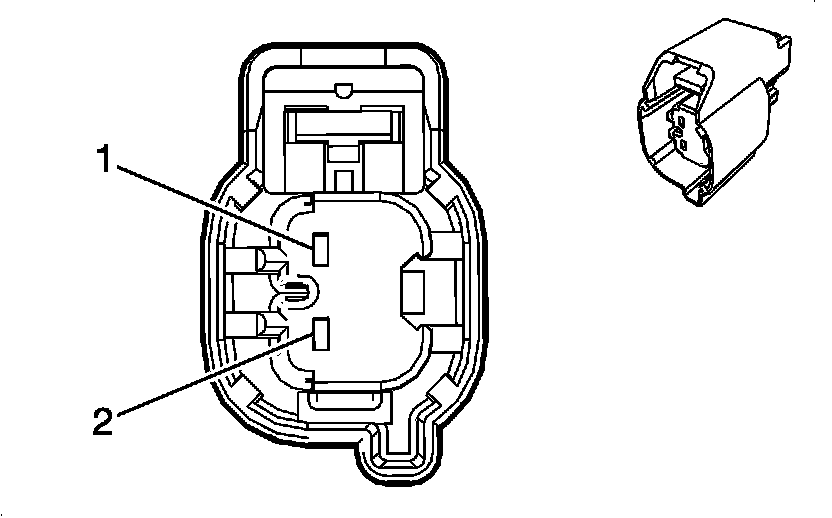

Speaker - Left Rear (UQA or UQS with W49)
