Inflatable Restraint I/P Module Indicator
Inflatable Restraint I/P Module Indicator

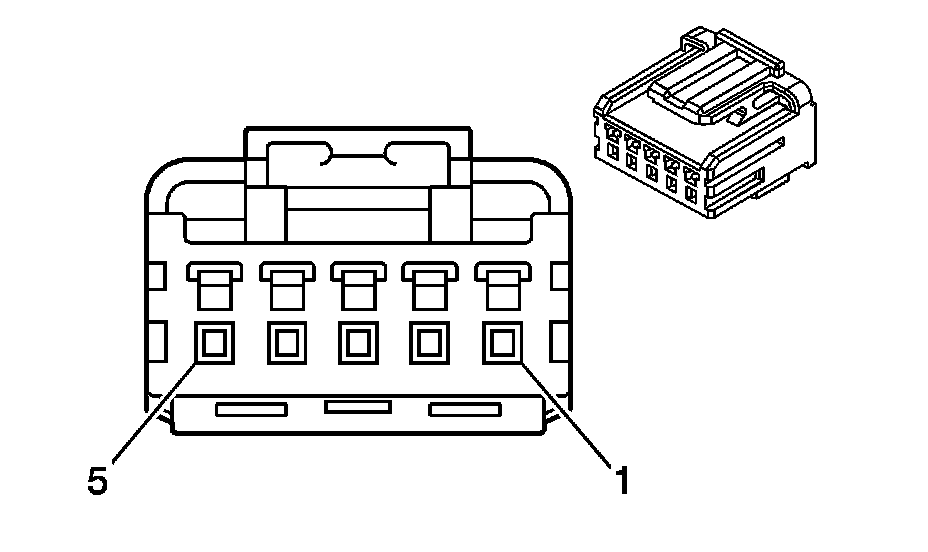

Component Connector End Views

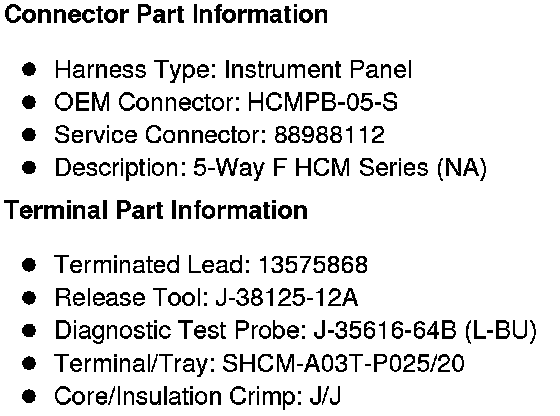

Inflatable Restraint I/P Module Indicator
