Head Up Display (HUD) Switch (UV6)
Head Up Display (HUD) Switch (UV6)
Component Connector End Views

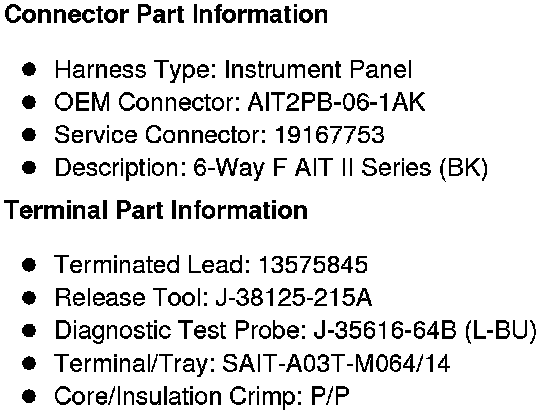

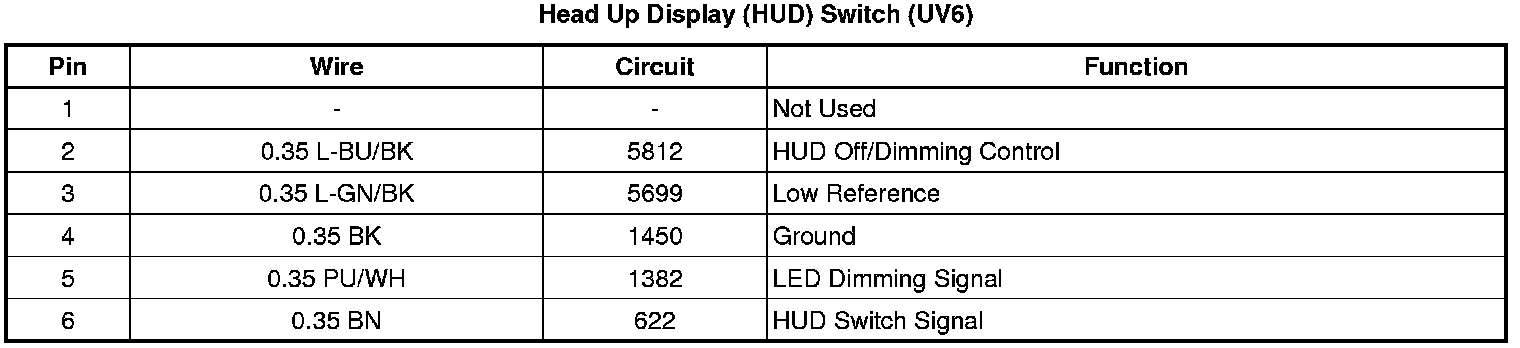

Head Up Display (HUD) Switch (UV6)
