Digital Video Disc Relay (SPO Accessory)
Digital Video Disc Relay (SPO Accessory)
Component Connector End Views

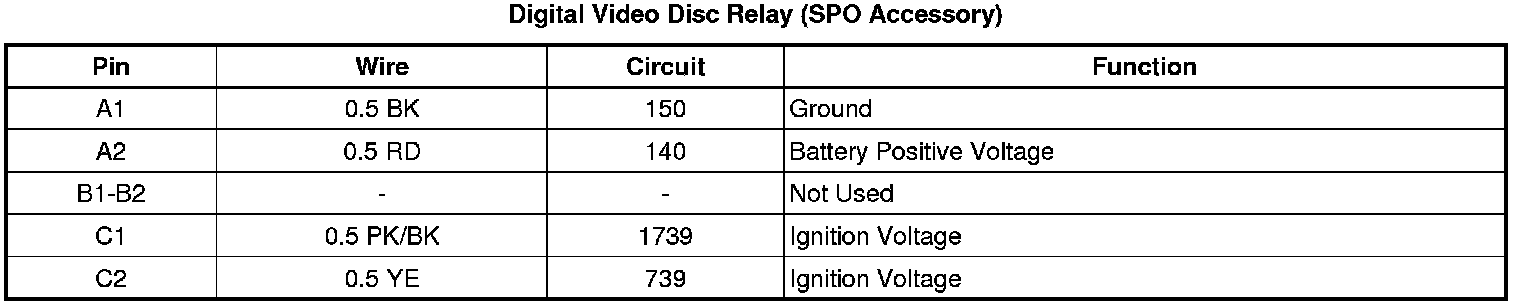

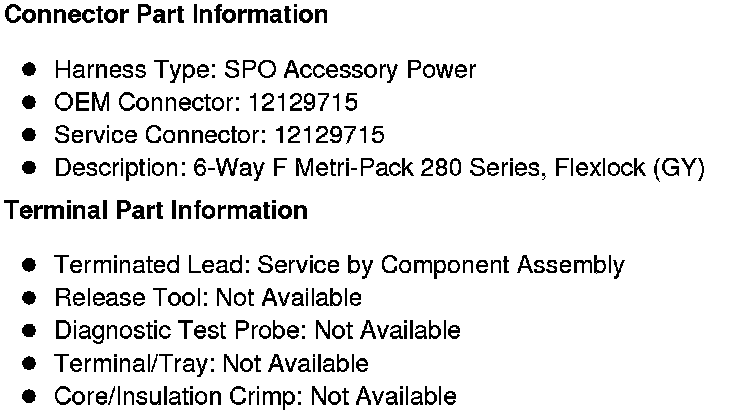

Digital Video Disc Relay (SPO Accessory)
