Headlamp
>>
System Diagram
>>
Headlamp - Left Low Beam (Z88 without TVD)
Headlamp - Left Low Beam (Z88 without TVD)
Component Connector End Views

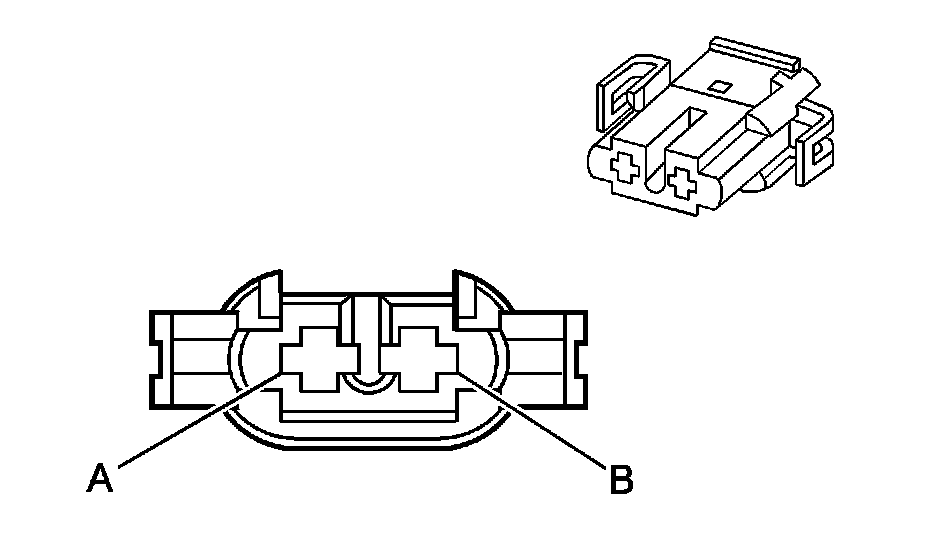

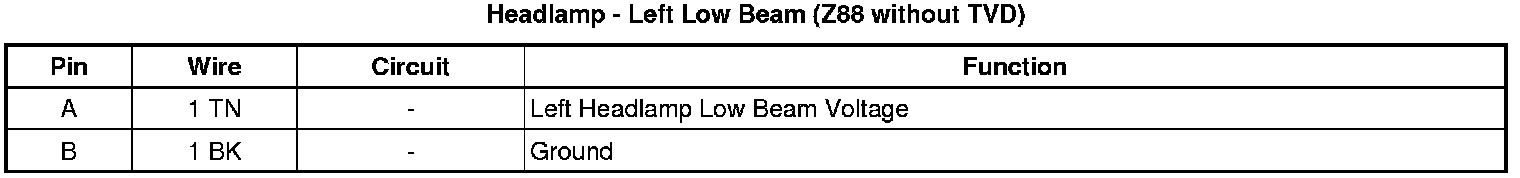

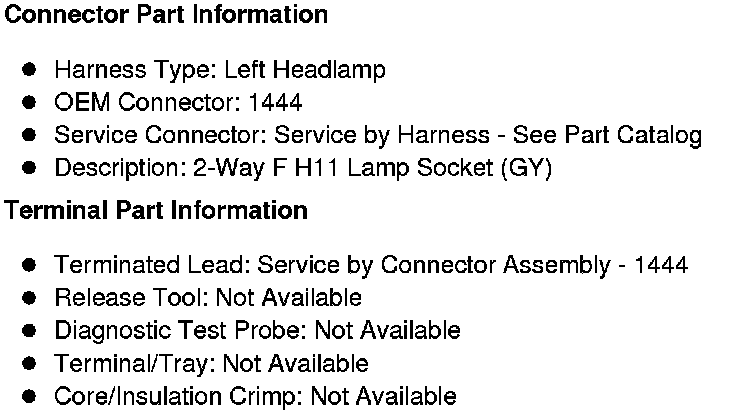

Headlamp - Left Low Beam (Z88 without TVD)
