Tail Lamp Assembly - Right (Z88)
Tail Lamp Assembly - Right (Z88)
Component Connector End Views

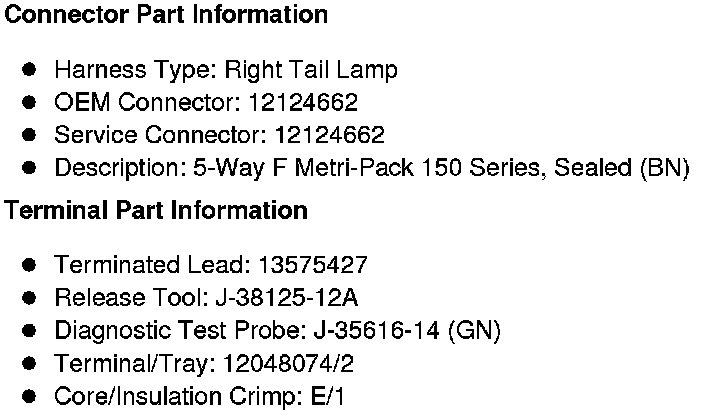

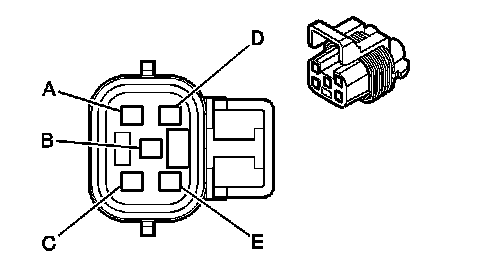

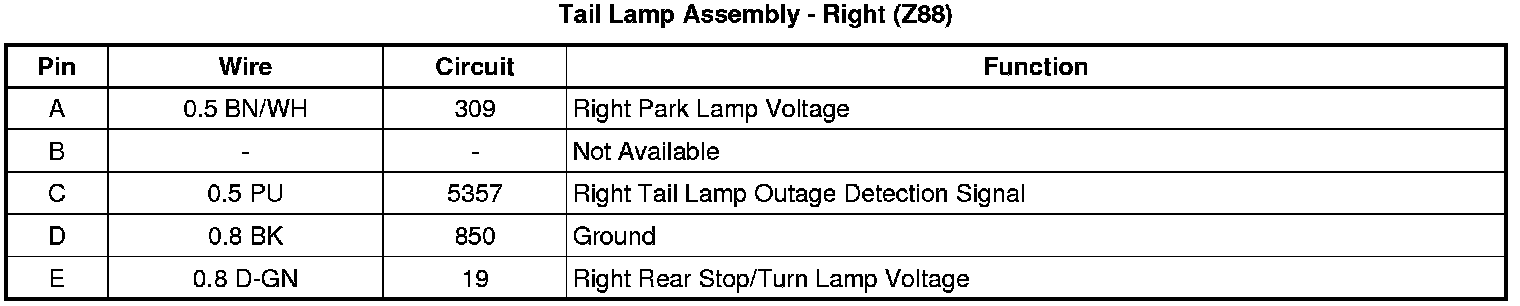

Tail Lamp Assembly - Right (Z88)
