Inflatable Restraint Steering Wheel Module Coil X1
Inflatable Restraint Steering Wheel Module Coil X1
Component Connector End Views

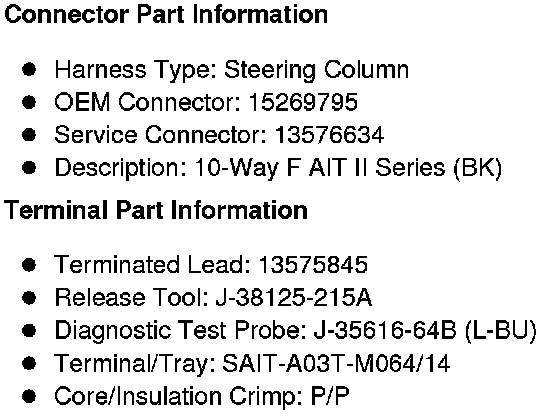

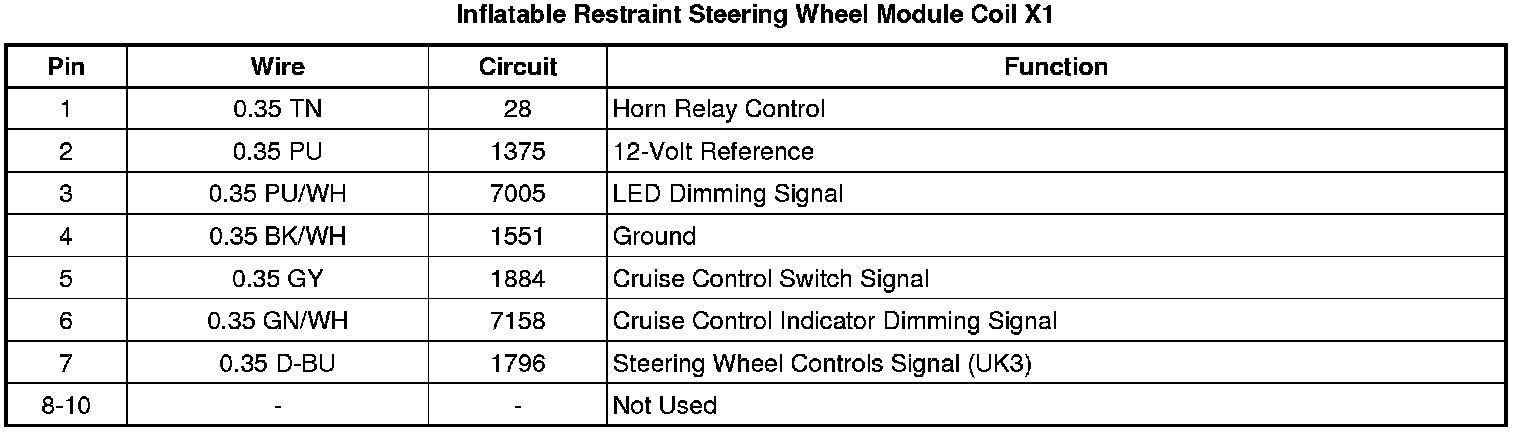

Inflatable Restraint Steering Wheel Module Coil X1
