Daytime Running Lamp (DRL) - Right (W49 or Z88 with T61)
Daytime Running Lamp (DRL) - Right (W49 or Z88 with T61)

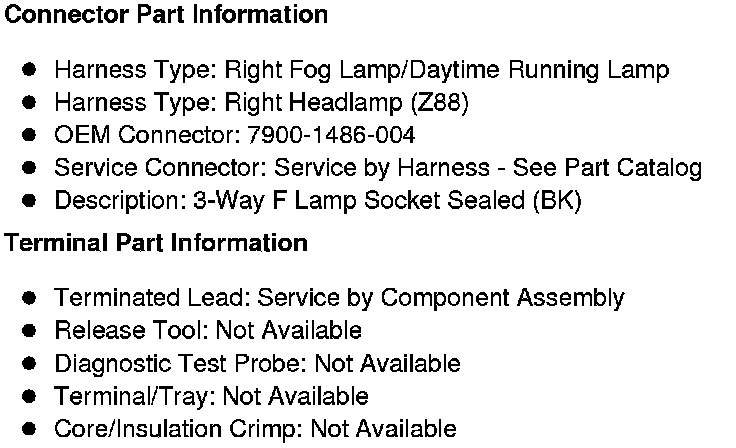

Component Connector End Views

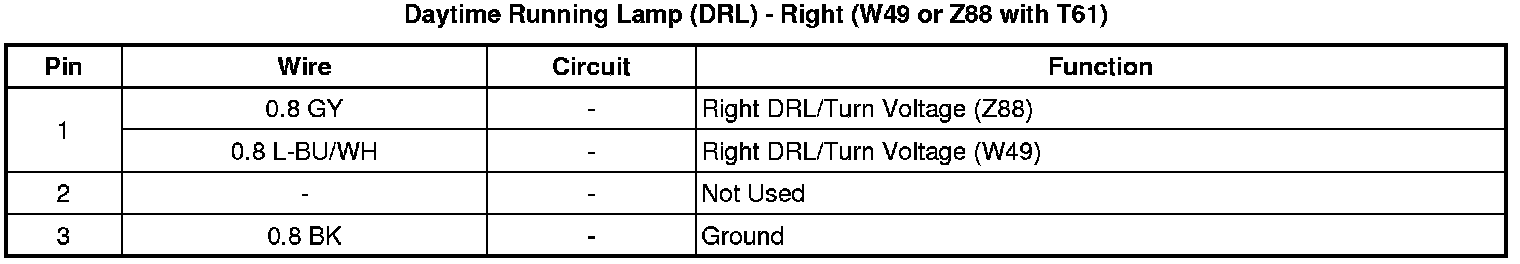

Daytime Running Lamp (DRL) - Right (W49 or Z88 with T61)
