Courtesy/Reading Lamps - 3rd Row
Courtesy/Reading Lamps - 3rd Row
Component Connector End Views

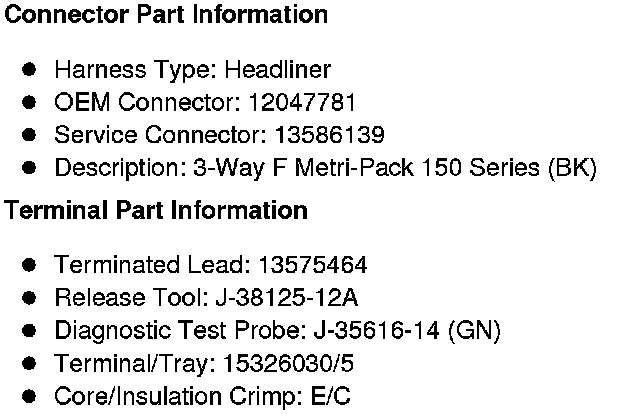

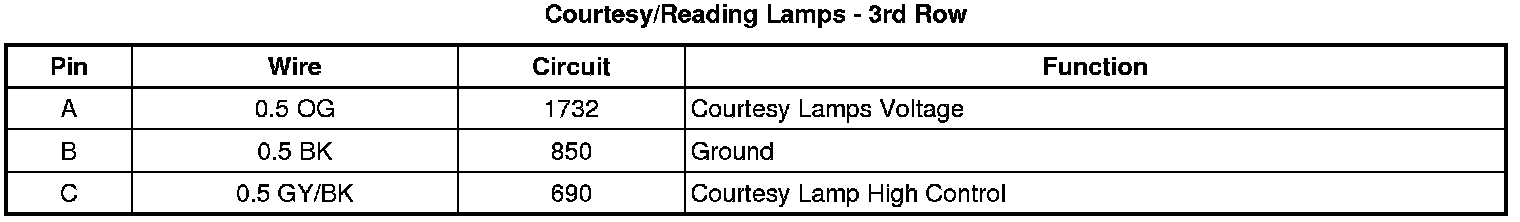

Courtesy/Reading Lamps - 3rd Row
