Digital Video Disc (DVD) Control Module X5 (SPO Accessory)
Digital Video Disc (DVD) Control Module X5 (SPO Accessory)

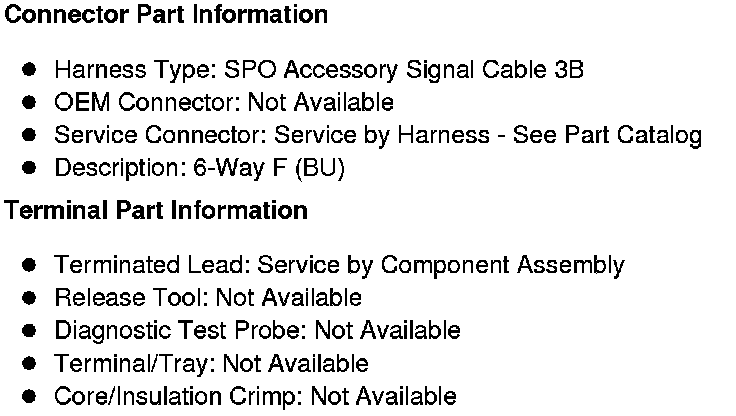

Component Connector End Views

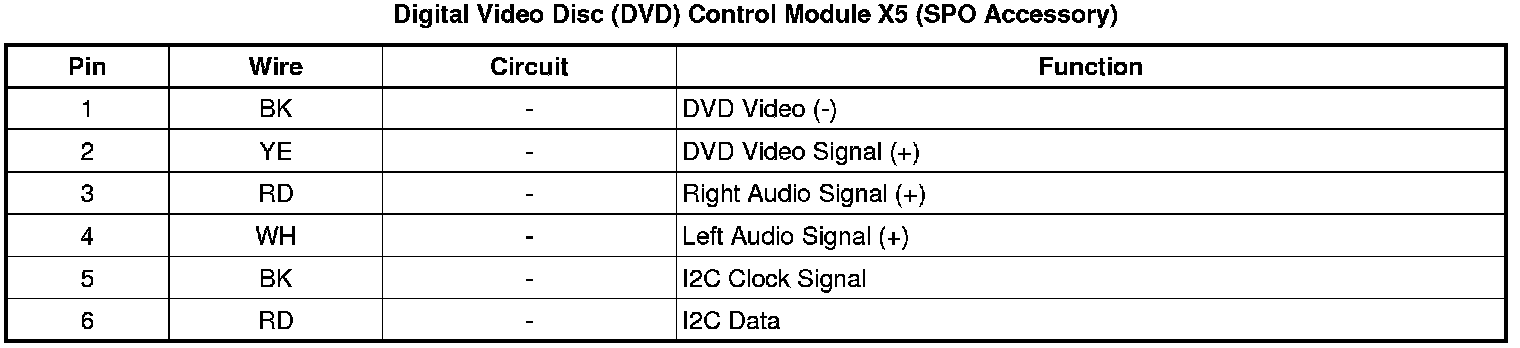

Digital Video Disc (DVD) Control Module X5 (SPO Accessory)
