Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Back >> Service and Repair >> Rear Seat Back Cushion Stowage Latch Actuator Replacement (with 40 Percent Seat)

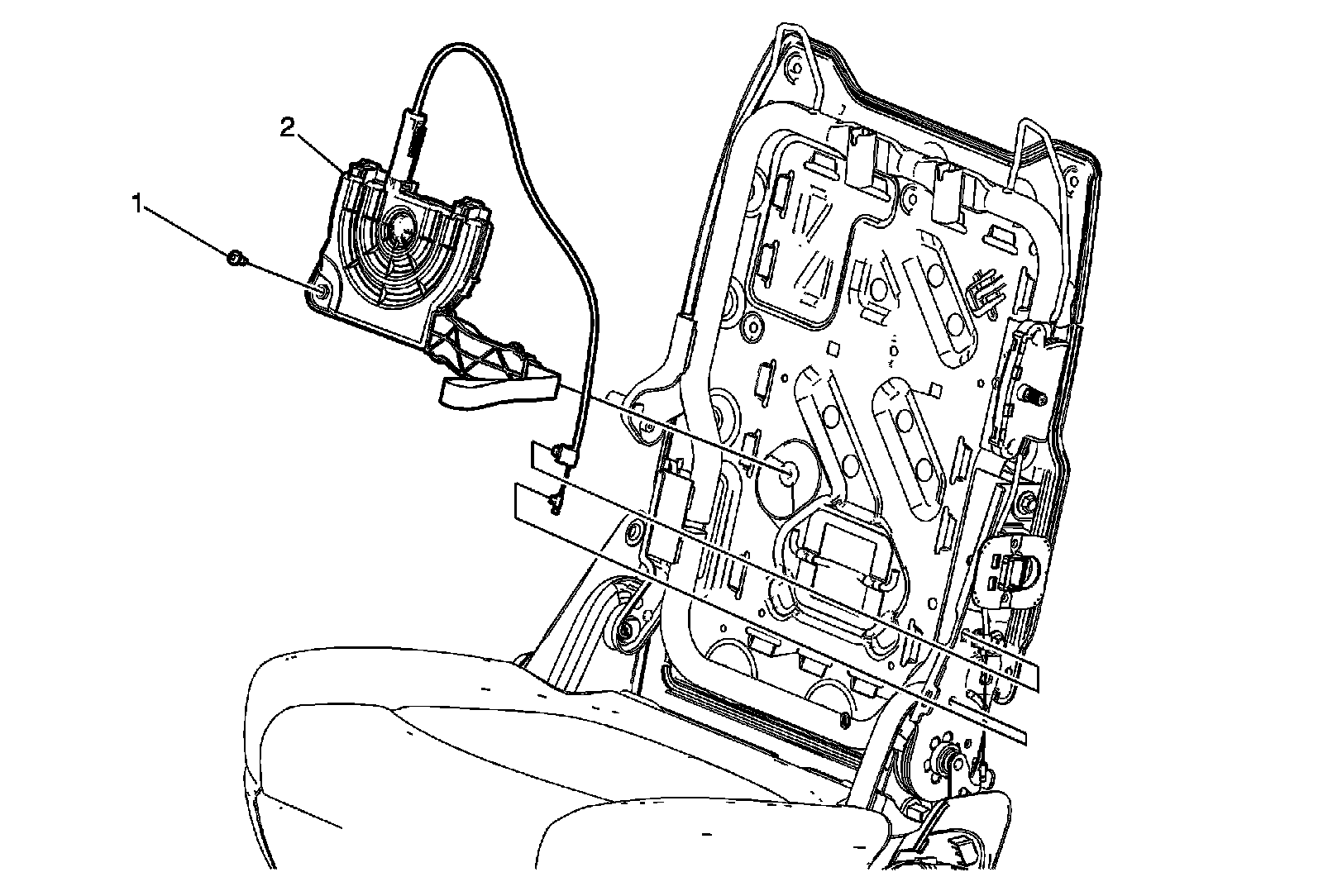

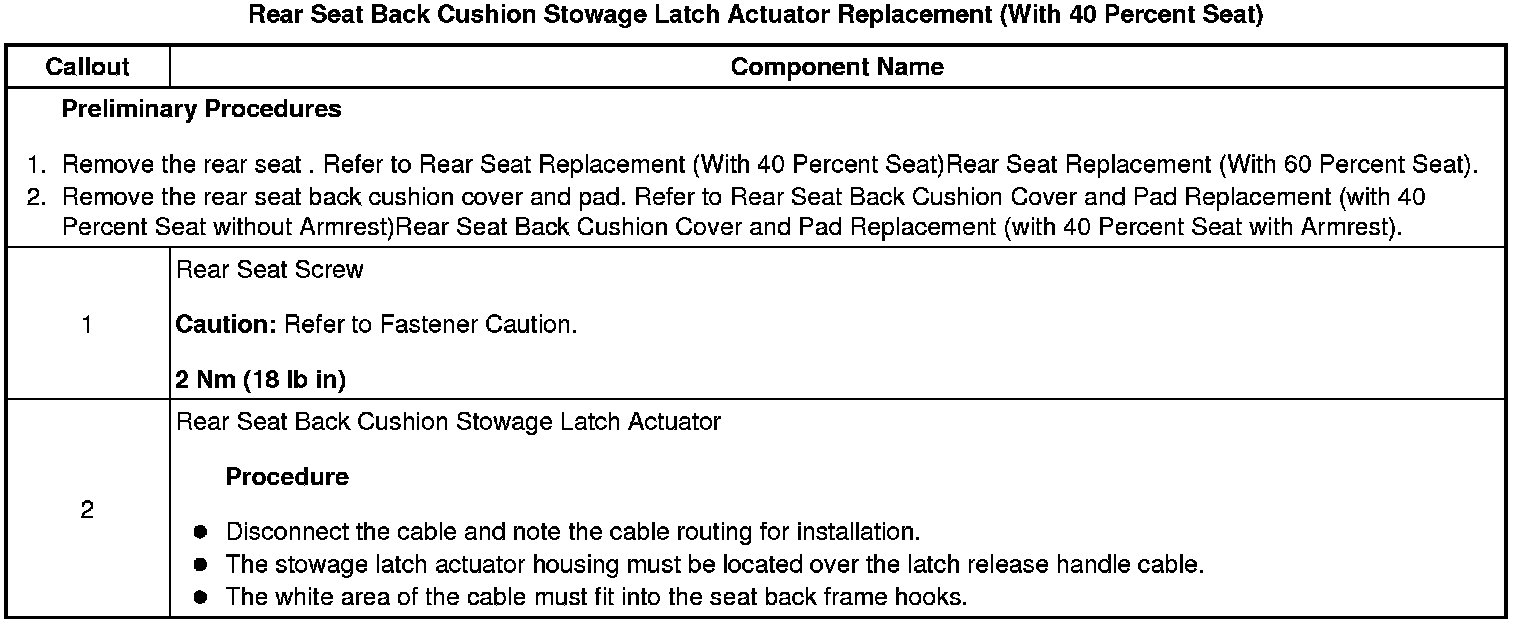

Rear Seat Back Cushion Stowage Latch Actuator Replacement (with 40 Percent Seat)




Rear Seat Back Cushion Stowage Latch Actuator Replacement (With 40 Percent Seat)
