Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Back >> Service and Repair >> Rear Seat Back Cushion Latch Release Handle Replacement (with 60 Percent Seat)

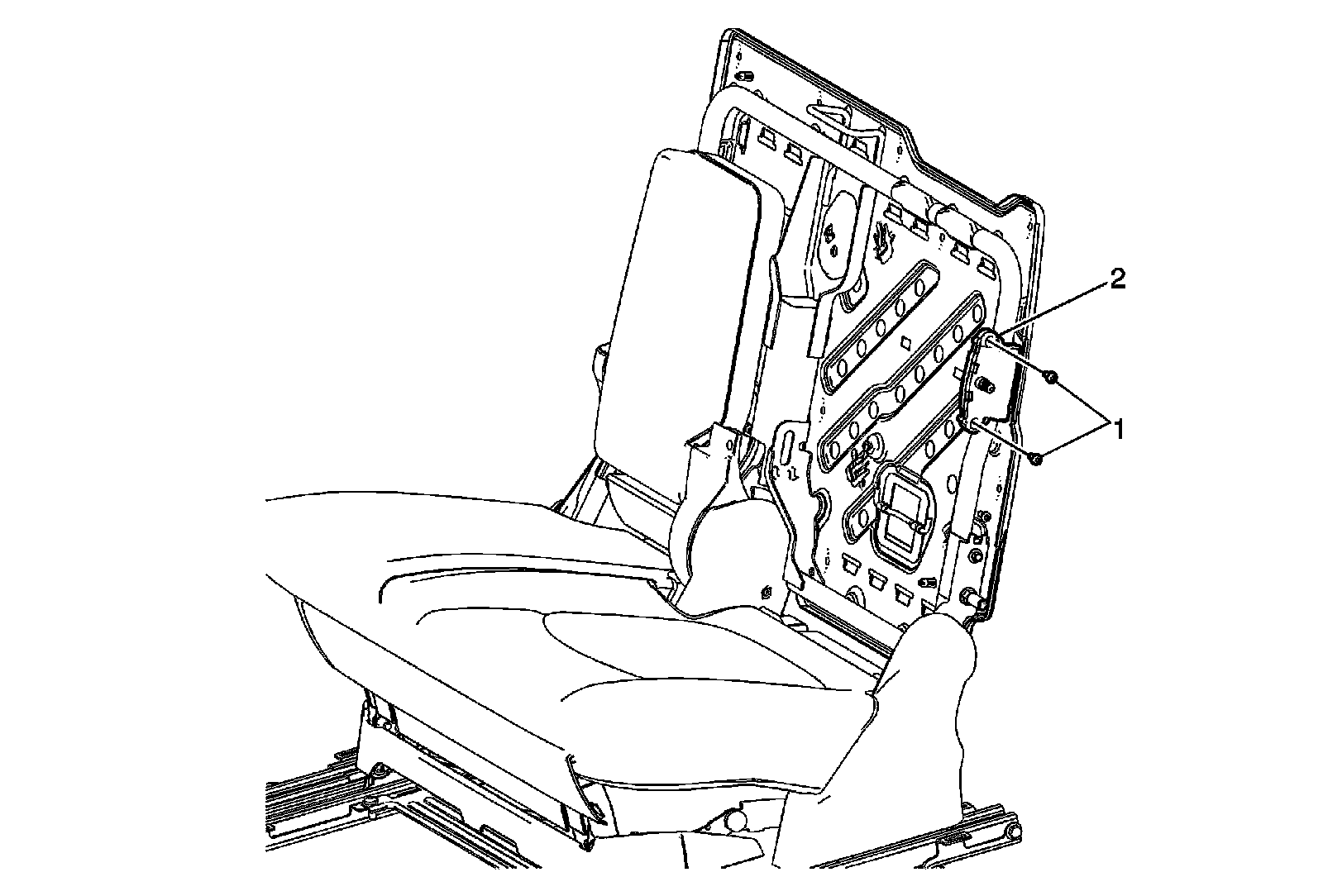

Rear Seat Back Cushion Latch Release Handle Replacement (with 60 Percent Seat)

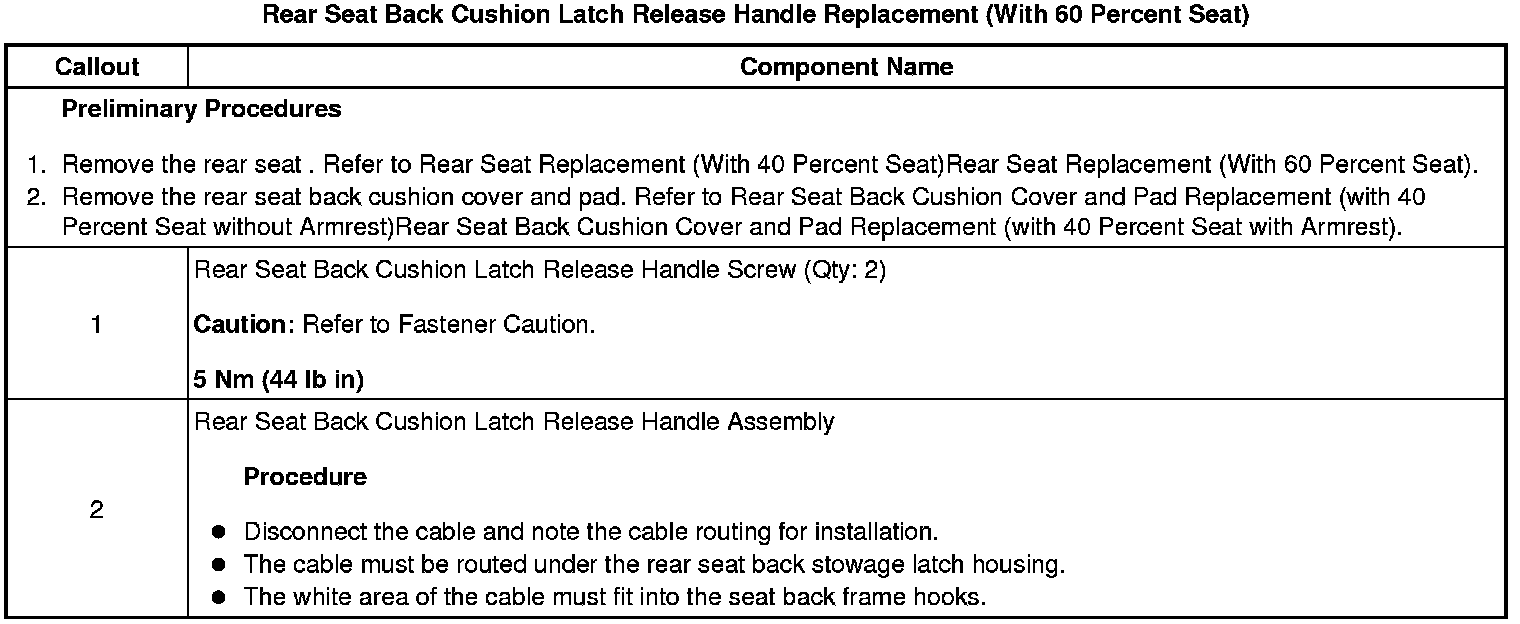

Rear Seat Back Cushion Latch Release Handle Replacement (With 60 Percent Seat)
