Home >> Chevy Truck >> 2012 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Back >> Service and Repair >> Rear Seat Back Cushion Cover and Pad Replacement (with 40 Percent Seat with Armrest)

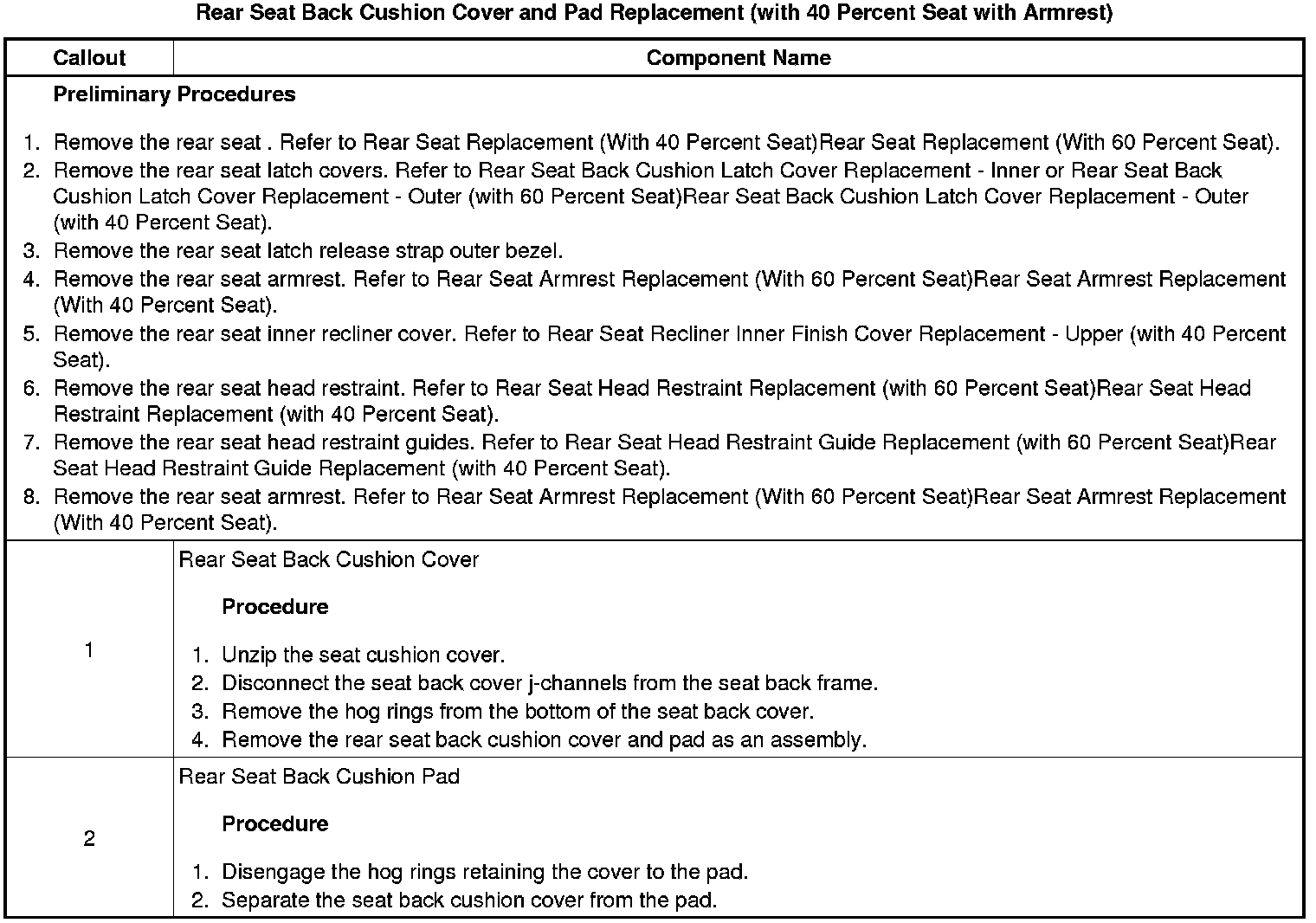

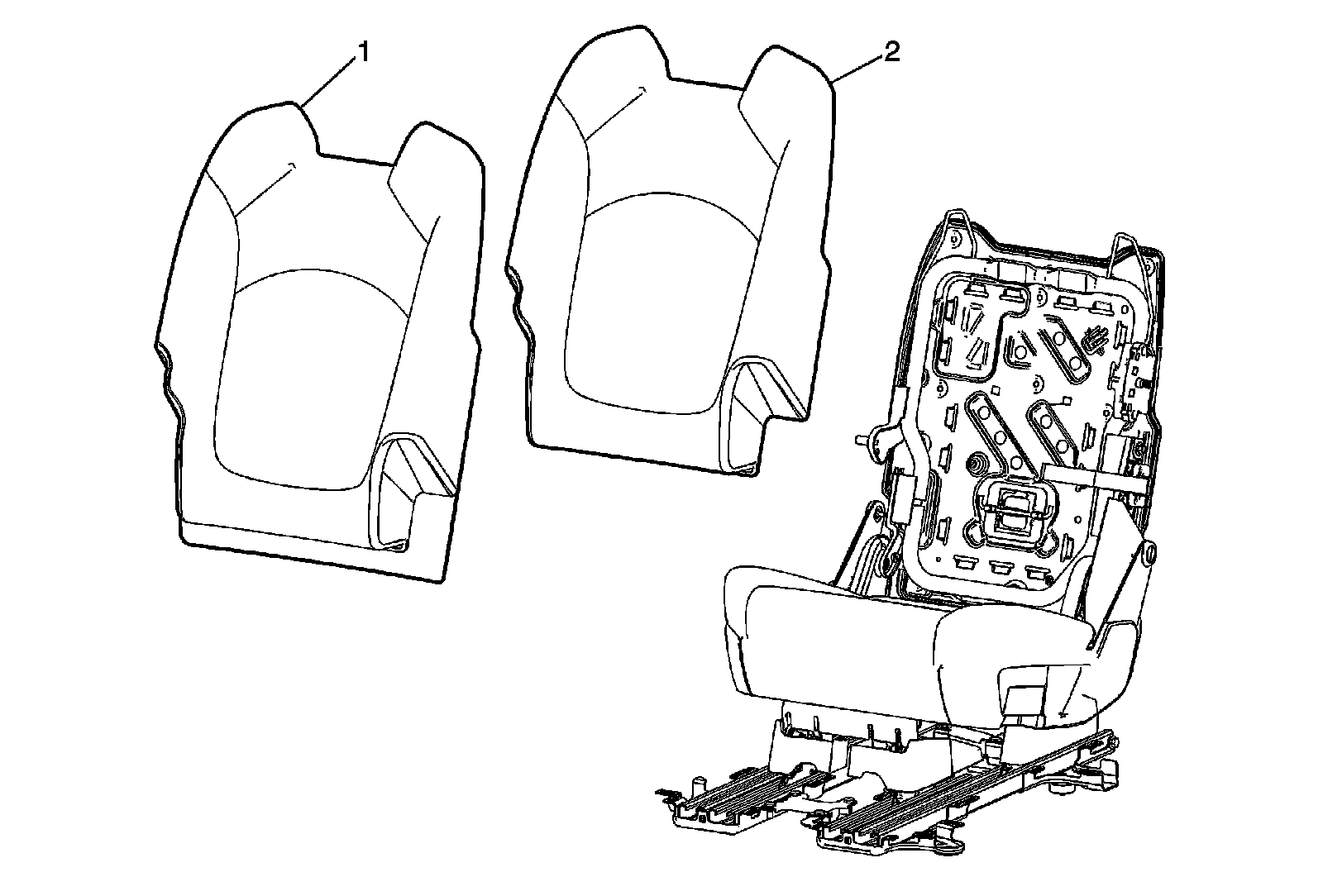

Rear Seat Back Cushion Cover and Pad Replacement (with 40 Percent Seat with Armrest)




Rear Seat Back Cushion Cover and Pad Replacement (with 40 Percent Seat with Armrest)
