Sunroof Sunshade Cable Assembly Replacement

Sunroof Sunshade Cable Assembly Replacement

Removal Procedure

1. Open the sunshade to the full open position.

2. Remove the front sunroof window. Refer to Sunroof Window Replacement Sunroof Window Replacement.

3. Remove the sunshade motor/actuator. Refer to Sunroof Sunshade Motor/Actuator Replacement Sunroof Sunshade Motor/Actuator Replacement.

4. Remove the sunroof frame. Refer to Sunroof Frame Replacement Service and Repair.

5. Place the sunroof frame on a clean and protected surface before removing sunshade and cable/guide.

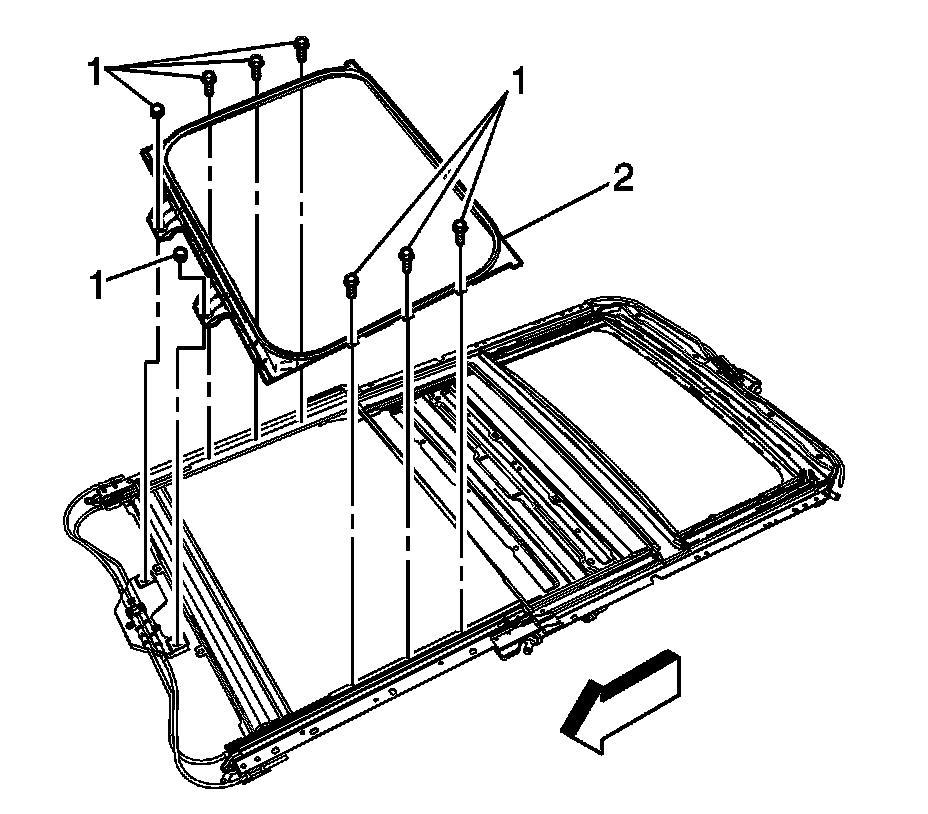

6. Remove the fixed window seal frame screws (1) from the front center, left and right side.

7. Remove the window seal and frame (2) as one from the sunroof frame.

8. Grasping the front left and right corners of the sunshade, roll the sunshade up and lift forward releasing it from the front bar and sunshade cable/guide. Refer to Sunroof Sunshade Replacement (Front Manual) Sunroof Sunshade Replacement (Front Manual).

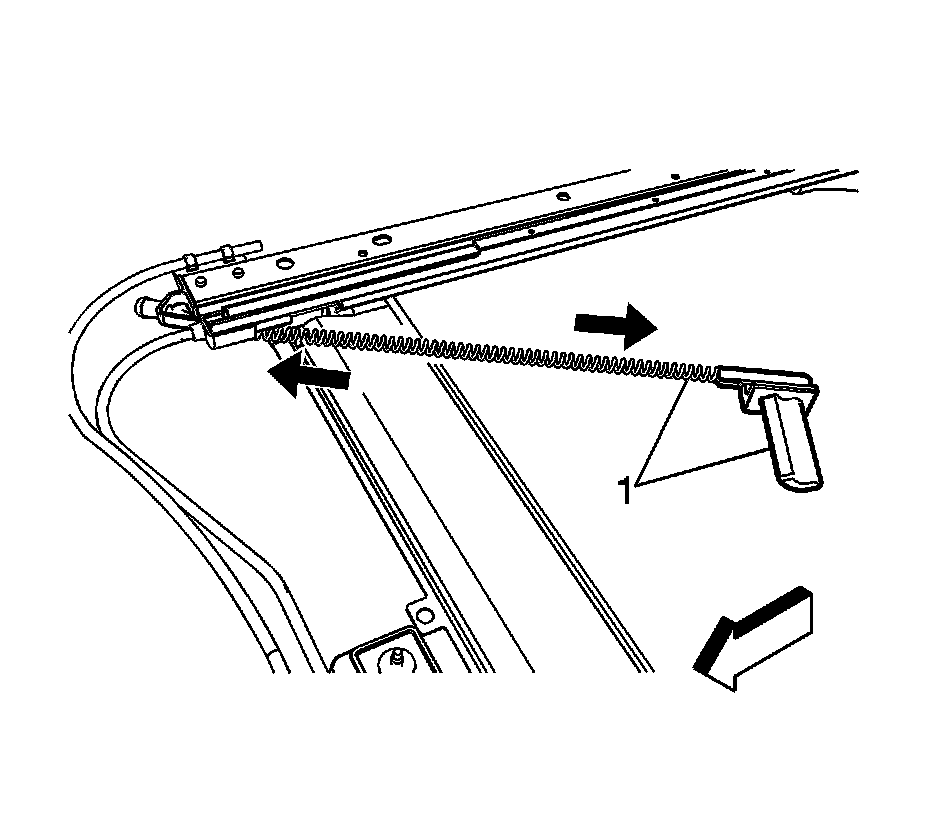

9. Slide the sunshade cable/guide (1) forward on the left and right side to the front stop (2).

10. Lift upward on the end of the sunshade cable/guide (1), releasing it from the front stop (2).





11. Remove cable/guide (1) from the cable tube and track.

Installation Procedure





Note:
After installing the cables/guide in the cable tube and track. The left and right sunshade cables/guides Must be pushed rearward to the full stop position.

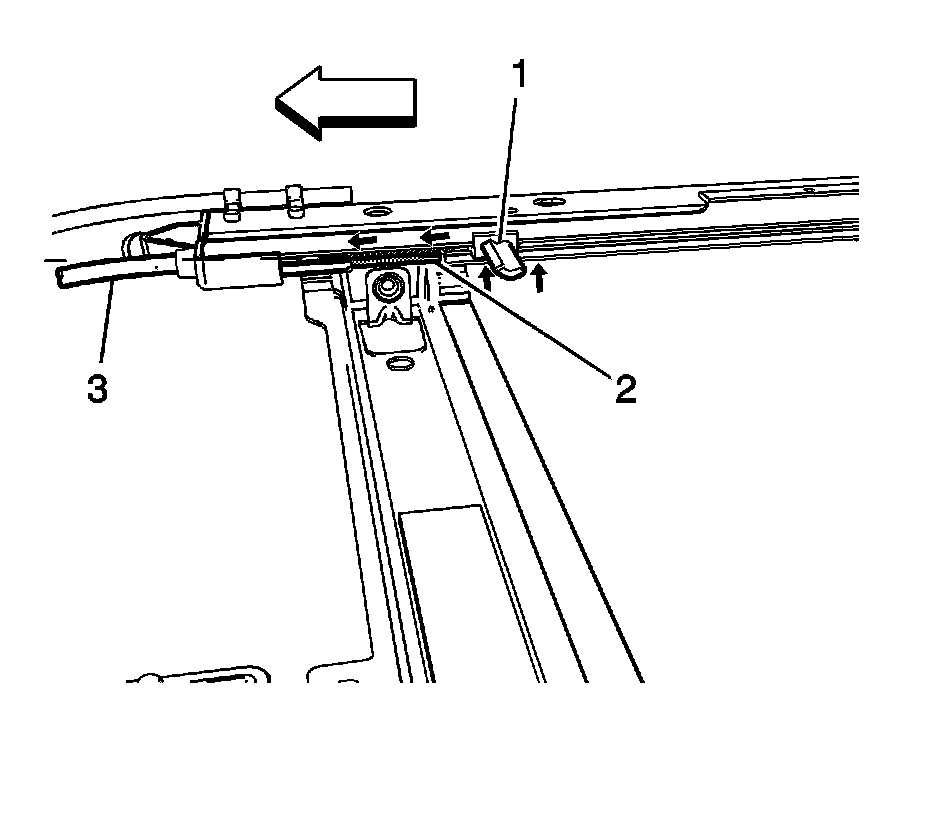

1. Position the cable/guide (1) into the cable tube (3) and tracks (2) with dimpled/depression feature facing upward.

2. Install the sunshade to the cable/guide. Refer to Sunroof Sunshade Replacement (Front Manual) Sunroof Sunshade Replacement (Front Manual)





3. Install the window seal and frame (2) as one to the sunroof frame.

Caution:
Refer to Fastener Caution Fastener Caution.

4. Install the fixed window seal frame screws (1) to the front center, left and right side.

Tighten the screws to 5 Nm (44 lb in).

5. Install the sunroof frame. Refer to Sunroof Frame Replacement Service and Repair.

Note:
The left and right sunshade cables/guides Must be pushed rearward to the full stop position before installing the motor.

6. Install the sunshade motor/actuator. Refer to Sunroof Sunshade Motor/Actuator Replacement Sunroof Sunshade Motor/Actuator Replacement.

7. Ensure that the initialization/teach process is done before the sunroof window is installed. Refer to Sunroof Motor/Actuator Initialization/Teach Process (New Motor) Sunroof Motor/Actuator Initialization/Teach Process (New Motor)Sunroof Motor/Actuator Initialization/Teach Process (Existing Motor) Sunroof Motor/Actuator Initialization/Teach Process (Existing Motor)Sunroof Motor/Actuator Initialization/Teach Process (New Roller Sunshade) Sunroof Motor/Actuator Initialization/Teach Process (New Roller Sunshade)Sunroof Motor/Actuator Initialization/Teach Process (Existing Roller Sunshade) Sunroof Motor/Actuator Initialization/Teach Process (Existing Roller Sunshade).

8. Install the front sunroof window. Refer to Sunroof Window Replacement Sunroof Window Replacement.

9. Inspect the sunroof and sunshade for proper operation.
