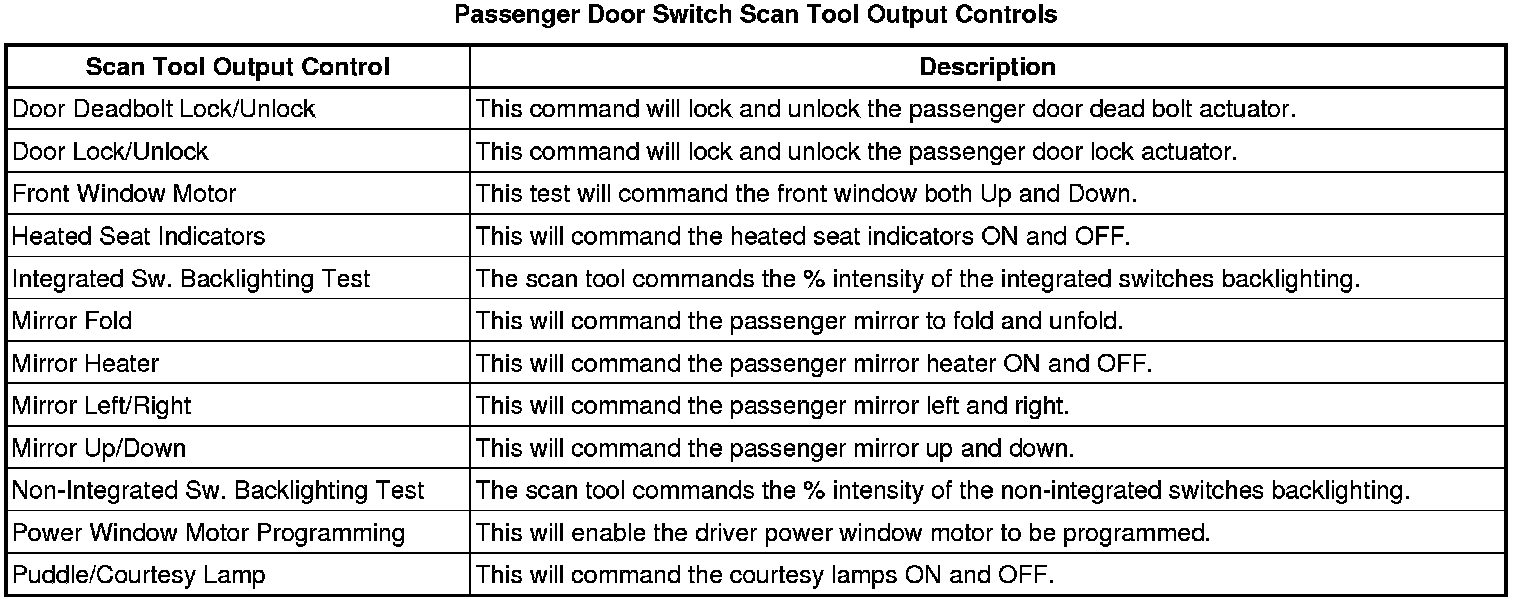

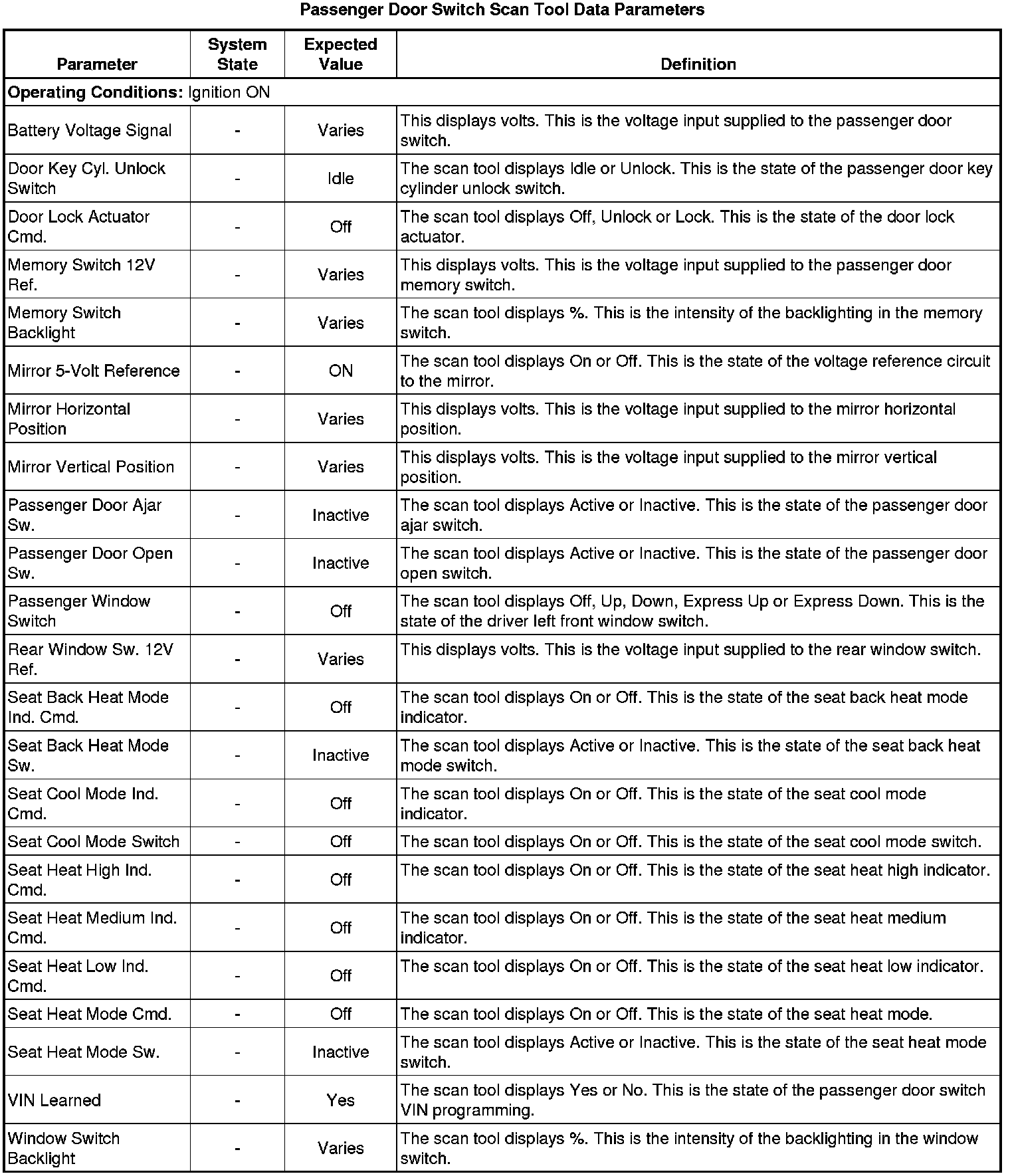

Door Lock Control Module Scan Tool Information (Passenger Door Switch)
Door Lock Control Module Scan Tool Information (Passenger Door Switch)
Door Lock Control Module Scan Tool Information (Passenger Door Switch)
